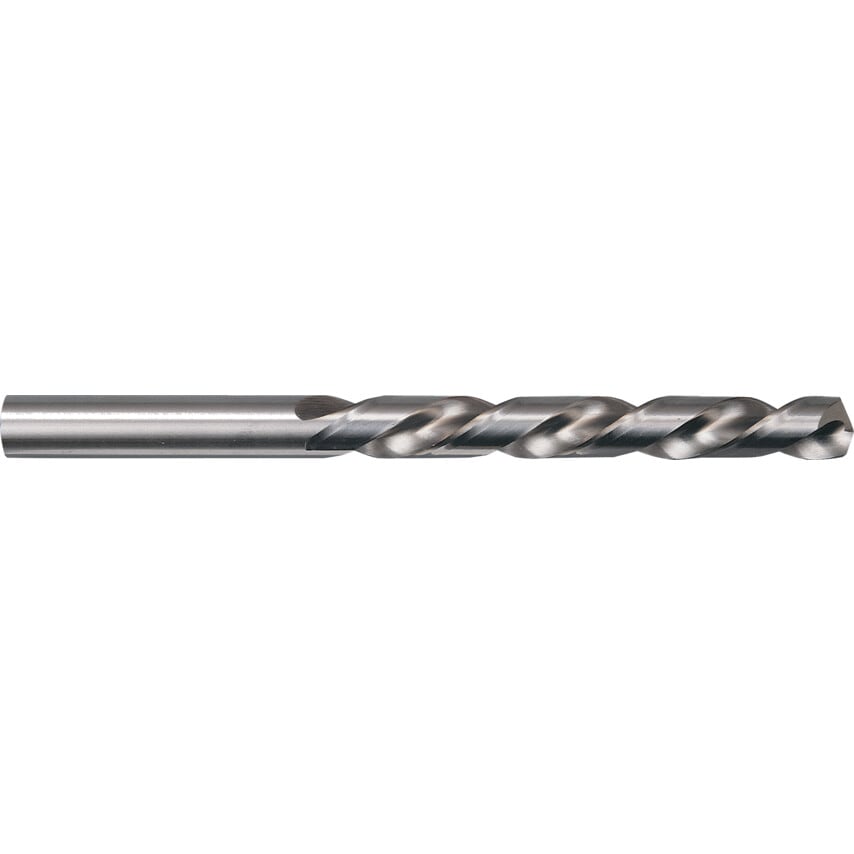

Series 605 HSS-Co Straight Shank Jobber Drills are constructed using a rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels.
Features and Benefits
High speed steel construction
High-heat resistance with large helix angle of 35
Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels
Standards
Manufactured to DIN338
Typical Applications
Drilling
Metals
Titanium
Titanium alloys
Stainless steels
Heat resistant steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| Coolant Delivery | External |
| Point Type | Split Point |
| Shank Diameter Tolerance | H8 |
| Helix Angle | 35\u00b0 |
| MFR Part No. | 00605 005.800 |
| Helix Type | High Helix |
| Flute Length | 57mm |
| Diameter | 5.8mm |
| Flute Construction | Ground flutes |
| Drill Diameter Metric | 5.8mm |
| Type | HSCo |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Material | Cobalt High Speed Steel |
| Drill Diameter Tolerance | H8 |
| Standards Met | DIN 338 |
| Product Type | Jobber Drills |
| Overall Length | 93mm |
| Point Angle | 130\u00b0 |
| Drill Diameter | 5.8mm |
| Flute Type | Spiral |
| Series | 605 |
| Finish/Coating | Bright |
| Size | 5.8mm |
