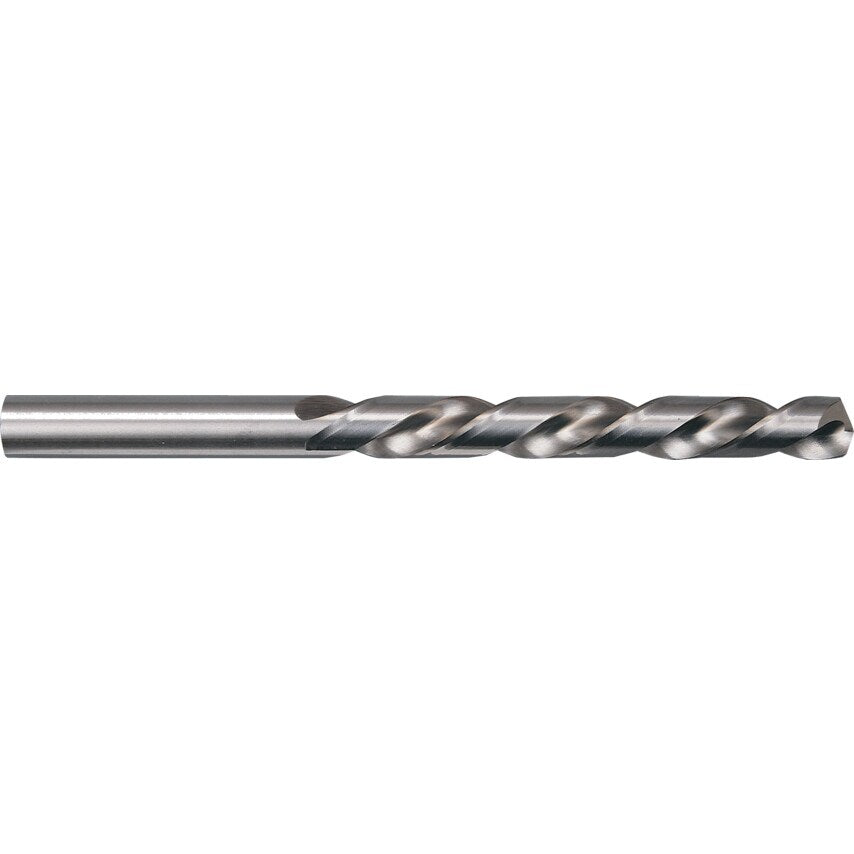

Series 605 HSS-Co Straight Shank Jobber Drills are constructed using a rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels.
Features and Benefits
High speed steel construction
High-heat resistance with large helix angle of 35
Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels
Standards
Manufactured to DIN338
Typical Applications
Drilling
Metals
Titanium
Titanium alloys
Stainless steels
Heat resistant steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| Drill Diameter Tolerance | H8 |
| Point Type | Split Point |
| Flute Construction | Ground flutes |
| Size | 5.3mm |
| Helix Type | High Helix |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Diameter | 5.3mm |
| Finish/Coating | Uncoated |
| Series | 605 |
| Standards Met | DIN 338 |
| MFR Part No. | 00605 005.300 |
| Flute Length | 52mm |
| Overall Length | 86mm |
| Product Type | Jobber Drills |
| Material | Cobalt High Speed Steel |
| Number of Flutes | 2 |
| Coolant Delivery | External |
| Point Angle | 130\u00b0 |
| Drill Diameter Metric | 5.3mm |
| Drill Diameter | 5.3mm |
