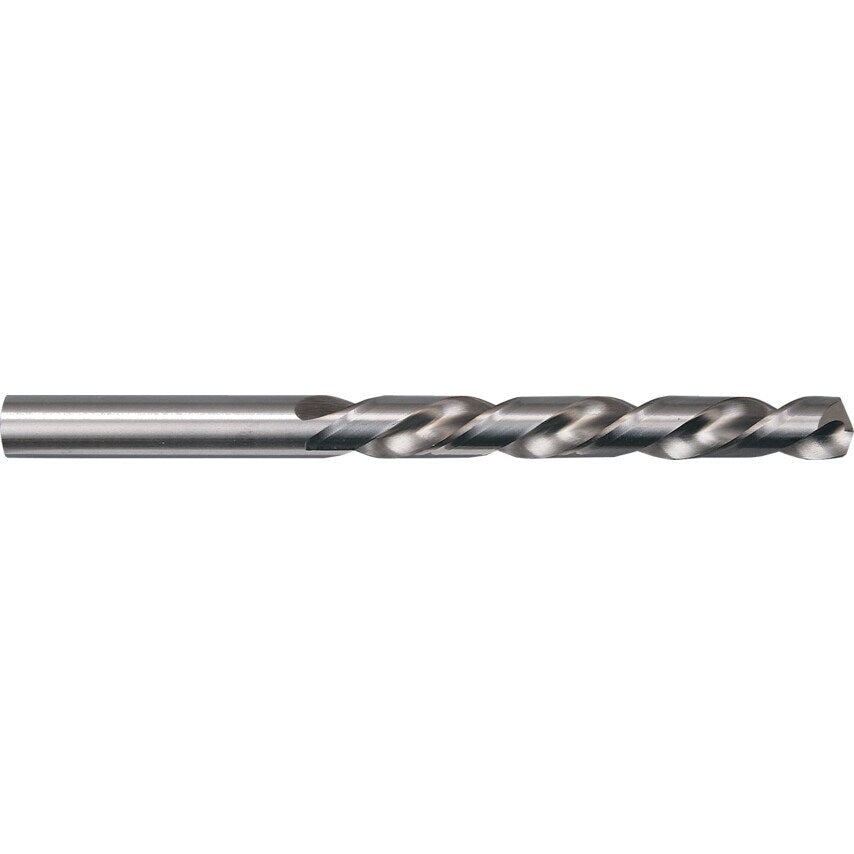

Series 605 HSS-Co Straight Shank Jobber Drills are constructed using a rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels.
Features and Benefits
High speed steel construction
High-heat resistance with large helix angle of 35
Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels
Standards
Manufactured to DIN338
Typical Applications
Drilling
Metals
Titanium
Titanium alloys
Stainless steels
Heat resistant steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| Coolant Delivery | External |
| Product Type | Jobber Drills |
| Finish/Coating | Uncoated |
| Number of Flutes | 2 |
| Overall Length | 43mm |
| Drill Diameter | 1.65mm |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length | 20mm |
| Helix Type | High Helix |
| Point Angle | 130\u00b0 |
| Drill Diameter Metric | 1.65mm |
| Point Type | Split Point |
| Size | 1.65mm |
| Type | HSCo |
| MFR Part No. | 00605 001.650 |
| Standards Met | DIN 338 |
| Flute Construction | Ground flutes |
| Series | 605 |
| Drill Diameter Tolerance | H8 |
| Material | Cobalt High Speed Steel |
