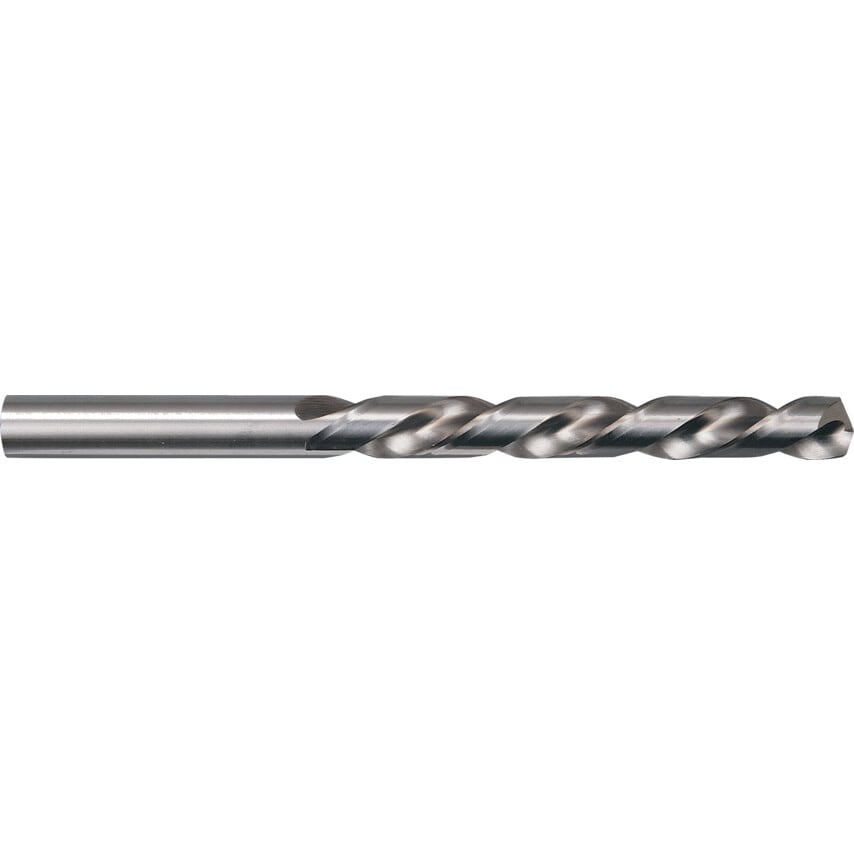

Series 605 HSS-Co Straight Shank Jobber Drills are constructed using a rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels.
Features and Benefits
High speed steel construction
High-heat resistance with large helix angle of 35
Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels
Standards
Manufactured to DIN338
Typical Applications
Drilling
Metals
Titanium
Titanium alloys
Stainless steels
Heat resistant steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| Helix Angle | 35\u00b0 |
| Type | HSCo |
| Diameter | 6.8mm |
| Standards Met | DIN 338 |
| Point Type | Split Point |
| Overall Length | 109mm |
| Flute Type | Spiral |
| Helix Type | High Helix |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | H8 |
| MFR Part No. | 00605 006.800 |
| Product Type | Jobber Drills |
| Flute Length | 69mm |
| Finish/Coating | Bright |
| Point Angle | 130\u00b0 |
| Material | Cobalt High Speed Steel |
| Drill Diameter | 6.8mm |
| Drill Diameter Metric | 6.8mm |
| Shank Diameter Tolerance | H8 |
| Coolant Delivery | External |
| Flute Construction | Ground flutes |
| Series | 605 |
| Size | 6.8mm |
