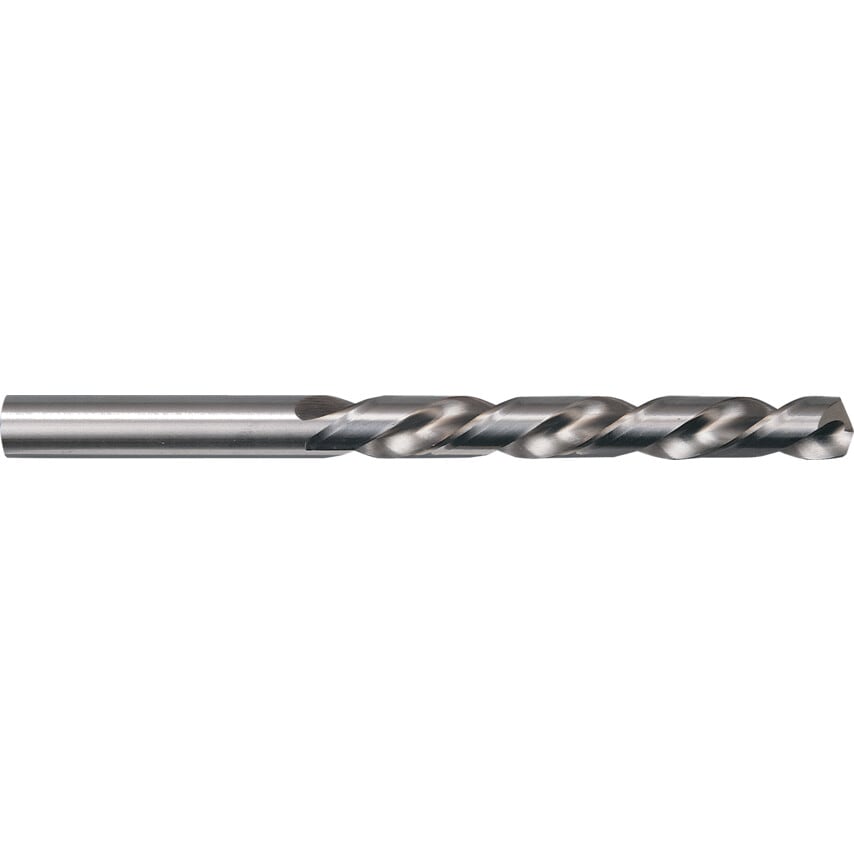

Series 605 HSS-Co Straight Shank Jobber Drills are constructed using a rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels.
Features and Benefits
High speed steel construction
High-heat resistance with large helix angle of 35
Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels
Standards
Manufactured to DIN338
Typical Applications
Drilling
Metals
Titanium
Titanium alloys
Stainless steels
Heat resistant steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| Flute Type | Spiral |
| Point Angle | 130\u00b0 |
| Size | 4.4mm |
| Drill Diameter Tolerance | H8 |
| Product Type | Jobber Drills |
| Number of Flutes | 2 |
| Helix Type | High Helix |
| Type | HSCo |
| Series | 605 |
| Shank Diameter Tolerance | H8 |
| Coolant Delivery | External |
| Helix Angle | 35\u00b0 |
| Diameter | 4.4mm |
| Standards Met | DIN 338 |
| Finish/Coating | Bright |
| Drill Diameter | 4.4mm |
| Cutting Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| Overall Length | 80mm |
| Flute Construction | Ground flutes |
| Point Type | Split Point |
| Drill Diameter Metric | 4.4mm |
| MFR Part No. | 00605 004.400 |
| Flute Length | 47mm |
