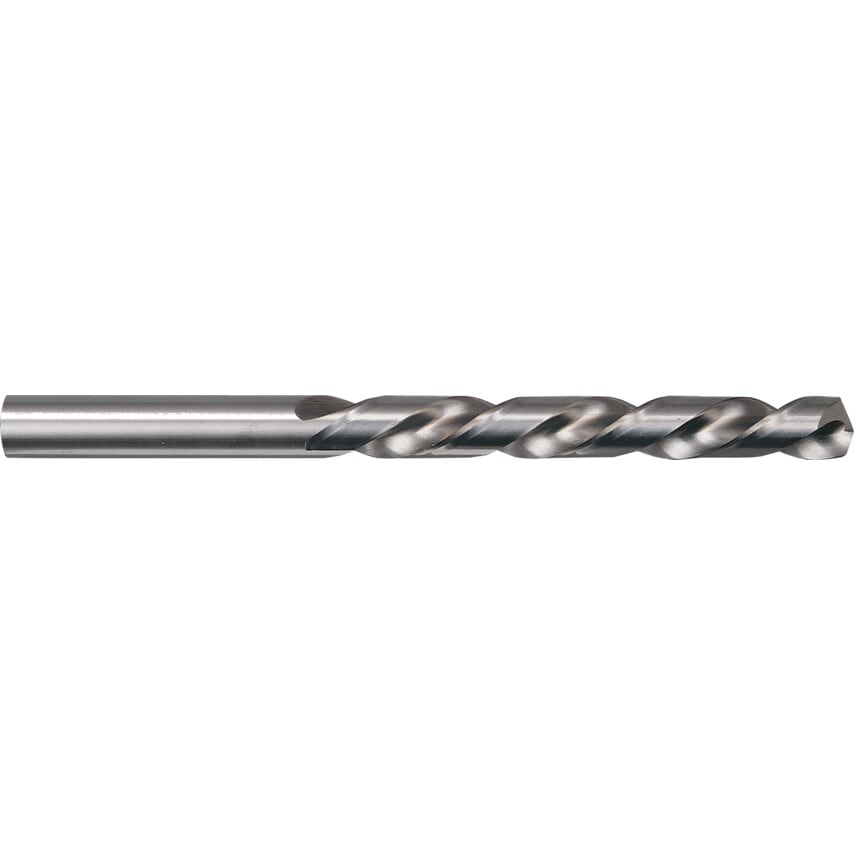

Series 605 HSS-Co Straight Shank Jobber Drills are constructed using a rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels.
Features and Benefits
High speed steel construction
High-heat resistance with large helix angle of 35
Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels
Standards
Manufactured to DIN338
Typical Applications
Drilling
Metals
Titanium
Titanium alloys
Stainless steels
Heat resistant steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| Point Angle | 130\u00b0 |
| Standards Met | DIN 338 |
| Overall Length | 61mm |
| Type | HSCo |
| Helix Type | High Helix |
| Number of Flutes | 2 |
| Diameter | 2.9mm |
| Drill Diameter | 2.9mm |
| Coolant Delivery | External |
| Helix Angle | 35\u00b0 |
| Cutting Direction | Right Hand |
| Product Type | Jobber Drills |
| Flute Length | 33mm |
| Finish/Coating | Bright |
| Point Type | Split Point |
| Material | Cobalt High Speed Steel |
| Shank Diameter Tolerance | H8 |
| Flute Type | Spiral |
| Drill Diameter Tolerance | H8 |
| Size | 2.9mm |
| Flute Construction | Ground flutes |
| Series | 605 |
| MFR Part No. | 00605 002.900 |
| Drill Diameter Metric | 2.9mm |
