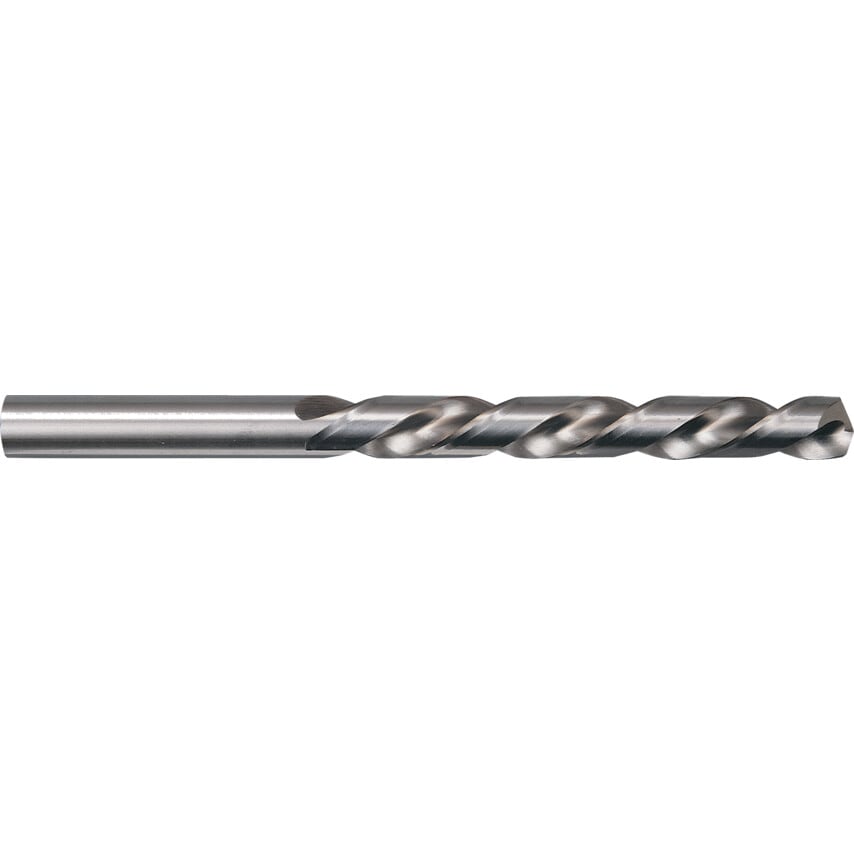

Series 605 HSS-Co Straight Shank Jobber Drills are constructed using a rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels.
Features and Benefits
High speed steel construction
High-heat resistance with large helix angle of 35
Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels
Standards
Manufactured to DIN338
Typical Applications
Drilling
Metals
Titanium
Titanium alloys
Stainless steels
Heat resistant steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| Series | 605 |
| Flute Length | 57mm |
| Diameter | 5.75mm |
| Shank Diameter Tolerance | F11 |
| Flute Construction | Ground flutes |
| Product Type | Jobber Drills |
| Type | HSCo |
| Web Thickness | Similar to Form C |
| Finish/Coating | Bright |
| Drill Diameter Metric | 5.75mm |
| Helix Type | High Helix |
| Drill Diameter | 5.75mm |
| Coolant Delivery | External |
| Point Angle | 130\u00b0 |
| Flute Type | Spiral |
| Point Type | Conventional |
| Cutting Direction | Right Hand |
| MFR Part No. | 00605 005.750 |
| Size | 5.75mm |
| Standards Met | DIN 338 |
| Number of Flutes | 2 |
| Material | Cobalt High Speed Steel |
| Drill Diameter Tolerance | H8 |
| Overall Length | 93mm |
