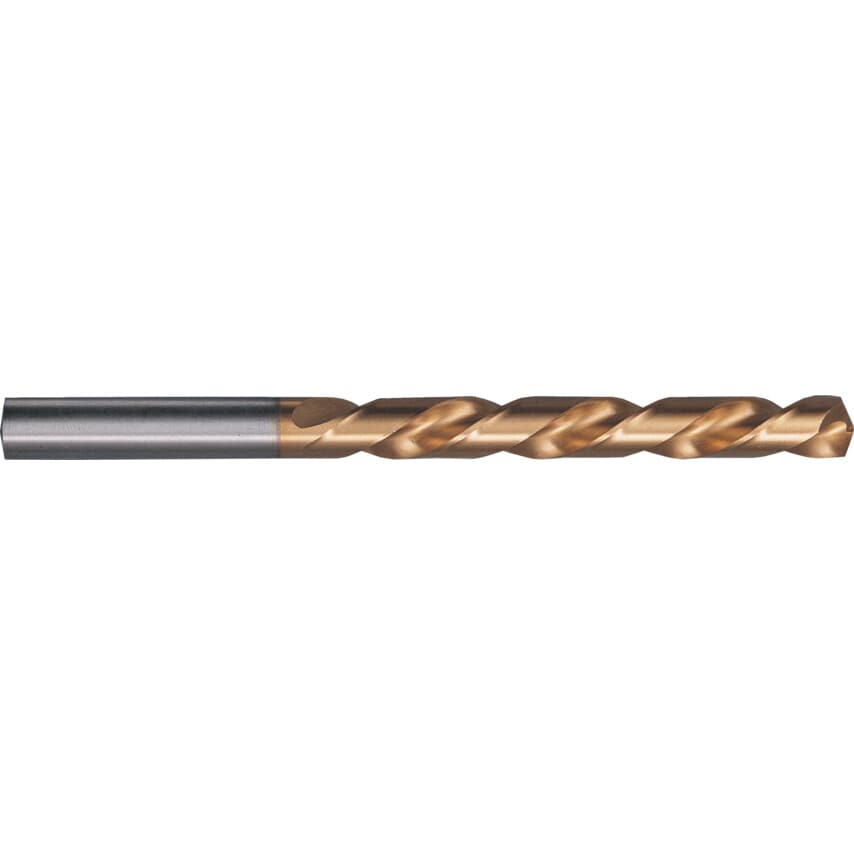

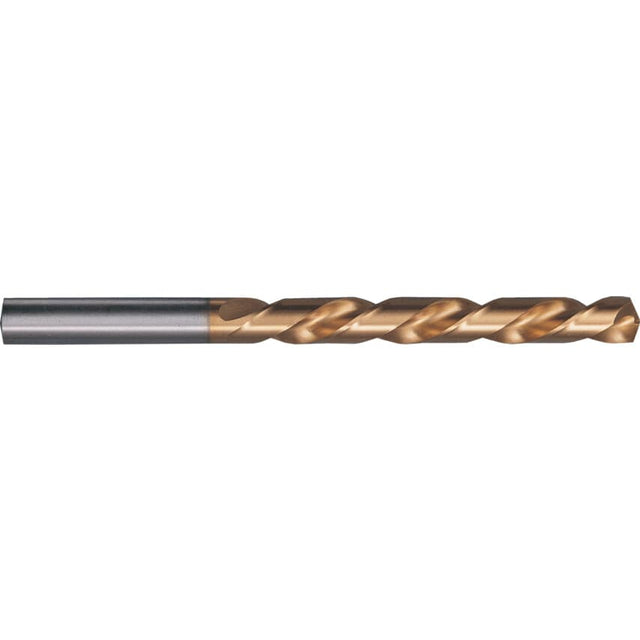

Series 657 HSS-Co Straight Shank Jobber Drills
TiN Coated - Metric
Rigid, high heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels. TiN coated gives greater wear resistance and longer tool life. Limited suitability for special alloys such as Hastelloy, Inconel, Nimonic etc. Manufactured to DIN338.
| Product Type | Jobber Drills |
| Point Angle | 130\u00b0 |
| Flute Type | Spiral |
| Drill Diameter Tolerance | H8 |
| Diameter | 1.0mm |
| Helix Type | High Helix |
| Standards Met | DIN 338 |
| Web Thickness | Similar to Form C |
| Shank Diameter Tolerance | F11 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Size | 1mm |
| Overall Length | 34mm |
| Flute Construction | Ground flutes |
| Series | 657 |
| Flute Length | 12mm |
| Point Type | Conventional |
| Coolant Delivery | External |
| Material | Cobalt High Speed Steel |
| Drill Diameter Metric | 1mm |
| Finish/Coating | TiN |
| Drill Diameter | 1mm |
| MFR Part No. | 00657 001.000 |
