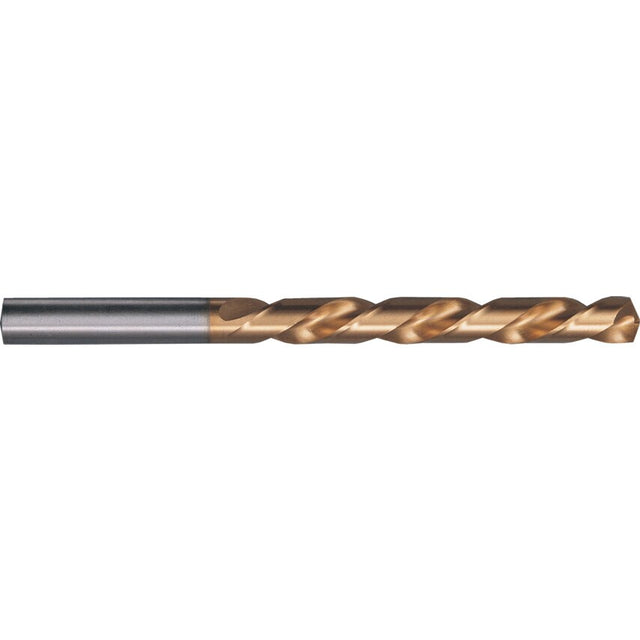

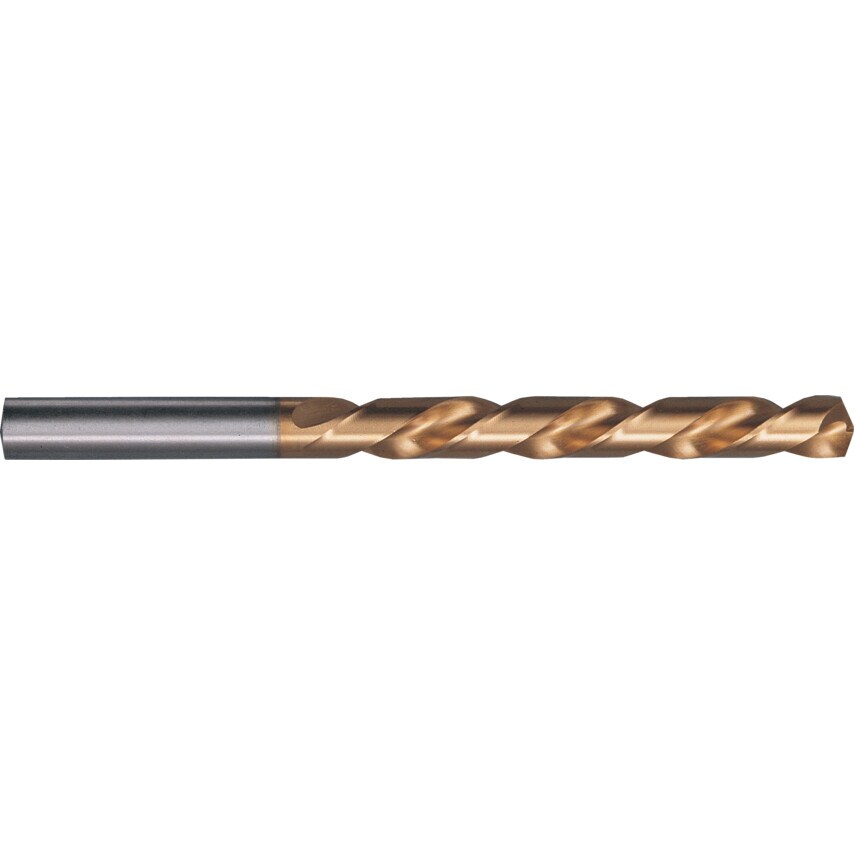

Series 657 HSS-Co Straight Shank Jobber Drills
TiN Coated - Metric
Rigid, high heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels. TiN coated gives greater wear resistance and longer tool life. Limited suitability for special alloys such as Hastelloy, Inconel, Nimonic etc. Manufactured to DIN338.
| Finish/Coating | TiN |
| Drill Diameter Metric | 6.3mm |
| Coolant Delivery | External |
| Product Type | Jobber Drills |
| Point Angle | 130\u00b0 |
| Point Type | Split Point |
| MFR Part No. | 00657 006.300 |
| Diameter | 6.3mm |
| Helix Type | Normal Helix |
| Shank Type | Straight |
| Flute Length | 63mm |
| Size | 6.3mm |
| Number of Flutes | 2 |
| Drill Diameter | 6.3mm |
| Material | Cobalt High Speed Steel |
| Standards Met | DIN338 |
| Series | 657 |
| Flute Construction | Ground flutes |
| Overall Length | 101mm |
| Cutting Direction | Right Hand |
