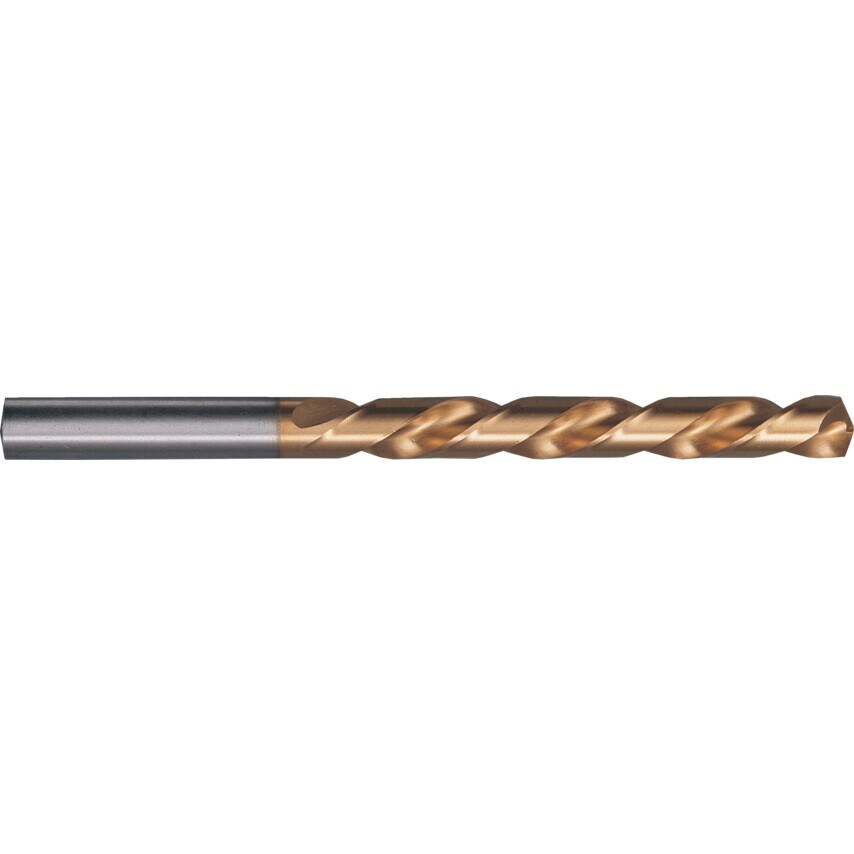

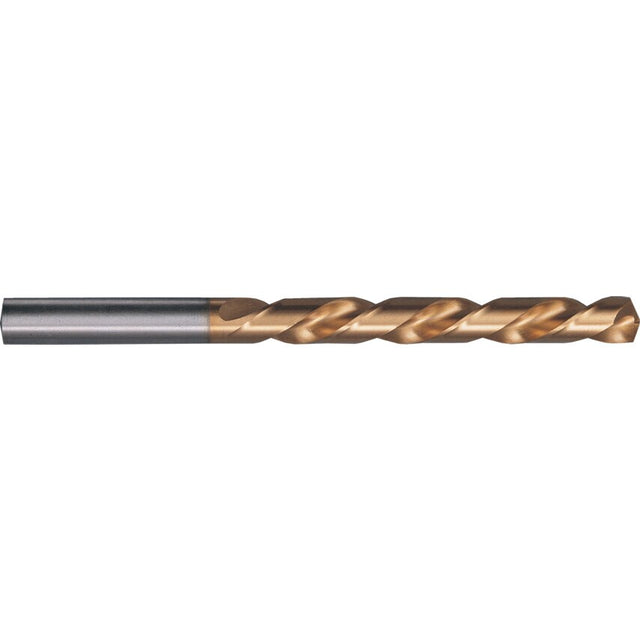

Series 657 HSS-Co Straight Shank Jobber Drills
TiN Coated - Metric
Rigid, high heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels. TiN coated gives greater wear resistance and longer tool life. Limited suitability for special alloys such as Hastelloy, Inconel, Nimonic etc. Manufactured to DIN338.
| Standards Met | DIN338 |
| Diameter | 1.65mm |
| Finish/Coating | TiN |
| Material | Cobalt High Speed Steel |
| Shank Type | Straight |
| Size | 1.65mm |
| Product Type | Jobber Drills |
| Cutting Direction | Right Hand |
| Helix Type | Normal Helix |
| Coolant Delivery | External |
| Point Angle | 130\u00b0 |
| Flute Construction | Ground flutes |
| Flute Length | 20mm |
| Series | 657 |
| Overall Length | 43mm |
| Number of Flutes | 2 |
| MFR Part No. | 00657 001.650 |
| Drill Diameter Metric | 1.65mm |
| Drill Diameter | 1.65mm |
| Point Type | Split Point |
