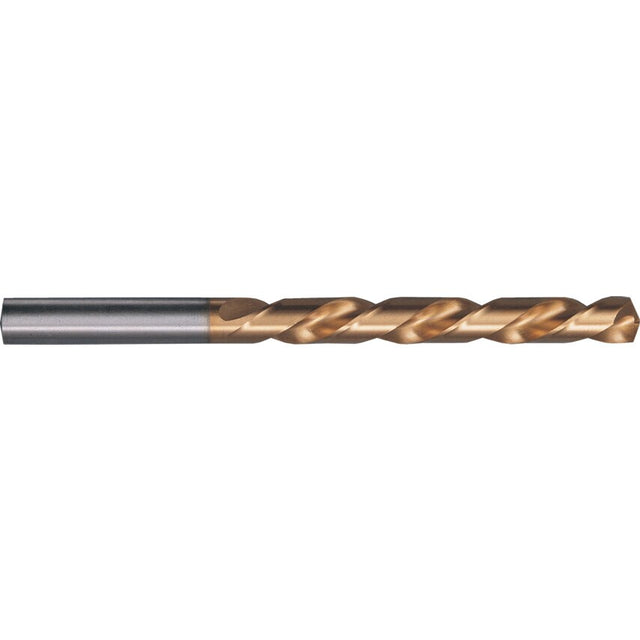

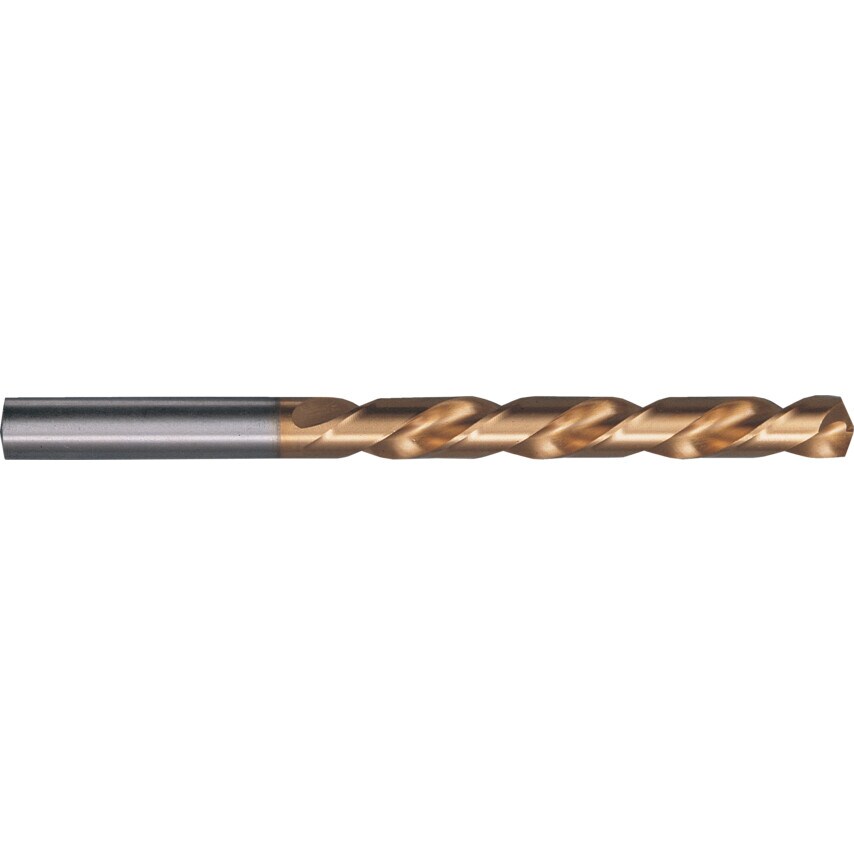

Series 657 HSS-Co Straight Shank Jobber Drills
TiN Coated - Metric
Rigid, high heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels. TiN coated gives greater wear resistance and longer tool life. Limited suitability for special alloys such as Hastelloy, Inconel, Nimonic etc. Manufactured to DIN338.
| Drill Diameter Tolerance | H8 |
| Type | Jobbers-Drill |
| Diameter | 2.6mm |
| Series | 657 |
| Helix Angle | 35\u00b0 |
| Helix Type | High Helix |
| Point Type | Conventional |
| Shank Diameter Tolerance | F11 |
| Product Type | Drills |
| Material | Cobalt High Speed Steel |
| Cutting Direction | Right Hand |
| Finish/Coating | TiN |
| Flute Length | 30mm |
| Web Thickness | Similar to Form C |
| Point Angle | 130\u00b0 |
| Drill Diameter Metric | 2.6mm |
| Size | 2.6mm |
| Flute Construction | Ground flutes |
| Standards Met | DIN 338 |
| Flute Type | Spiral |
| Coolant Delivery | External |
| Number of Flutes | 2 |
| Drill Diameter | 2.6mm |
| Overall Length | 57mm |
| MFR Part No. | 00657 002.600 |
