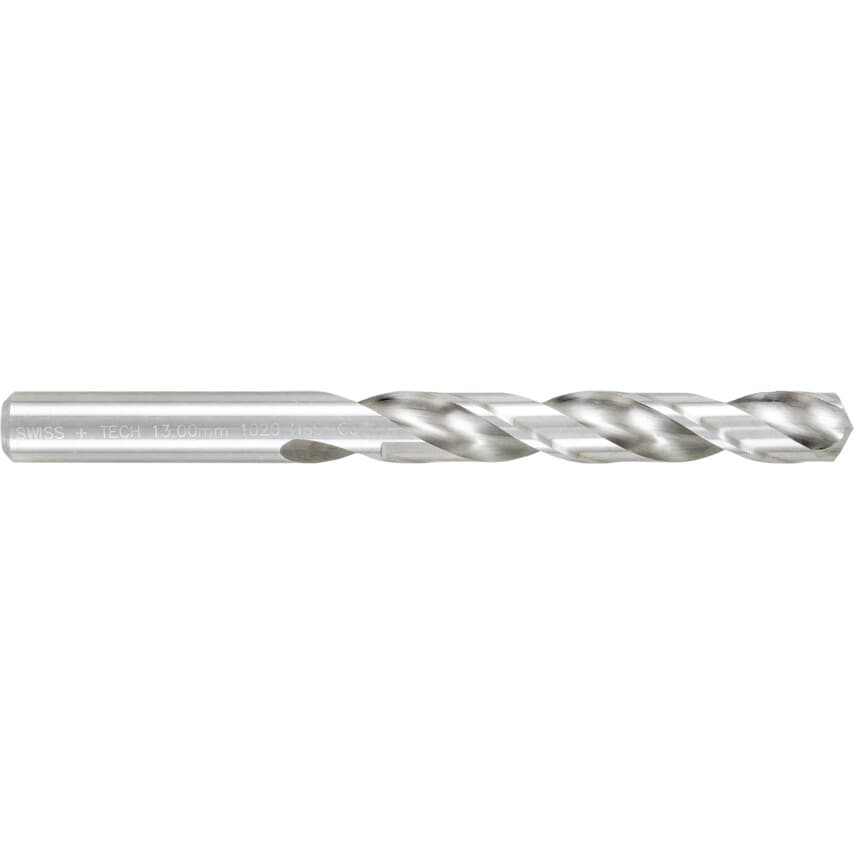

The 1020 Series HSS-Co Heavy Duty Straight Shank Jobber Drills from Swiss Tech feature an addition of up to 8% cobalt which allows higher speeds to be used without reducing the life of the tool ans well as increased productivity.
Features and Benefits
Made with 8% cobalt optimal performance and durability at high speeds

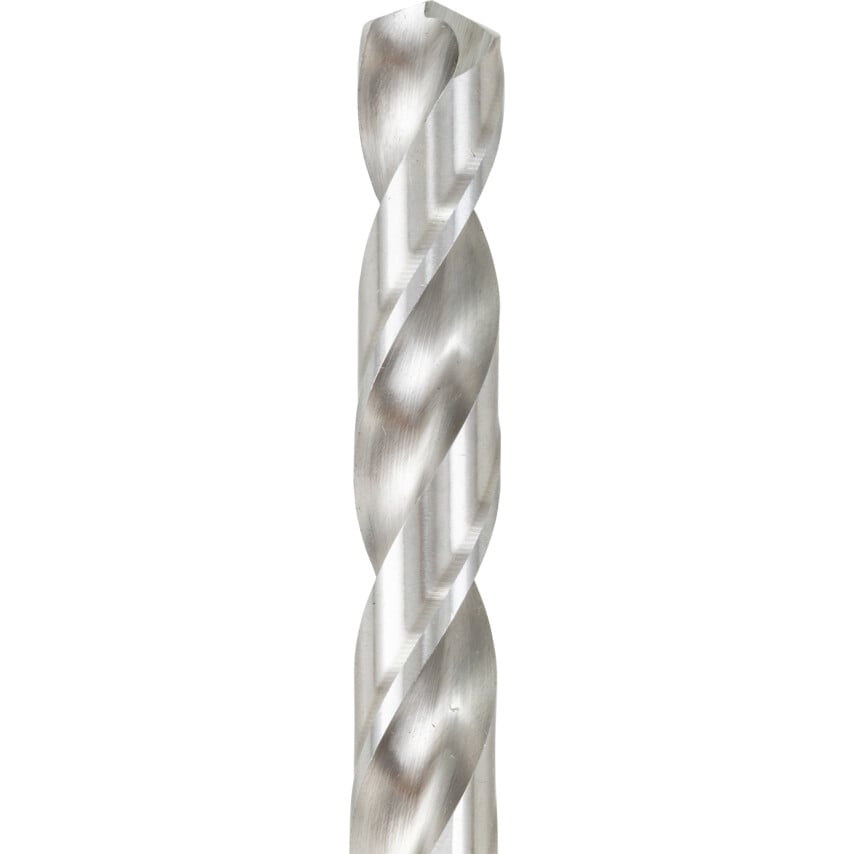

135 point angle for precise hole making and efficient cutting
Effectively cuts through metals including resistant steels and bronze
Extended lifespan on cutting edge, required less sharpening over time
Excellent corrosion resistance extends the lifespan of the tool
Standards
Manufactured DIN 338 RN, point to DIN 1412C
Typical Applications
Cutting and drilling
Hard metals
Stainless steel
Bronze
Notes
Available in sizes 1-14mm
| ISO Category | K | M | P |
| Material | Cobalt High Speed Steel |
| Web Thickness | Form C |
| Drill Diameter | 13mm |
| Coolant Delivery | External |
| Shank Type | Straight |
| Flute Construction | Ground flutes |
| Point Angle | 135\u00b0 |
| Overall Length | 151mm |
| Depth x Diameter Ratio | 4xD |
| Drill Diameter Metric | 13mm |
| Finish/Coating | Bright |
| Number of Pieces | 1 |
| Helix Type | Normal Helix |
| Series | 1020 |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Product Type | Cobalt Drills |
| Material Grade | Cobalt High Speed Steel |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Flute Length | 101mm |
| Manufacturer Grade | DIN338 |
| Shank Diameter Tolerance | F11 |
| Number of Flutes | 2 |
| Helix Angle | 28\u00b0 |
| Drill Diameter Tolerance | H8 |
| Point Type | Split Point |
