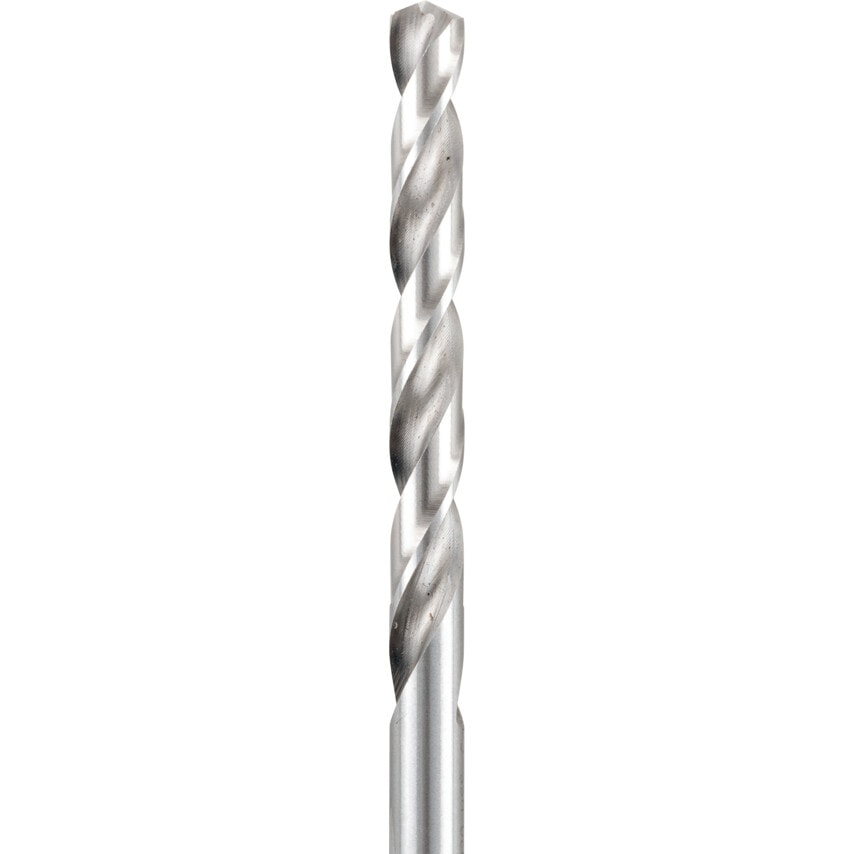

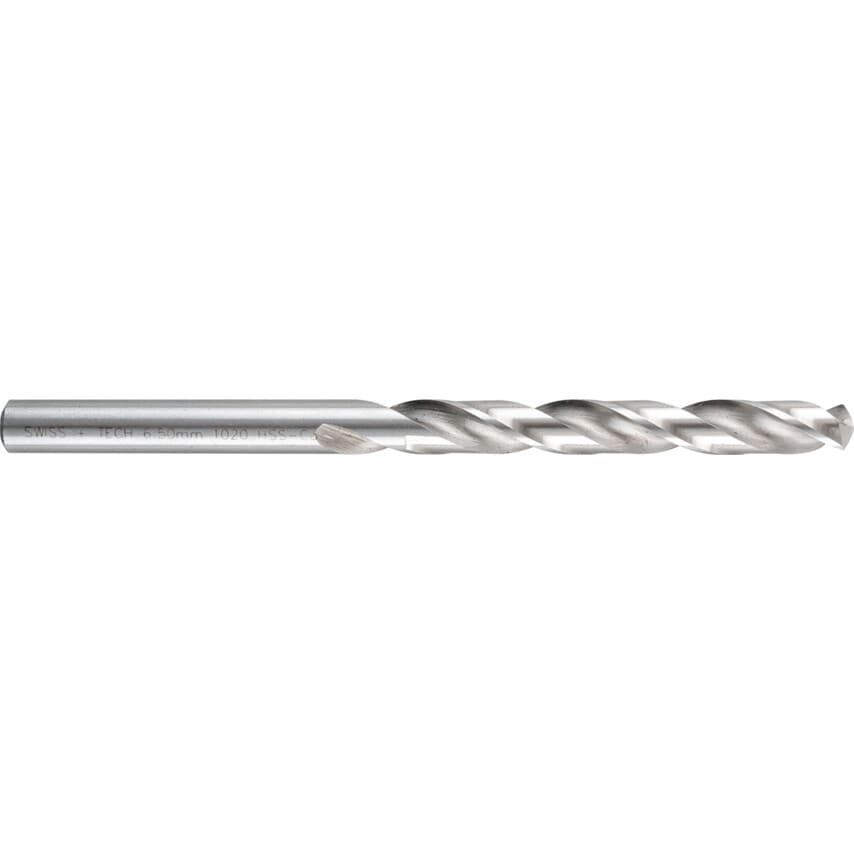

The 1020 Series HSS-Co Heavy Duty Straight Shank Jobber Drills from Swiss Tech feature an addition of up to 8% cobalt which allows higher speeds to be used without reducing the life of the tool ans well as increased productivity.
Features and Benefits
Made with 8% cobalt optimal performance and durability at high speeds
135 point angle for precise hole making and efficient cutting
Effectively cuts through metals including resistant steels and bronze
Extended lifespan on cutting edge, required less sharpening over time
Excellent corrosion resistance extends the lifespan of the tool
Standards
Manufactured DIN 338 RN, point to DIN 1412C
Typical Applications
Cutting and drilling
Hard metals
Stainless steel
Bronze
Notes
Available in sizes 1-14mm
| Material Grade | Cobalt High Speed Steel |
| Coolant Delivery | External |
| Flute Type | Spiral |
| Drill Diameter | 6.5mm |
| Helix Angle | 28\u00b0 |
| Manufacturer Grade | DIN338 |
| Overall Length | 101mm |
| Drill Diameter Tolerance | H8 |
| Point Type | Split Point |
| Material | Cobalt High Speed Steel |
| Drill Diameter Metric | 6.5mm |
| Shank Diameter Tolerance | F11 |
| Number of Flutes | 2 |
| Series | 1020 |
| Product Type | Cobalt Drills |
| Web Thickness | Form C |
| Cutting Direction | Right Hand |
| Flute Construction | Ground flutes |
| Depth x Diameter Ratio | 4xD |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Point Angle | 135\u00b0 |
| Finish/Coating | Bright |
| ISO Category | K | M | P |
| Helix Type | Normal Helix |
| Number of Pieces | 1 |
| Flute Length | 63mm |
| Shank Type | Straight |
