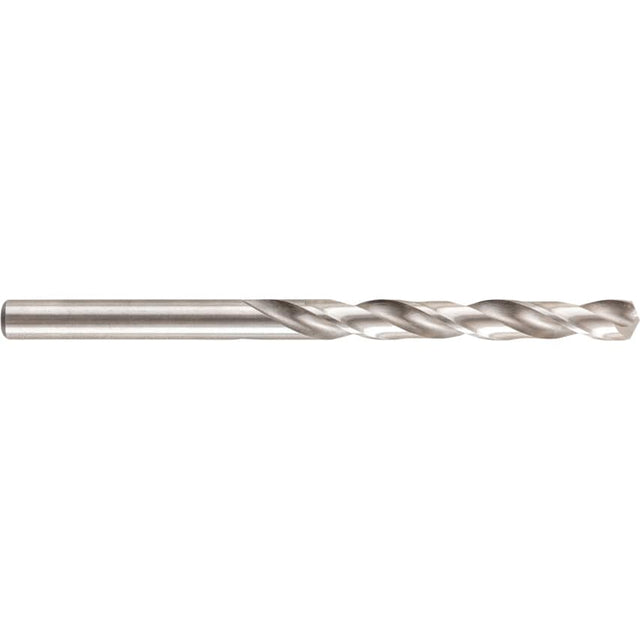

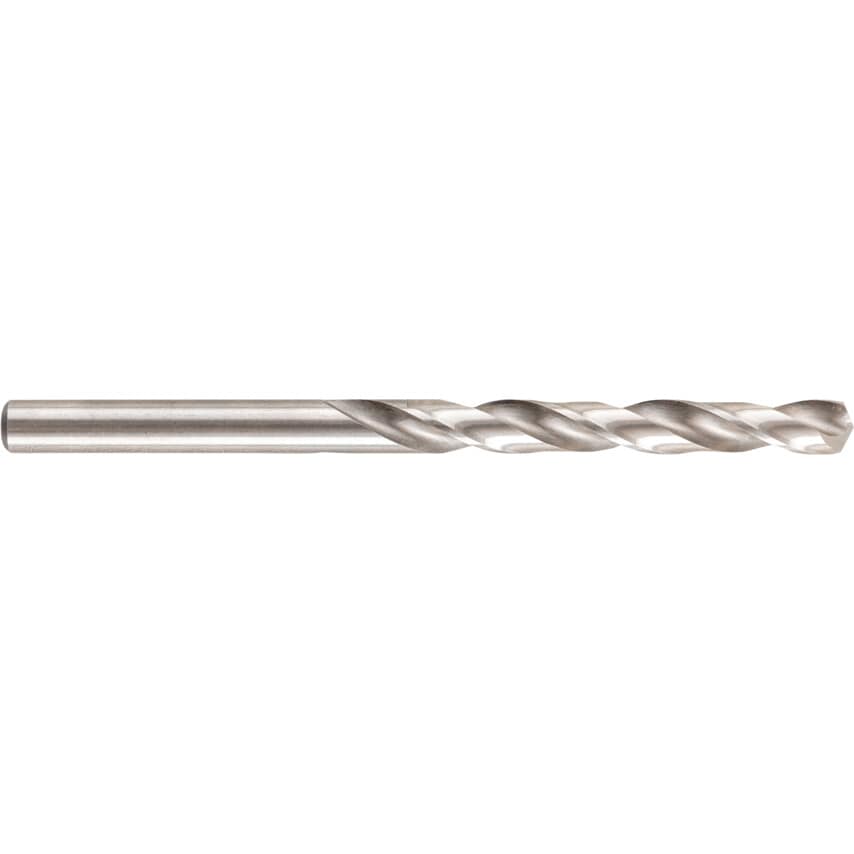

The 1020 Series HSS-Co Heavy Duty Straight Shank Jobber Drills from Swiss Tech feature an addition of up to 8% cobalt which allows higher speeds to be used without reducing the life of the tool ans well as increased productivity.
Features and Benefits
Made with 8% cobalt optimal performance and durability at high speeds
135 point angle for precise hole making and efficient cutting
Effectively cuts through metals including resistant steels and bronze
Extended lifespan on cutting edge, required less sharpening over time
Excellent corrosion resistance extends the lifespan of the tool
Standards
Manufactured DIN 338 RN, point to DIN 1412C
Typical Applications
Cutting and drilling
Hard metals
Stainless steel
Bronze
Notes
Available in sizes 1-14mm
| Helix Type | Normal Helix |
| Shank Diameter Tolerance | F11 |
| Flute Length | 27mm |
| Point Angle | 135\u00b0 |
| Flute Construction | Ground flutes |
| Material | Cobalt High Speed Steel |
| Number of Pieces | 1 |
| ISO Category | K | M | P |
| Product Type | Cobalt Drills |
| Web Thickness | Form C |
| Manufacturer Grade | DIN338 |
| Overall Length | 53mm |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Drill Diameter | 2.2mm |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Cobalt High Speed Steel |
| Helix Angle | 28\u00b0 |
| Point Type | Split Point |
| Finish/Coating | Bright |
| Depth x Diameter Ratio | 4xD |
| Series | 1020 |
| Drill Diameter Metric | 2.2mm |
| Coolant Delivery | External |
| Drill Diameter Tolerance | H8 |
