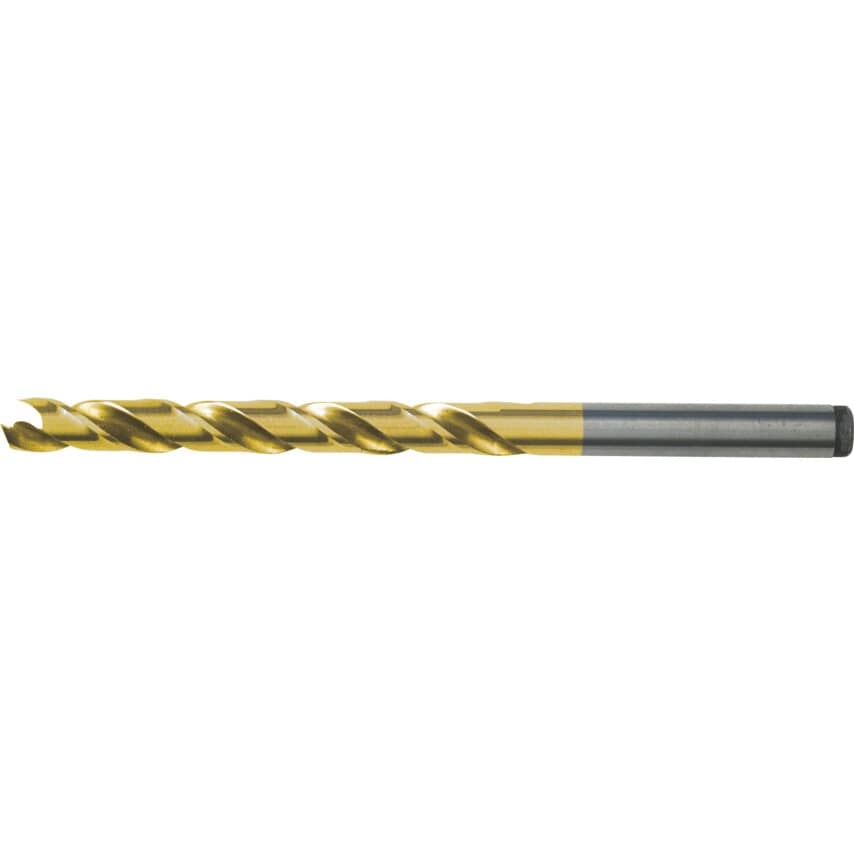

Series 1033 are heavy-duty drill used to drill steels with a tensile strength up to 1,400 N/mm2. Stainless steels, heat and acid resistant steels and phosphor bronze. TiN coating provides longer tool life.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
Ideal for drilling steels with a tensile strength up to 1,400 N/mm2
TiN coating provides longer tool life
Typical Applications
Drilling
Steel
Standards
Manufactured to DIN 338 RN
| Drill Diameter | 2mm |
| Coolant Delivery | External |
| Web Thickness | Strengthened Form C |
| Depth x Diameter Ratio | 4xD |
| Flute Length | 24mm |
| Flute Construction | Ground flutes |
| ISO Category | K | M | P |
| Number of Pieces | 10 |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Shank Type | Straight |
| Helix Angle | 28\u00b0 |
| Shank Diameter Tolerance | F11 |
| Finish/Coating | TiN |
| Drill Diameter Tolerance | H8 |
| Flute Type | Spiral |
| Material | Cobalt High Speed Steel |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Material Grade | Cobalt High Speed Steel |
| Helix Type | Normal Helix |
| Overall Length | 49mm |
| Drill Diameter Metric | 2mm |
| Point Angle | 135\u00b0 |
| Point Type | Spear Point |
| Manufacturer Grade | DIN338 |
| Series | 1033 |
