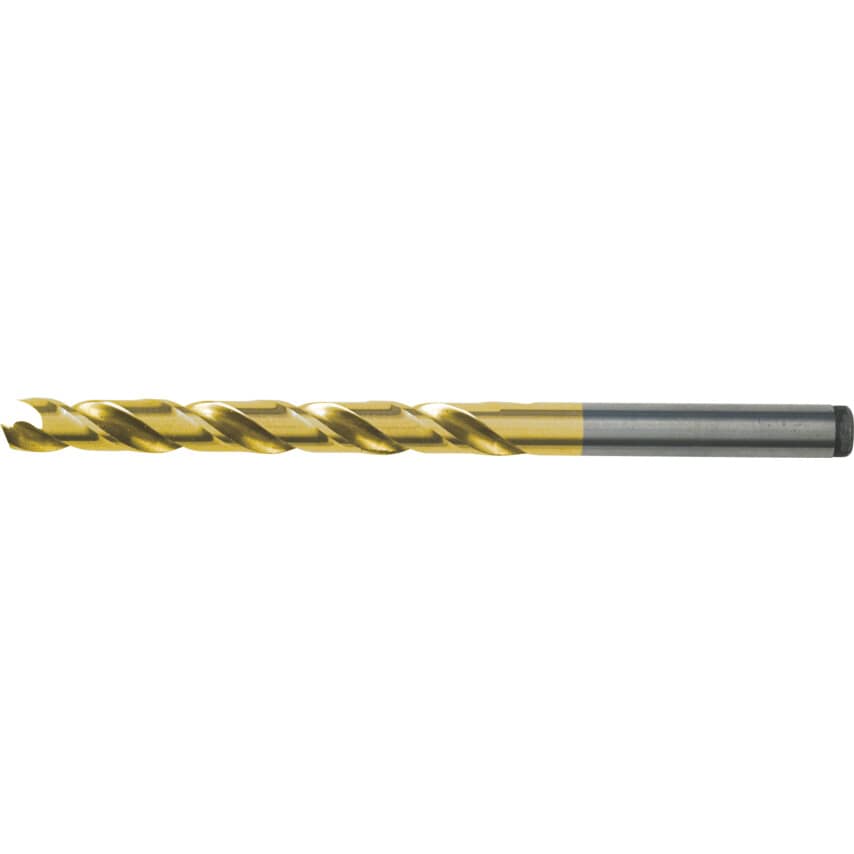

Series 1033 are heavy-duty drill used to drill steels with a tensile strength up to 1,400 N/mm2. Stainless steels, heat and acid resistant steels and phosphor bronze. TiN coating provides longer tool life.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
Ideal for drilling steels with a tensile strength up to 1,400 N/mm2
TiN coating provides longer tool life
Typical Applications
Drilling
Steel
Standards
Manufactured to DIN 338 RN
| Cutting Direction | Right Hand |
| Overall Length | 61mm |
| Manufacturer Grade | DIN338 |
| Shank Diameter Tolerance | F11 |
| Drill Diameter Tolerance | H8 |
| ISO Category | K | M | P |
| Drill Diameter Metric | 2.7mm |
| Material Grade | Cobalt High Speed Steel |
| Helix Angle | 28\u00b0 |
| Drill Diameter | 2.7mm |
| Flute Construction | Ground flutes |
| Series | 1033 |
| Flute Type | Spiral |
| Depth x Diameter Ratio | 4xD |
| Number of Pieces | 10 |
| Point Angle | 135\u00b0 |
| Finish/Coating | TiN |
| Product Type | Drills |
| Material | Cobalt High Speed Steel |
| Coolant Delivery | External |
| Point Type | Spear Point |
| Number of Flutes | 2 |
| Web Thickness | Strengthened Form C |
| Shank Type | Straight |
| Flute Length | 33mm |
| Helix Type | Normal Helix |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
