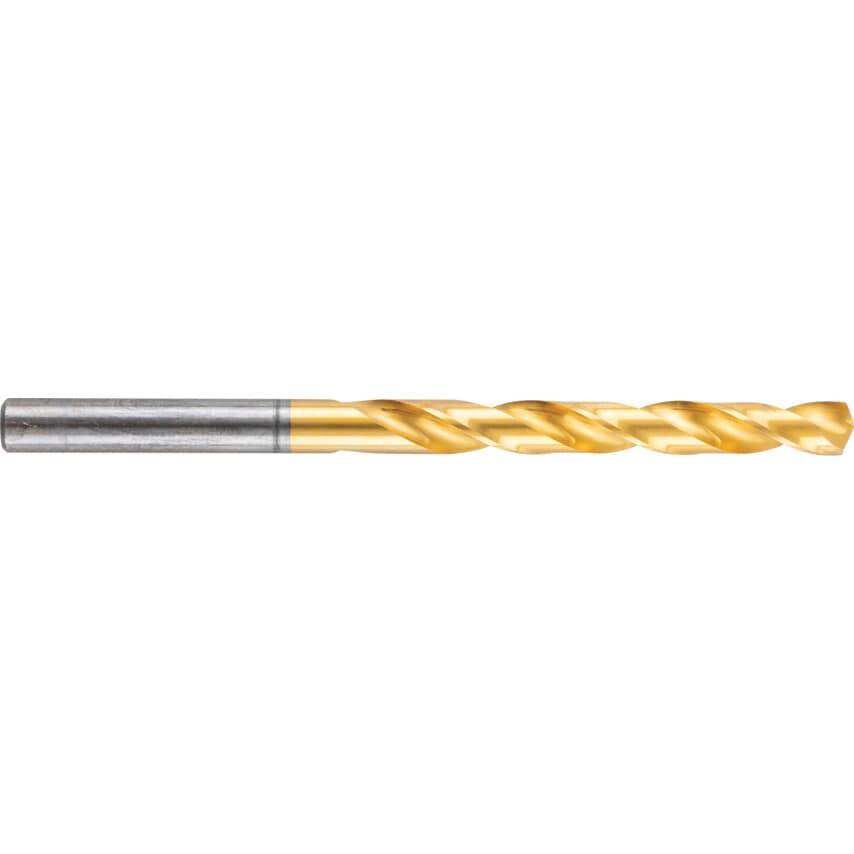

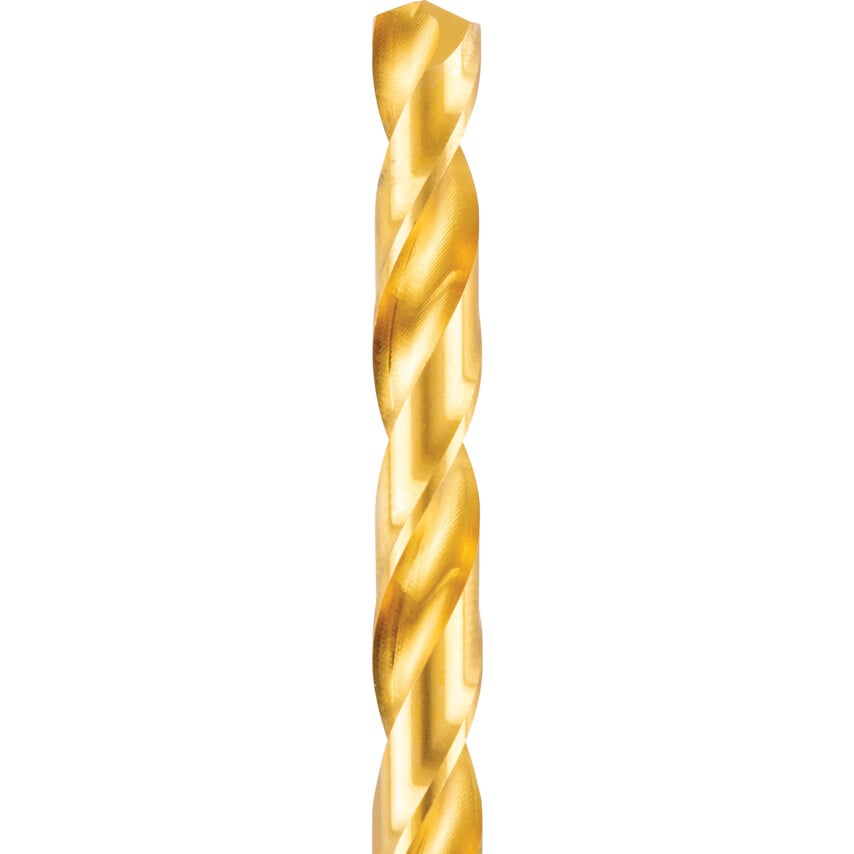

Series 1033 are heavy-duty drill used to drill steels with a tensile strength up to 1,400 N/mm2. Stainless steels, heat and acid resistant steels and phosphor bronze. TiN coating provides longer tool life.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
Ideal for drilling steels with a tensile strength up to 1,400 N/mm2
TiN coating provides longer tool life
Typical Applications
Drilling
Steel
Standards
Manufactured to DIN 338 RN
| Web Thickness | Strengthened Form C |
| Coolant Delivery | External |
| ISO Category | K | M | P |
| Shank Type | Straight |
| Product Type | Drills |
| Manufacturer Grade | DIN338 |
| Helix Angle | 28\u00b0 |
| Number of Flutes | 2 |
| Depth x Diameter Ratio | 4xD |
| Drill Diameter | 6.5mm |
| Overall Length | 101mm |
| Helix Type | Normal Helix |
| Number of Pieces | 10 |
| Shank Diameter Tolerance | F11 |
| Series | 1033 |
| Point Angle | 135\u00b0 |
| Flute Type | Spiral |
| Point Type | Spear Point |
| Material Grade | Cobalt High Speed Steel |
| Flute Construction | Ground flutes |
| Cutting Direction | Right Hand |
| Flute Length | 63mm |
| Finish/Coating | TiN |
| Material | Cobalt High Speed Steel |
| Drill Diameter Metric | 6.5mm |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Drill Diameter Tolerance | H8 |
