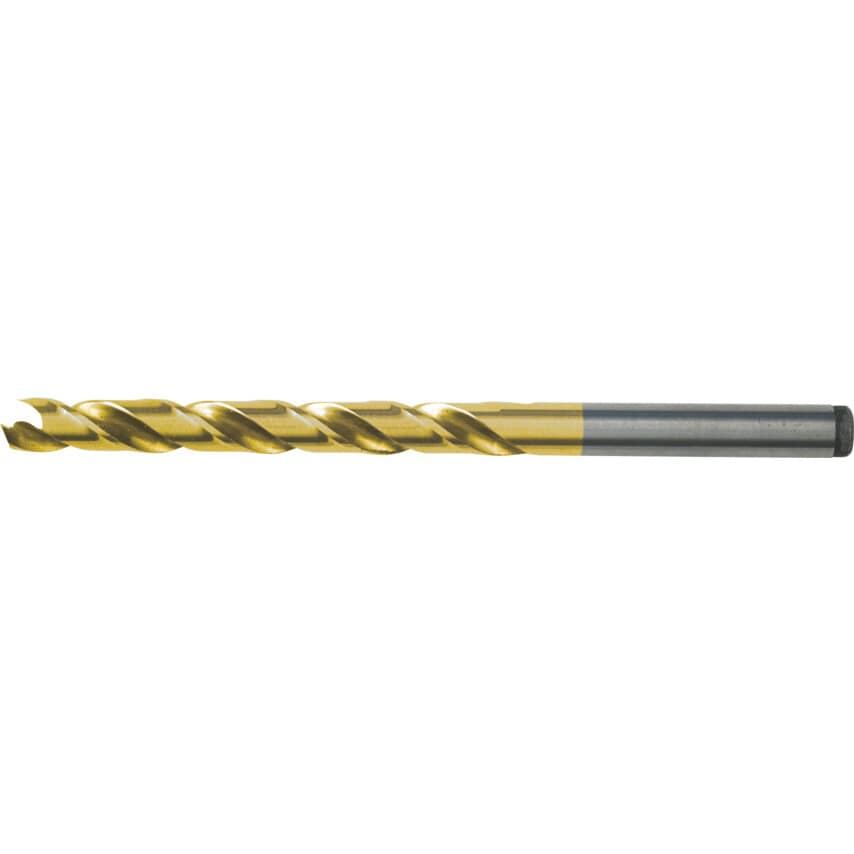

Series 1033 are heavy-duty drill used to drill steels with a tensile strength up to 1,400 N/mm2. Stainless steels, heat and acid resistant steels and phosphor bronze. TiN coating provides longer tool life.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
Ideal for drilling steels with a tensile strength up to 1,400 N/mm2
TiN coating provides longer tool life
Typical Applications
Drilling
Steel
Standards
Manufactured to DIN 338 RN
| Manufacturer Grade | DIN338 |
| Series | 1033 |
| Web Thickness | Strengthened Form C |
| Shank Type | Straight |
| Coolant Delivery | External |
| Flute Construction | Ground flutes |
| Flute Type | Spiral |
| Point Angle | 135\u00b0 |
| Material | Cobalt High Speed Steel |
| Number of Pieces | 10 |
| Helix Angle | 28\u00b0 |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance | H8 |
| ISO Category | K | M | P |
| Depth x Diameter Ratio | 4xD |
| Drill Diameter | 4.8mm |
| Flute Length | 52mm |
| Product Type | Drills |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Overall Length | 86mm |
| Number of Flutes | 2 |
| Shank Diameter Tolerance | F11 |
| Finish/Coating | TiN |
| Helix Type | Normal Helix |
| Drill Diameter Metric | 4.8mm |
| Material Grade | Cobalt High Speed Steel |
| Point Type | Spear Point |
