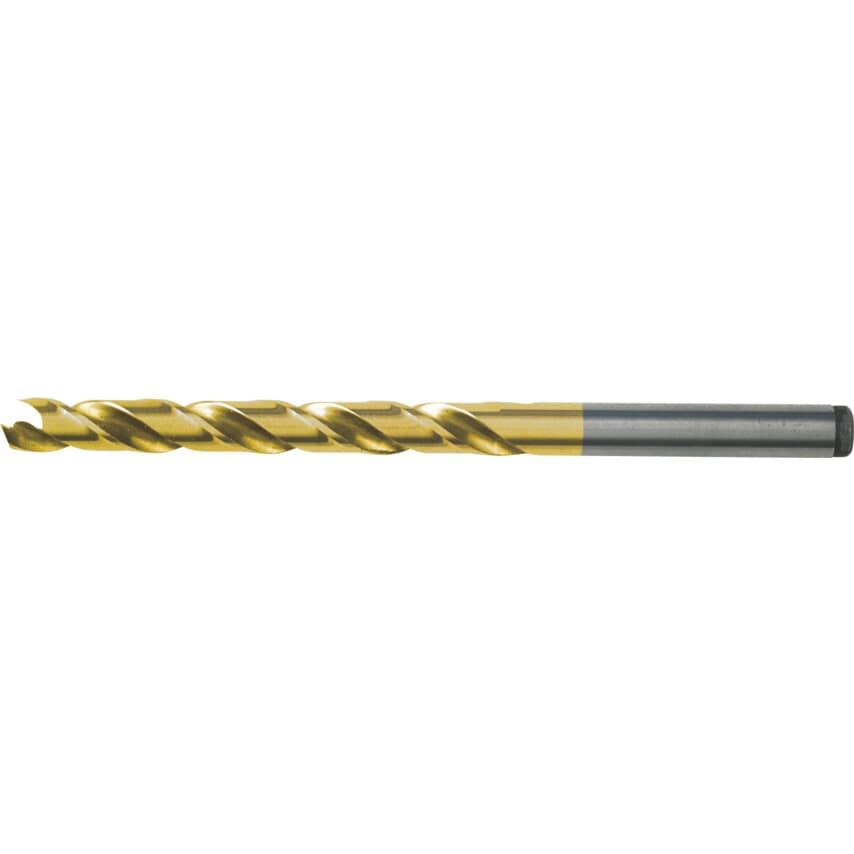

Series 1033 are heavy-duty drill used to drill steels with a tensile strength up to 1,400 N/mm2. Stainless steels, heat and acid resistant steels and phosphor bronze. TiN coating provides longer tool life.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
Ideal for drilling steels with a tensile strength up to 1,400 N/mm2
TiN coating provides longer tool life
Typical Applications
Drilling
Steel
Standards
Manufactured to DIN 338 RN
| Number of Flutes | 2 |
| Material Grade | Cobalt High Speed Steel |
| Series | 1033 |
| Helix Angle | 28\u00b0 |
| Point Type | Spear Point |
| Flute Construction | Ground flutes |
| Drill Diameter Tolerance | H8 |
| Finish/Coating | TiN |
| Point Angle | 135\u00b0 |
| ISO Category | K | M | P |
| Helix Type | Normal Helix |
| Overall Length | 46mm |
| Flute Type | Spiral |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Shank Type | Straight |
| Material | Cobalt High Speed Steel |
| Number of Pieces | 10 |
| Web Thickness | Strengthened Form C |
| Drill Diameter Metric | 1.8mm |
| Drill Diameter | 1.8mm |
| Depth x Diameter Ratio | 4xD |
| Manufacturer Grade | DIN338 |
| Flute Length | 22mm |
| Shank Diameter Tolerance | F11 |
