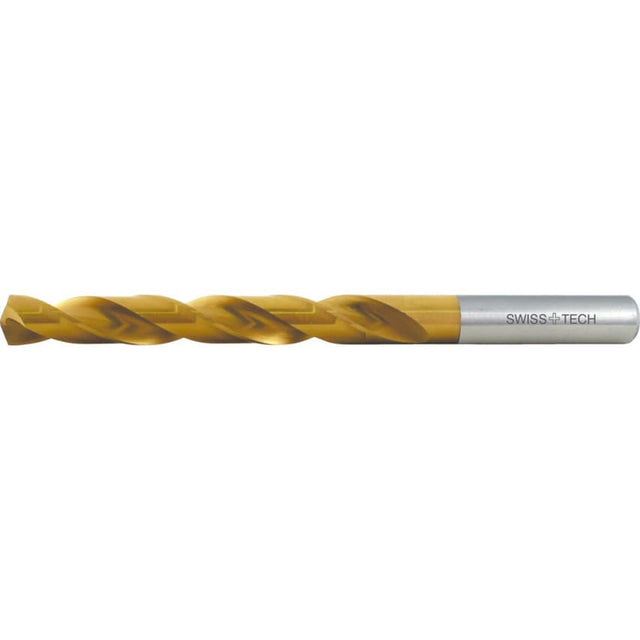

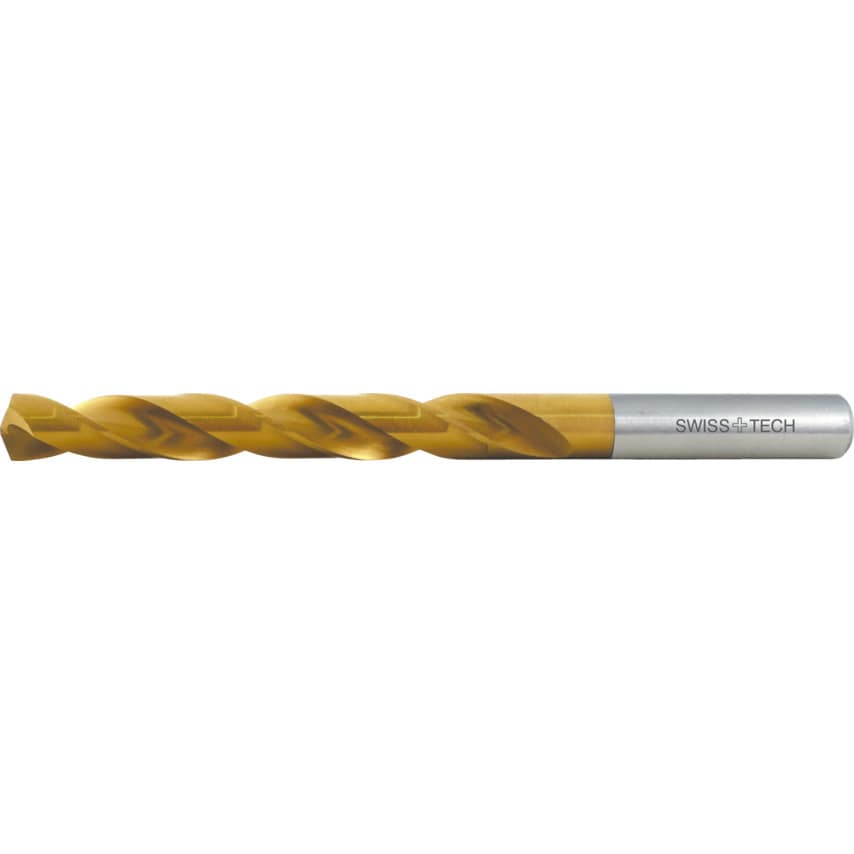

Series 1033 are heavy-duty drill used to drill steels with a tensile strength up to 1,400 N/mm2. Stainless steels, heat and acid resistant steels and phosphor bronze. TiN coating provides longer tool life.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
Ideal for drilling steels with a tensile strength up to 1,400 N/mm2
TiN coating provides longer tool life
Typical Applications
Drilling
Steel
Standards
Manufactured to DIN 338 RN
| Number of Flutes | 2 |
| Web Thickness | Form C | Strengthened |
| Helix Angle | 28\u00b0 |
| Overall Length | 151mm |
| Flute Length | 101mm |
| Drill Diameter Metric | 12mm |
| Point Angle | 135\u00b0 |
| Shank Type | Straight |
| Flute Type | Spiral |

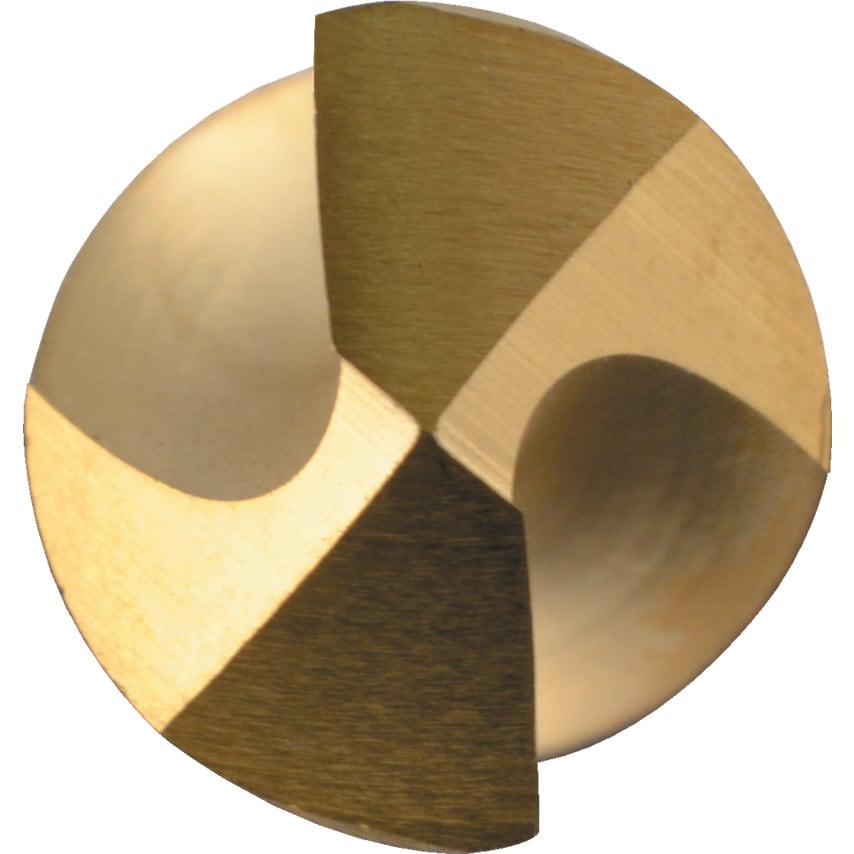

| Point Type | Spear Point |
| Drill Diameter | 12mm |
| Flute Construction | Ground flutes |
| ISO Category | K | M | P |
| Drill Diameter Tolerance | H8 |
| Manufacturer Grade | DIN338 |
| Coolant Delivery | External |
| Series | 1033 |
| Depth x Diameter Ratio | 4xD |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Shank Diameter Tolerance | F11 |
| Finish/Coating | TiN |
| Cutting Direction | Right Hand |
| Material Grade | Cobalt High Speed Steel |
| Number of Pieces | 5 |
| Material | Cobalt High Speed Steel |
| Helix Type | Normal Helix |
