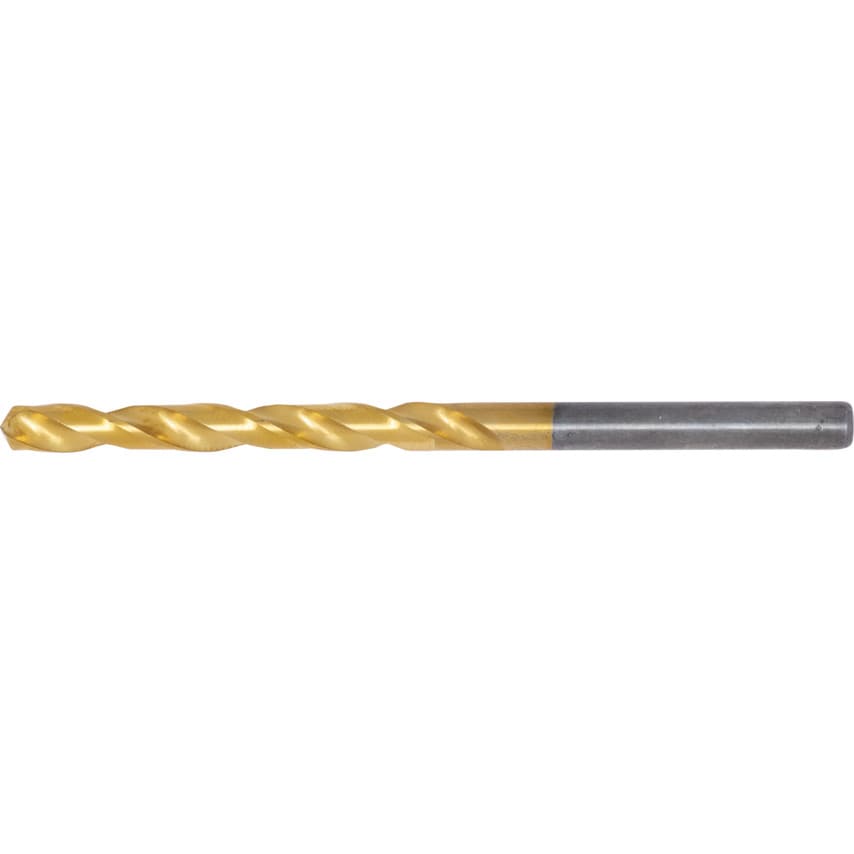

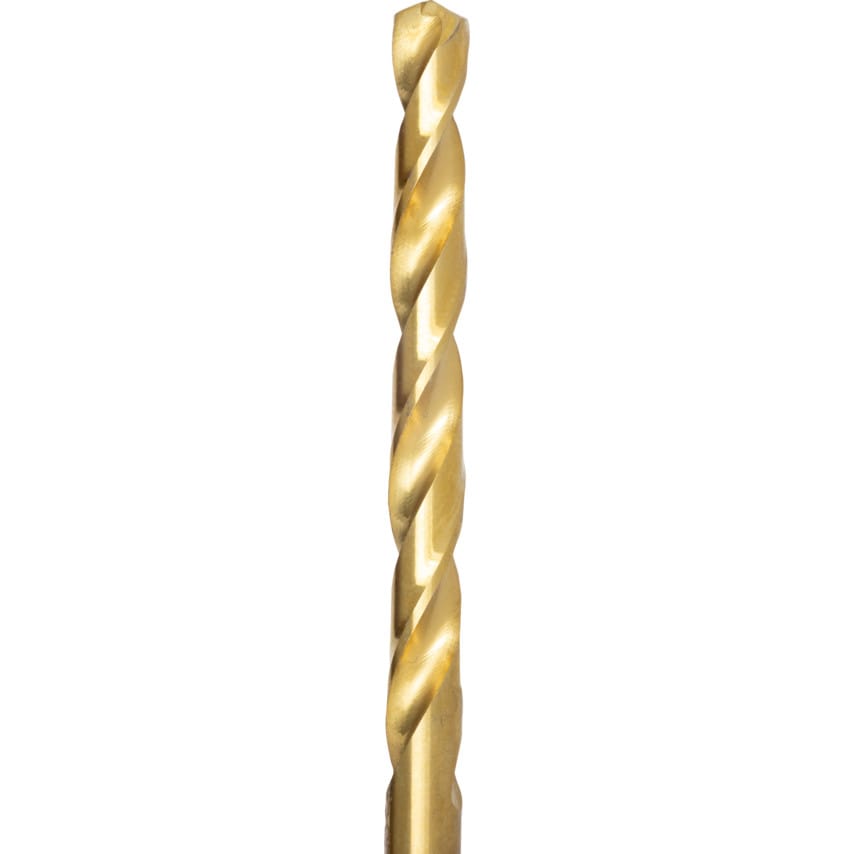

Series 1033 are heavy-duty drill used to drill steels with a tensile strength up to 1,400 N/mm2. Stainless steels, heat and acid resistant steels and phosphor bronze. TiN coating provides longer tool life.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
Ideal for drilling steels with a tensile strength up to 1,400 N/mm2
TiN coating provides longer tool life
Typical Applications
Drilling
Steel
Standards
Manufactured to DIN 338 RN
| Depth x Diameter Ratio | 4xD |
| Drill Diameter Tolerance | H8 |
| ISO Category | K | M | P |
| Shank Diameter Tolerance | F11 |
| Product Type | Drills |
| Flute Construction | Ground flutes |
| Overall Length | 86mm |
| Material | Cobalt High Speed Steel |
| Point Angle | 135\u00b0 |
| Web Thickness | Strengthened Form C |
| Finish/Coating | TiN |
| Number of Pieces | 10 |
| Drill Diameter Metric | 5mm |
| Manufacturer Grade | DIN338 |
| Coolant Delivery | External |
| Flute Type | Spiral |
| Flute Length | 52mm |
| Number of Flutes | 2 |
| Shank Type | Straight |
| Point Type | Spear Point |
| Material Grade | Cobalt High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Diameter | 5mm |
| Series | 1033 |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Helix Angle | 28\u00b0 |
| Helix Type | Normal Helix |
