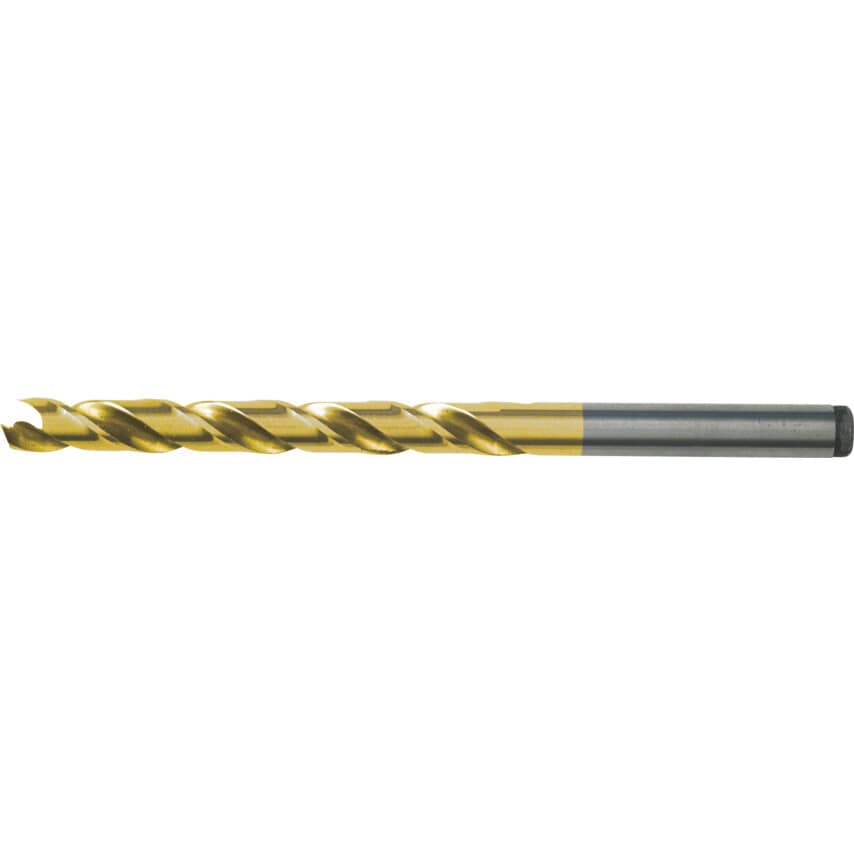

Series 1033 are heavy-duty drill used to drill steels with a tensile strength up to 1,400 N/mm2. Stainless steels, heat and acid resistant steels and phosphor bronze. TiN coating provides longer tool life.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
Ideal for drilling steels with a tensile strength up to 1,400 N/mm2
TiN coating provides longer tool life
Typical Applications
Drilling
Steel
Standards
Manufactured to DIN 338 RN
| Series | 1033 |
| Point Angle | 135\u00b0 |
| Drill Diameter Tolerance | H8 |
| Overall Length | 53mm |
| Shank Diameter Tolerance | F11 |
| ISO Category | K | M | P |
| Coolant Delivery | External |
| Helix Type | Normal Helix |
| Number of Flutes | 2 |
| Shank Type | Straight |
| Point Type | Spear Point |
| Material Grade | Cobalt High Speed Steel |
| Flute Construction | Ground flutes |
| Helix Angle | 28\u00b0 |
| Flute Type | Spiral |
| Manufacturer Grade | DIN338 |
| Web Thickness | Strengthened Form C |
| Depth x Diameter Ratio | 4xD |
| Material | Cobalt High Speed Steel |
| Drill Diameter | 2.3mm |
| Product Type | Cobalt + TiN Drill |
| Number of Pieces | 10 |
| Flute Length | 27mm |
| Cutting Direction | Right Hand |
| Finish/Coating | TiN |
| Drill Diameter Metric | 2.3mm |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
