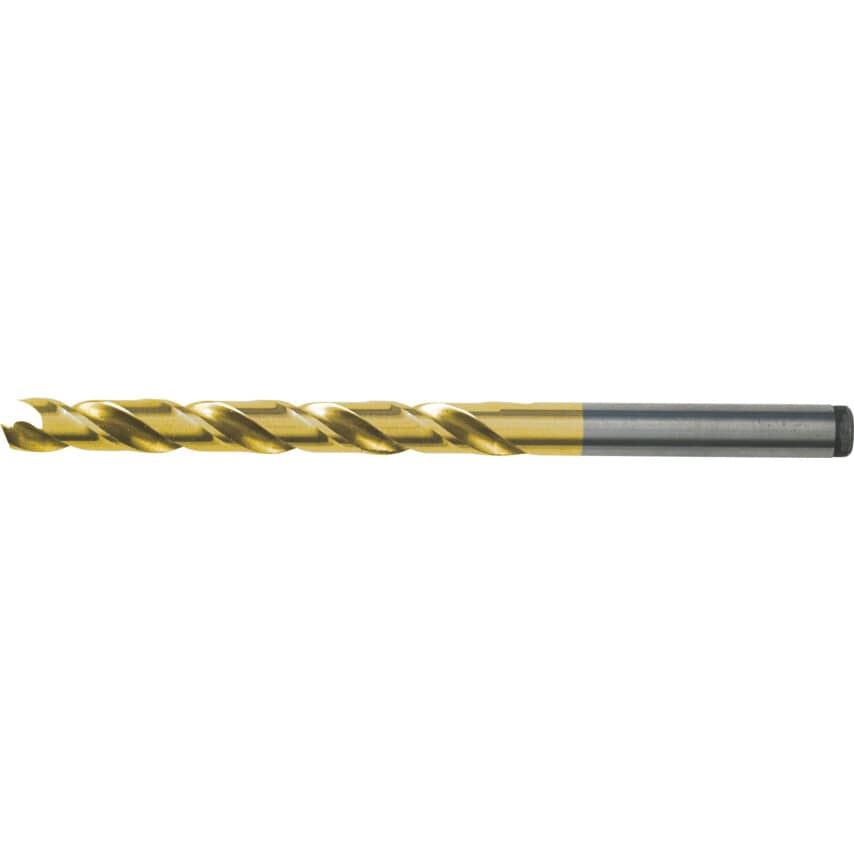

Series 1033 are heavy-duty drill used to drill steels with a tensile strength up to 1,400 N/mm2. Stainless steels, heat and acid resistant steels and phosphor bronze. TiN coating provides longer tool life.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
Ideal for drilling steels with a tensile strength up to 1,400 N/mm2
TiN coating provides longer tool life
Typical Applications
Drilling
Steel
Standards
Manufactured to DIN 338 RN
| Drill Diameter Tolerance | H8 |
| Flute Length | 24mm |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Shank Diameter Tolerance | F11 |
| Flute Construction | Ground flutes |
| Flute Type | Spiral |
| Point Type | Spear Point |
| Cutting Direction | Right Hand |
| Finish/Coating | TiN |
| Overall Length | 49mm |
| Helix Angle | 28\u00b0 |
| ISO Category | K | M | P |
| Number of Pieces | 10 |
| Shank Type | Straight |
| Series | 1033 |
| Number of Flutes | 2 |
| Coolant Delivery | External |
| Manufacturer Grade | DIN338 |
| Material | Cobalt High Speed Steel |
| Drill Diameter Metric | 2.1mm |
| Product Type | Drills |
| Drill Diameter | 2.1mm |
| Web Thickness | Strengthened Form C |
| Material Grade | Cobalt High Speed Steel |
| Point Angle | 135\u00b0 |
| Depth x Diameter Ratio | 4xD |
| Helix Type | Normal Helix |
