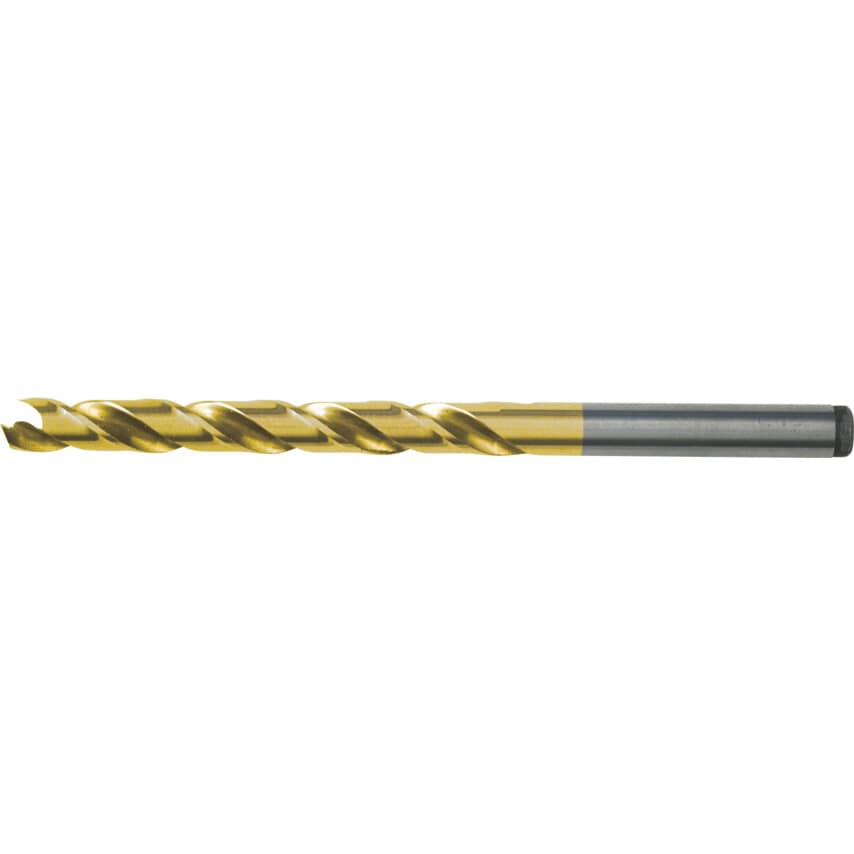

Series 1033 are heavy-duty drill used to drill steels with a tensile strength up to 1,400 N/mm2. Stainless steels, heat and acid resistant steels and phosphor bronze. TiN coating provides longer tool life.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
Ideal for drilling steels with a tensile strength up to 1,400 N/mm2
TiN coating provides longer tool life
Typical Applications
Drilling
Steel
Standards
Manufactured to DIN 338 RN
| Shank Type | Straight |
| Flute Construction | Ground flutes |
| Overall Length | 93mm |
| Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Drill Diameter Tolerance | H8 |
| Shank Diameter Tolerance | F11 |
| Manufacturer Grade | DIN338 |
| Material Grade | Cobalt High Speed Steel |
| Drill Diameter Metric | 6mm |
| Product Type | Drills |
| Drill Diameter | 6mm |
| Series | 1033 |
| Material | Cobalt High Speed Steel |
| Point Type | Spear Point |
| ISO Category | K | M | P |
| Web Thickness | Strengthened Form C |
| Flute Length | 57mm |
| Depth x Diameter Ratio | 4xD |
| Number of Pieces | 10 |
| Helix Angle | 28\u00b0 |
| Point Angle | 135\u00b0 |
| Coolant Delivery | External |
| Helix Type | Normal Helix |
