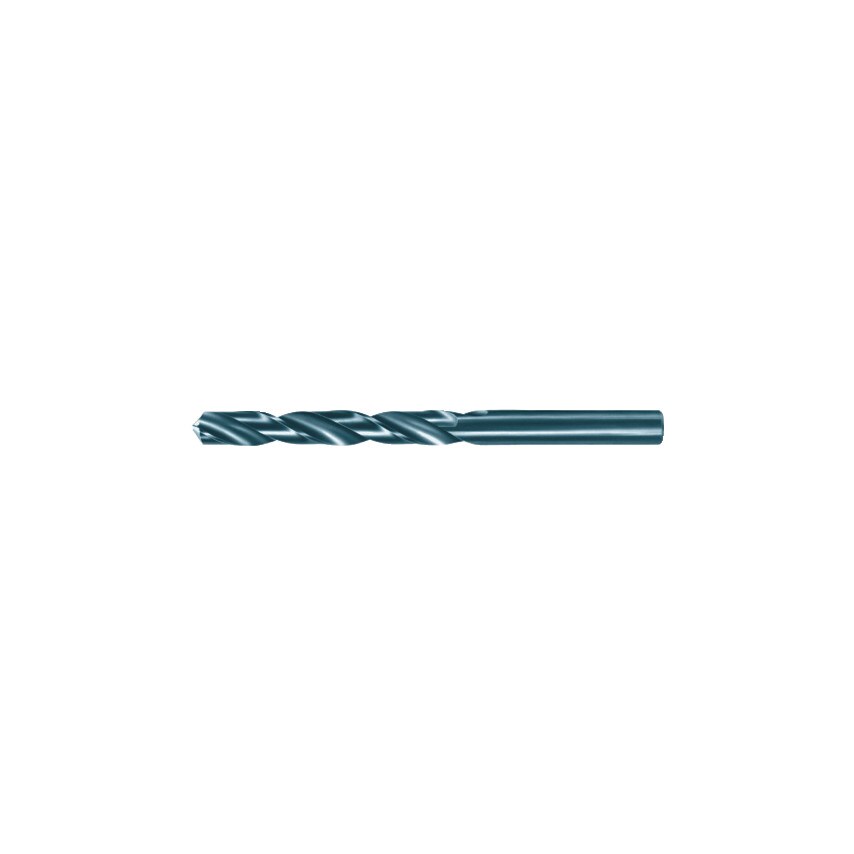

Series 5523 HSS-Co Straight Shank Jobber Drills
Bright Finish - Metric
For multiple machining tasks. Suitable for non-ferrous metals, structural steels and carbon steels, high-alloyed steels, cast iron and cast alloys, plastics as well as aluminium. 4-facet split point. Manufactured to BS 328, DIN338RN.
| Standards Met | DIN 338 |
| Web Thickness | Similar to Form C |
| Shank Diameter Tolerance | F11 |
| Drill Diameter | 4.76mm |
| Flute Construction | Ground flutes |
| Coolant Delivery | External |
| Point Angle | 118\u00b0 |
| Drill Diameter Tolerance | H8 |
| Overall Length | 86mm |
| Flute Type | Spiral |
| Finish/Coating | Bright |
| Drill Diameter Metric | 4.76mm |
| Point Type | Split Point |
| MFR Part No. | 05523 004.760 |
| Material | Cobalt High Speed Steel |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Series | 5523 |
| Helix Type | Normal Helix |
| Size | 4.76mm |
| Product Type | Jobber Drills |
| Flute Length | 52mm |
