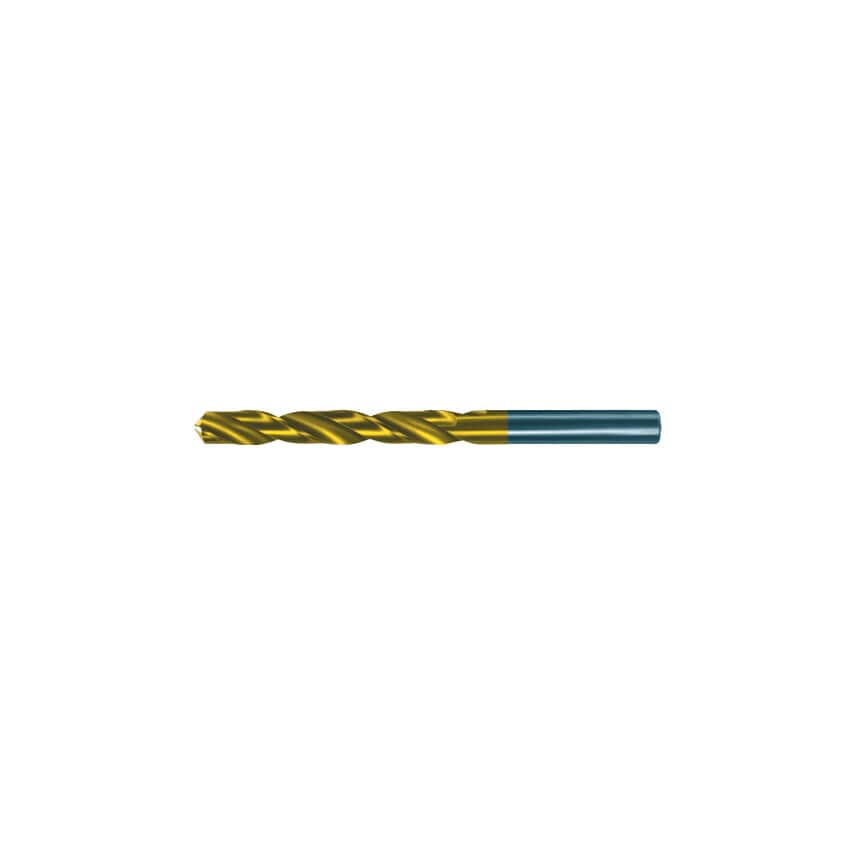

Series 5519 Hss-Co Straight Shank TiN coated drill for use on general steels/brass, stainless steels,hardened materials, universal steels and cast iron.
Features
HSS-Co
Metric
Tin Coated
4- facet split point
5xD
Manufactured to DIN 338
Sizes 1.00mm to 14.00mm
| Finish/Coating | TiN |
| Number of Flutes | 2 |
| Shank Diameter Tolerance | H8 |
| Size | 6.6mm |
| Web Thickness | Similar to Form C |
| Helix Type | High Helix |
| Drill Diameter Tolerance | H8 |
| MFR Part No. | 05519 006.600 |
| Point Angle | 118\u00b0 |
| Drill Diameter Metric | 6.6mm |
| Cutting Direction | Right Hand |
| Flute Length | 63mm |
| Flute Type | Spiral |
| Drill Diameter | 6.6mm |
| Material | Cobalt High Speed Steel |
| Overall Length | 101mm |
| Point Type | Four Facet | Split Point |
| Series | 5519 |
| Coolant Delivery | External |
| Flute Construction | Ground flutes |
| Standards Met | DIN 338 |
| Product Type | Jobber Drills |
