Proto save
£0.66
Loading...

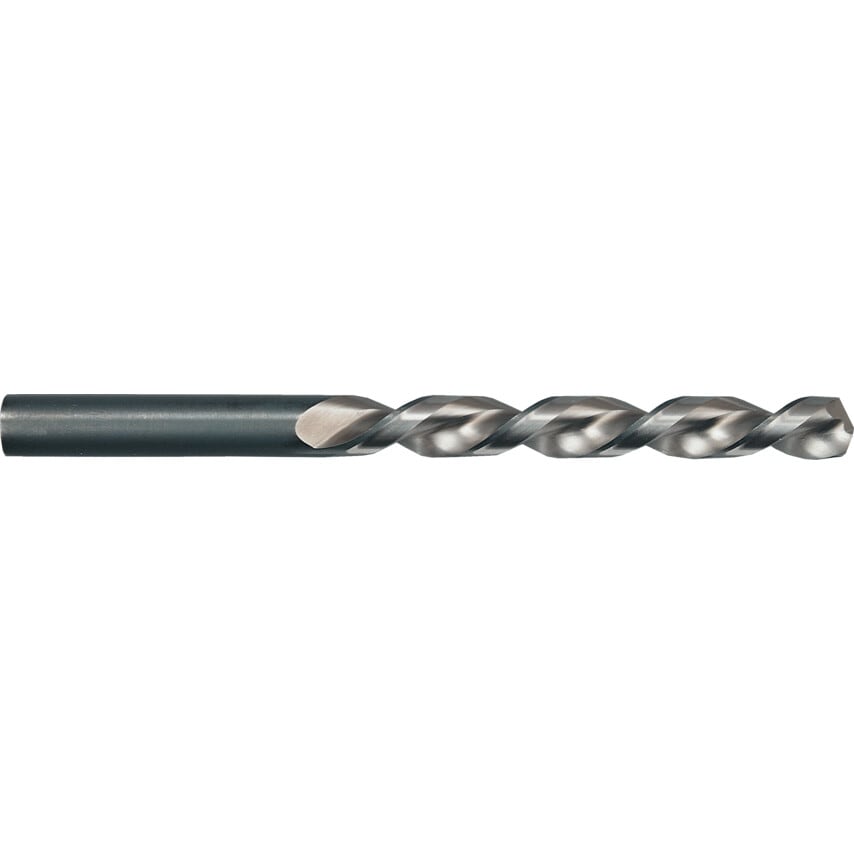

Series 305 HSS-Co straight shank jobber drills are general purpose drills for use on cast steel, alloyed / unalloyed steel,cast materials,heat treatable and case hardened steels. Manufactured from high speed steel with a steam tempered finish and cobalt they feature good cutting hardness and are available in a range of metric sizes
Features and Benefits
Metric sizes 0.20mm to 20.00mm
High speed steel and cobalt for good cutting hardness and durability
A steam tempered surface provides an improved corrosion protection
Standards
Manufactured to DIN 338
| Point Angle | 118\u00b0 |
| Web Thickness | Form A Web-thinned |
| Material | Cobalt High Speed Steel |
| Standards Met | DIN 338 |
| Cutting Direction | Right Hand |
| MFR Part No. | 00305 002.450 |
| Type | Jobber Drills |
| Product Type | Jobber Drills |
| Helix Type | Normal Helix |
| Coolant Delivery | External |
| Drill Diameter Metric | 2.45mm |
| Overall Length | 57mm |
| Drill Diameter Tolerance | H8 |
| Finish/Coating | Steam Oxide |
| Flute Construction | Ground flutes |
| Drill Diameter | 2.45mm |
| Number of Flutes | 2 |
| Shank Diameter Tolerance | H8 |
| Series | 305 |
| Flute Type | Spiral |
| Point Type | Thinned Point |
| Flute Length | 30mm |
