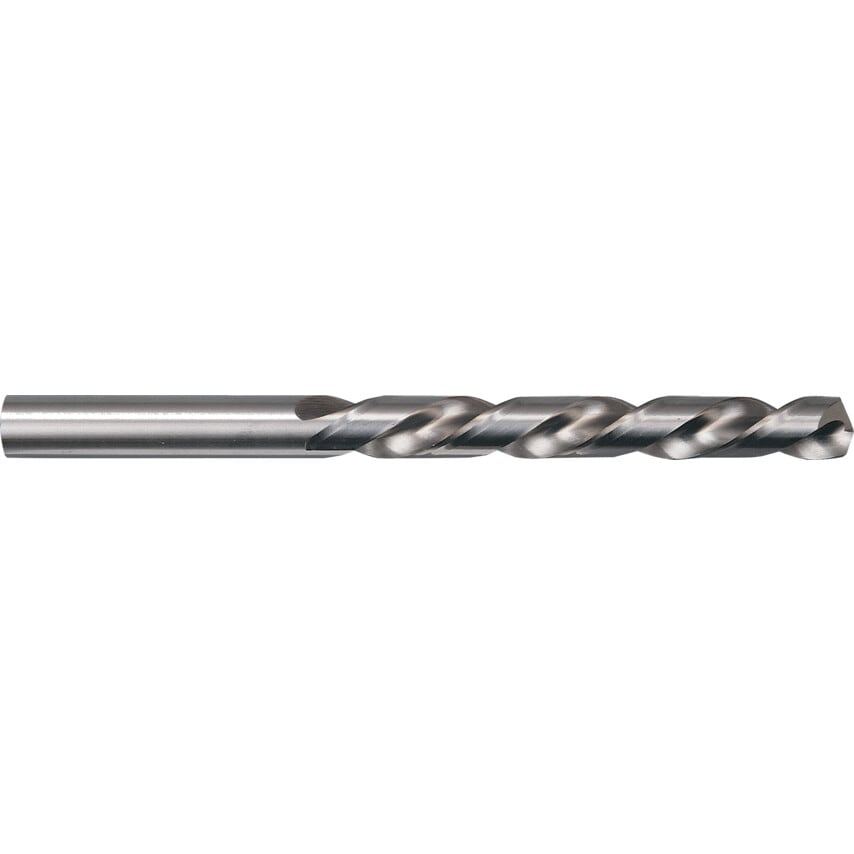

Series 605 HSS-Co Straight Shank Jobber Drills
Bright Finish - Inch
Rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels. Limited suitability for special alloys such as hastaloy, inconel, nimonic etc. Manufactured to DIN338.
Features and Benefits
Rigid HSS and Cobalt construction for strength in challenging applications
High-heat and wear resistance for prolonged tool lifespan
Large helix angle of 35 for greater cutting performance and chip removal
Standards
DIN338
Typical Applications
Titanium
Titanium alloys
Stainless steels
Heat resisting austenitic steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| Standards Met | DIN 338 |
| Coolant Delivery | External |
| Overall Length | 133mm |
| Web Thickness | Similar to Form C |
| Point Type | Conventional |
| Material | Cobalt High Speed Steel |
| Point Angle | 130\u00b0 |
| MFR Part No. | 00605 009.520 |
| Helix Angle | 35\u00b0 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Drill Diameter | 3/8in |
| Flute Length | 87mm |
| Series | 605 |
| Flute Type | Spiral |
| Shank Diameter Tolerance | F11 |
| Drill Diameter Tolerance | H8 |
| Product Type | Jobber Drills |
| Helix Type | High Helix |
| Finish/Coating | Bright |
| Flute Construction | Ground flutes |
