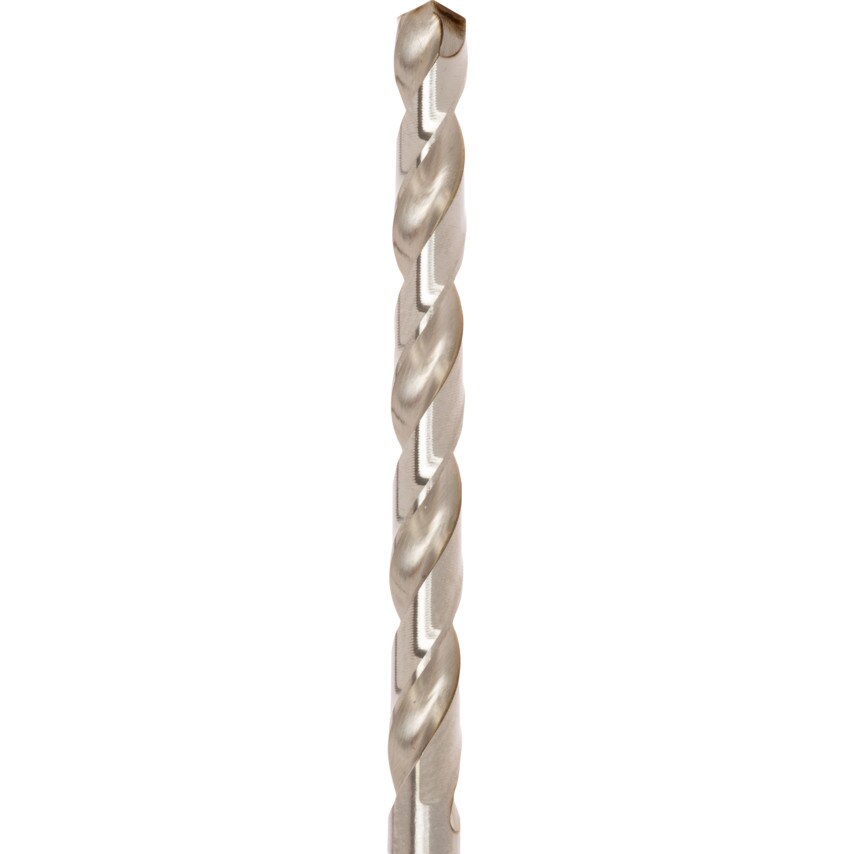

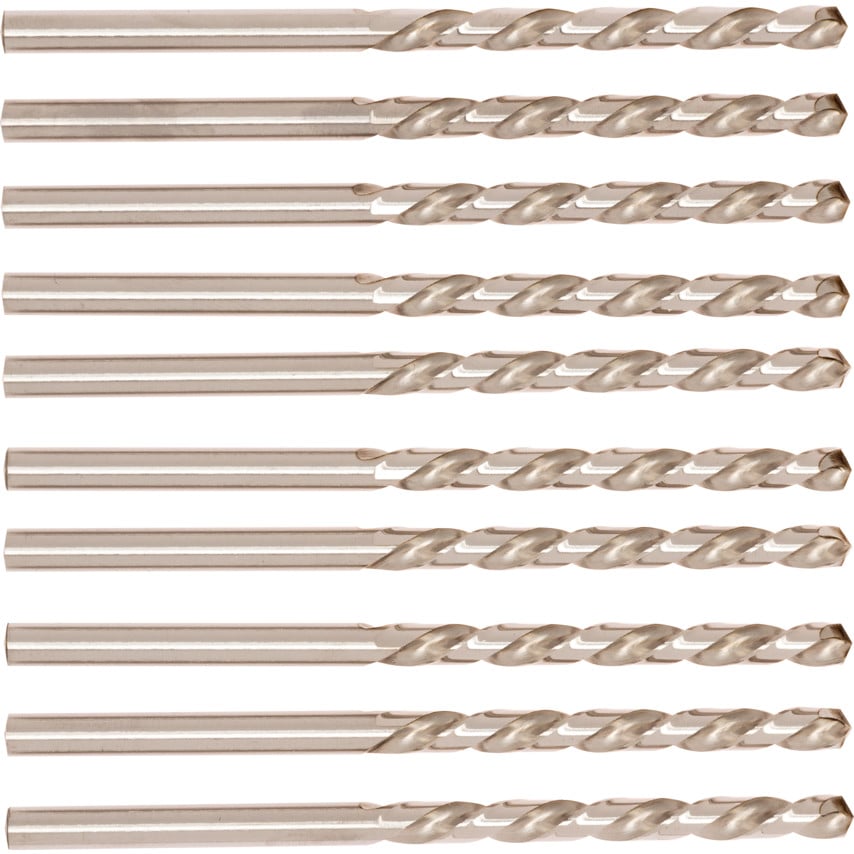

Series 605 HSS-Co Straight Shank Jobber Drills
Bright Finish - Inch
Rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels. Limited suitability for special alloys such as hastaloy, inconel, nimonic etc. Manufactured to DIN338.
Features and Benefits
Rigid HSS and Cobalt construction for strength in challenging applications
High-heat and wear resistance for prolonged tool lifespan
Large helix angle of 35 for greater cutting performance and chip removal
Standards
DIN338
Typical Applications
Titanium
Titanium alloys
Stainless steels
Heat resisting austenitic steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| Material | Cobalt High Speed Steel |
| Number of Flutes | 2 |
| Standards Met | DIN 338 |
| Flute Construction | Ground flutes |
| Helix Angle | 35\u00b0 |
| Overall Length | 75mm |
| Shank Diameter Tolerance | F11 |
| Cutting Direction | Right Hand |
| Flute Length | 43mm |
| Product Type | Jobber Drills |
| Helix Type | High Helix |
| Coolant Delivery | External |
| Drill Diameter Tolerance | H8 |
| Drill Diameter | 3/32in |
| MFR Part No. | 00605 003.970 |
| Drill Diameter Inch | 3/32in |
| Flute Type | Spiral |
| Finish/Coating | Bright |
| Web Thickness | Similar to Form C |
| Point Angle | 130\u00b0 |
| Point Type | Conventional |
| Series | 605 |
