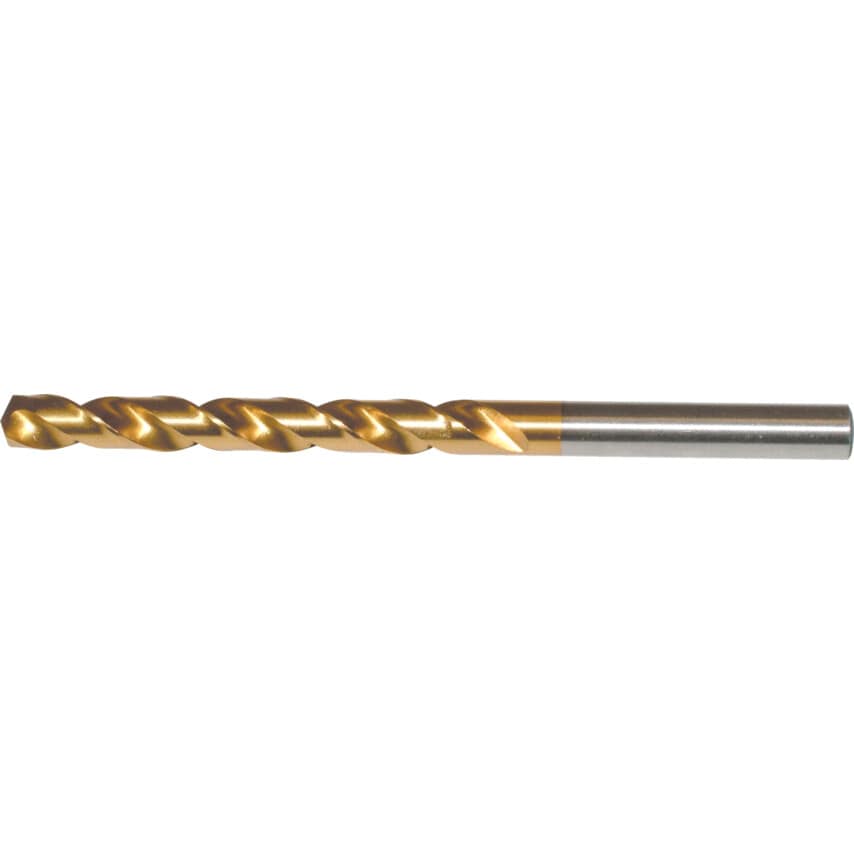

Series 1060 HSS-Co Straight Shank High Helix Jobber Drills
TiN Coated - Metric
Heavy duty drill for stainless steel, heat and acid-resistant steels, short chipping and high strength steels. High heat resistance allows drilling in titanium and titanium alloys. TiN coating provides longer tool life.
Point angle: 130. Helix angle: high. Web thickness: strengthened. Relief angle: normal.
Tolerance of diameter: h8. Tolerance of shank: f11. Manufactured to DIN 338RN.
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Web Thickness | Form C |
| Flute Length | 43mm |
| Finish/Coating | TiN |
| Flute Type | Spiral |
| Number of Pieces | 10 |
| Helix Type | High Helix |
| Drill Diameter Tolerance | H8 |
| Point Type | Split Point |
| Depth x Diameter Ratio | 4xD |
| ISO Category | K | M | P |
| Drill Diameter | 4mm |
| Helix Angle | 37\u00b0 |
| Drill Diameter Metric | 4mm |
| Shank Type | Straight |
| Overall Length | 75mm |
| Series | 1060 |
| Shank Diameter Tolerance | F11 |
| Material Grade | Cobalt High Speed Steel |
| Flute Construction | Ground flutes |
| Manufacturer Grade | DIN338 |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Number of Flutes | 2 |
| Point Angle | 130\u00b0 |
| Material | Cobalt High Speed Steel |
