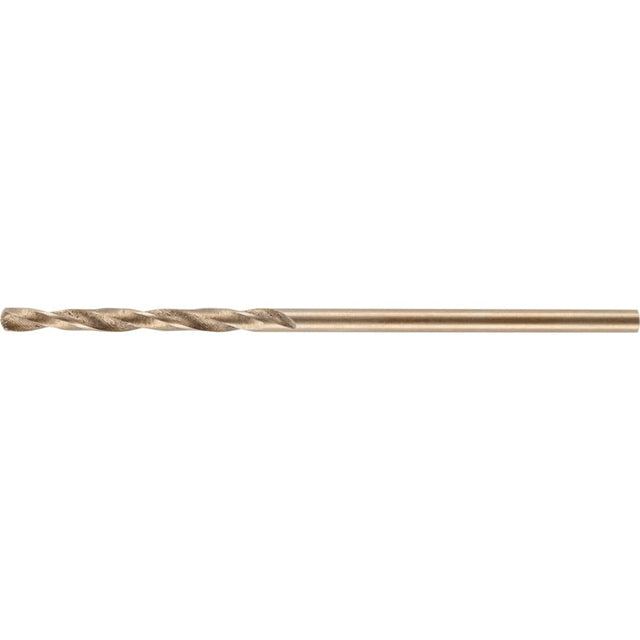

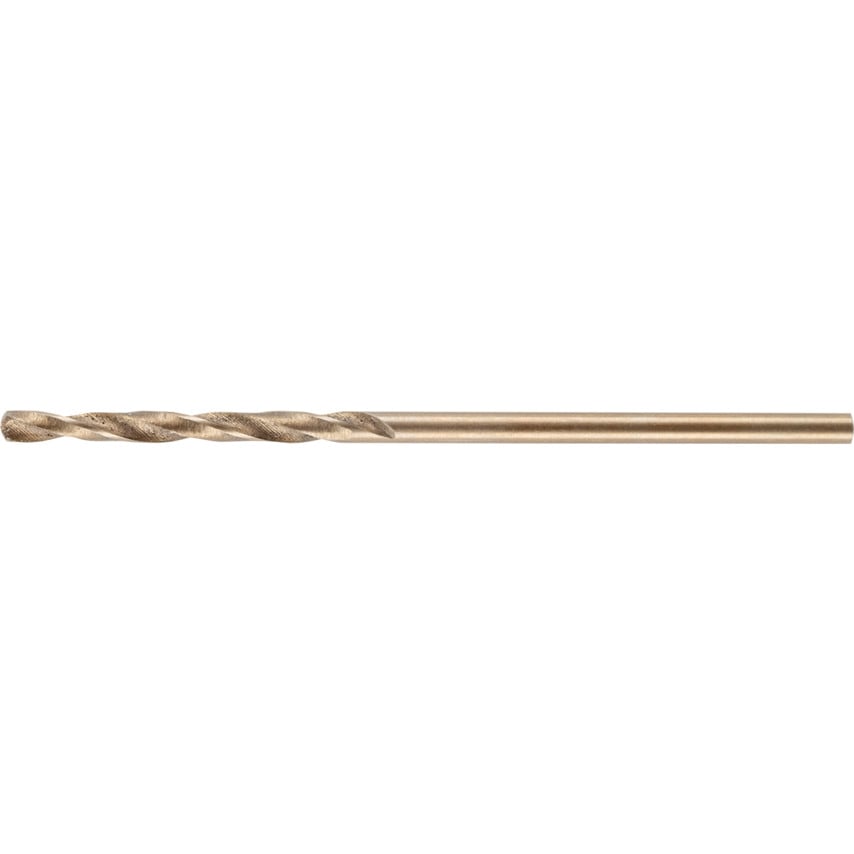

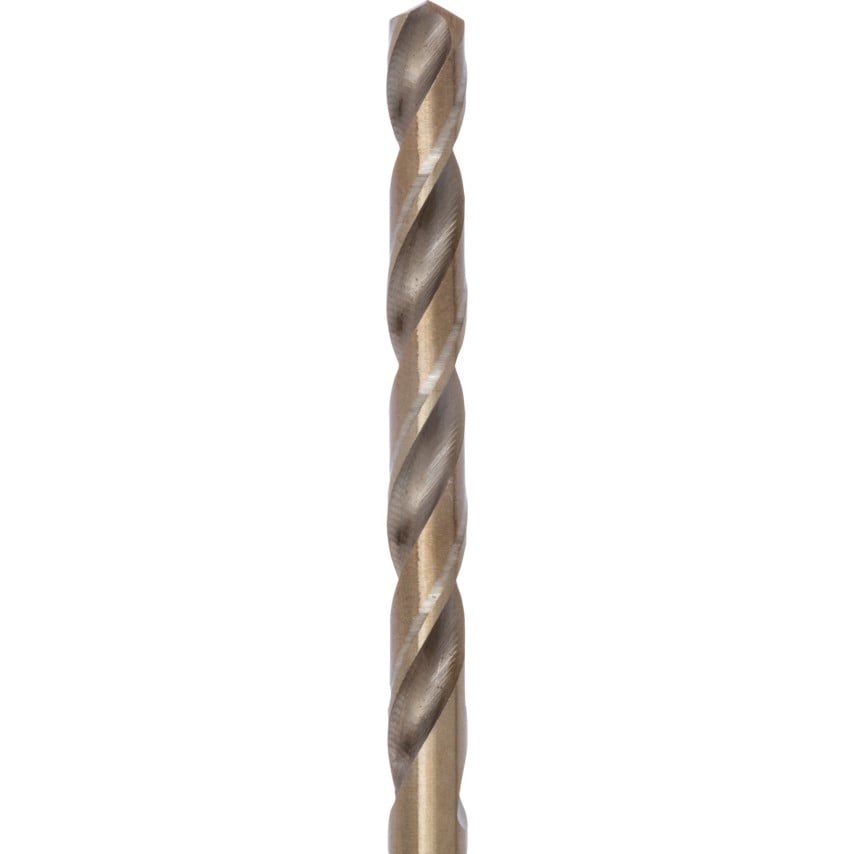

Deep hole drill with high heat resistance to drill non alloyed and alloyed steels as well as long chipping materials with tensile strength up to 1,300N/mm2. Because of the special point design with web thinning form S optimised chip breaking and reduced feed force and torque. Ample chip space enables drilling over five times diameter deep without pecking.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
High heat resistance for prolonged tool lifespan
Maximum material tensile strength 1,300 N/mm2
Steam tempered finish for increased wear resistance
Typical Applications
Drilling
Standards
BS 328, DIN 338
| Helix Type | High Helix |
| Shank Diameter Tolerance | F11 |
| Coolant Delivery | External |
| Drill Diameter Metric | 5mm |
| Finish/Coating | Bronze Oxide |
| Flute Construction | Ground flutes |
| Drill Diameter Tolerance | H8 |
| Product Type | Cobalt Drills |
| Overall Length | 86mm |
| Helix Angle | 38\u00b0 |
| Flute Type | Parabolic |
| Material | Cobalt High Speed Steel |
| Standards Met | BS 328 | DIN 338 |
| Point Angle | 130\u00b0 |
| Web Thickness | Strengthened Form S |
| Cutting Direction | Right Hand |
| Drill Diameter | 5mm |
| Point Type | Split Point |
| Flute Length | 52mm |
| Number of Flutes | 2 |
