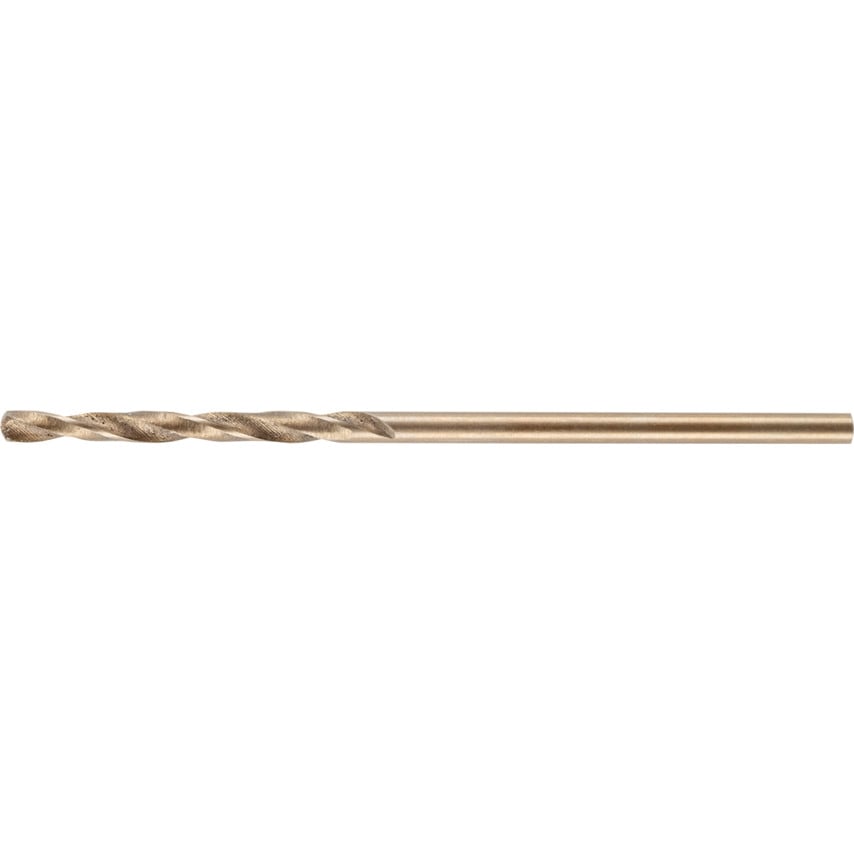

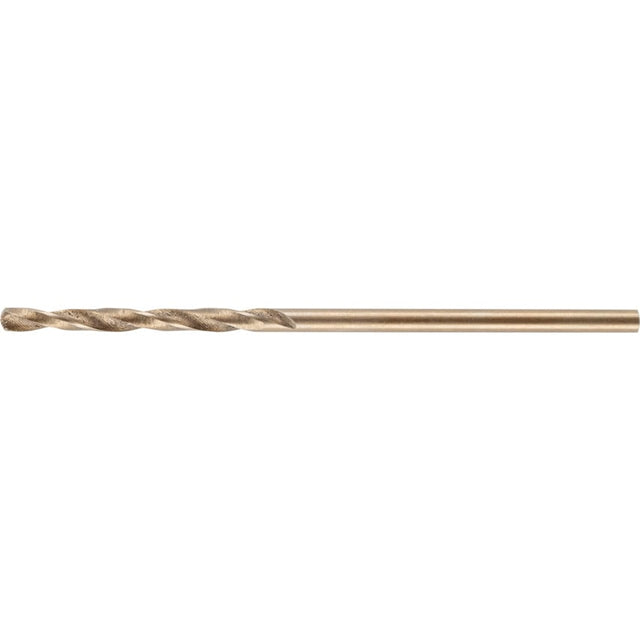

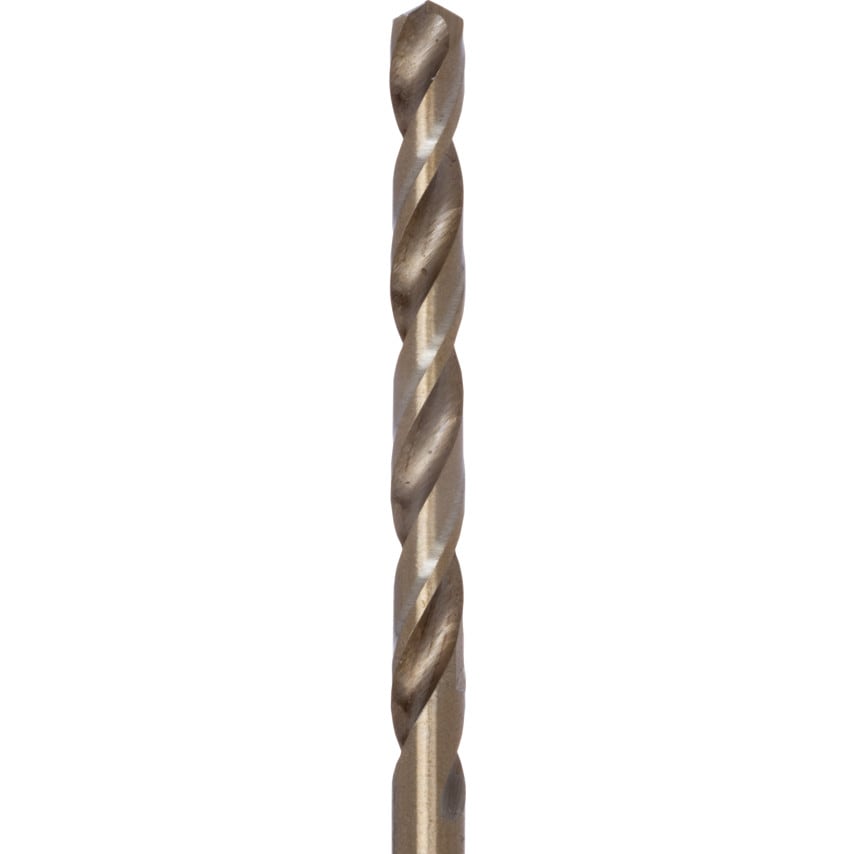

Deep hole drill with high heat resistance to drill non alloyed and alloyed steels as well as long chipping materials with tensile strength up to 1,300N/mm2. Because of the special point design with web thinning form S optimised chip breaking and reduced feed force and torque. Ample chip space enables drilling over five times diameter deep without pecking.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
High heat resistance for prolonged tool lifespan
Maximum material tensile strength 1,300 N/mm2
Steam tempered finish for increased wear resistance
Typical Applications
Drilling
Standards
BS 328, DIN 338
| Shank Diameter Tolerance | F11 |
| Web Thickness | Strengthened Form S |
| Flute Construction | Ground flutes |
| Flute Type | Parabolic |
| Product Type | Cobalt Drills |
| Drill Diameter | 3mm |
| Drill Diameter Metric | 3mm |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance | H8 |
| Helix Type | High Helix |
| Point Type | Split Point |
| Finish/Coating | Bronze Oxide |
| Helix Angle | 38\u00b0 |
| Material | Cobalt High Speed Steel |
| Standards Met | BS 328 | DIN 338 |
| Coolant Delivery | External |
| Number of Flutes | 2 |
| Point Angle | 130\u00b0 |
| Flute Length | 33mm |
| Overall Length | 61mm |
