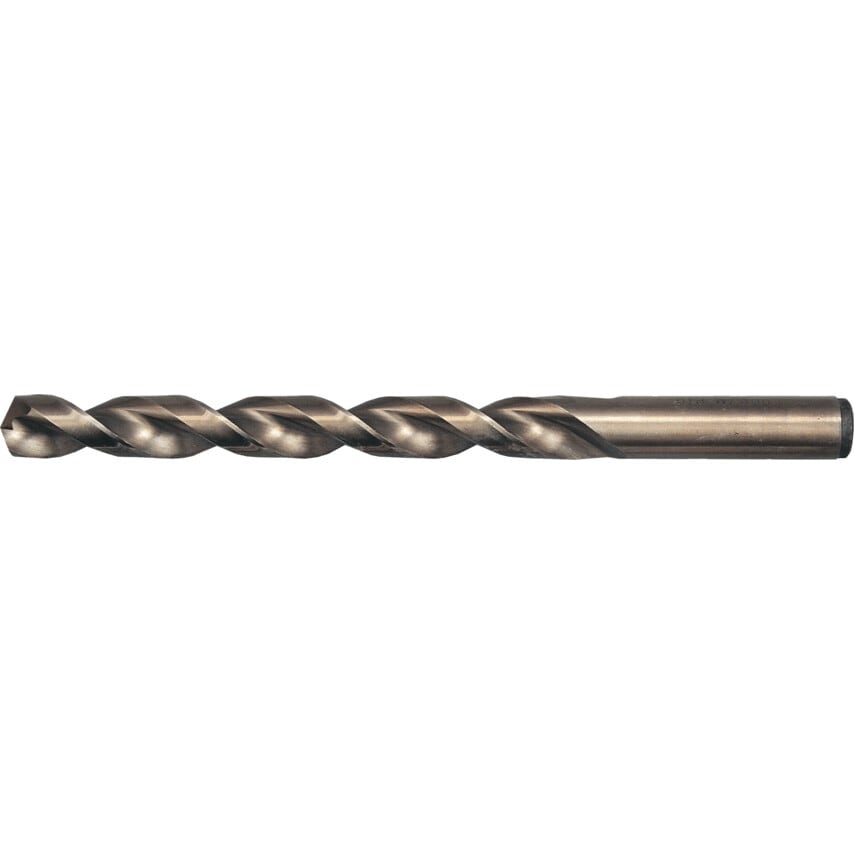

Deep hole drill with high heat resistance to drill non alloyed and alloyed steels as well as long chipping materials with tensile strength up to 1,300N/mm2. Because of the special point design with web thinning form S optimised chip breaking and reduced feed force and torque. Ample chip space enables drilling over five times diameter deep without pecking.
Features and Benefits
High speed steel and cobalt construction for increased tool toughness
High heat resistance for prolonged tool lifespan
Maximum material tensile strength 1,300 N/mm2
Steam tempered finish for increased wear resistance
Typical Applications

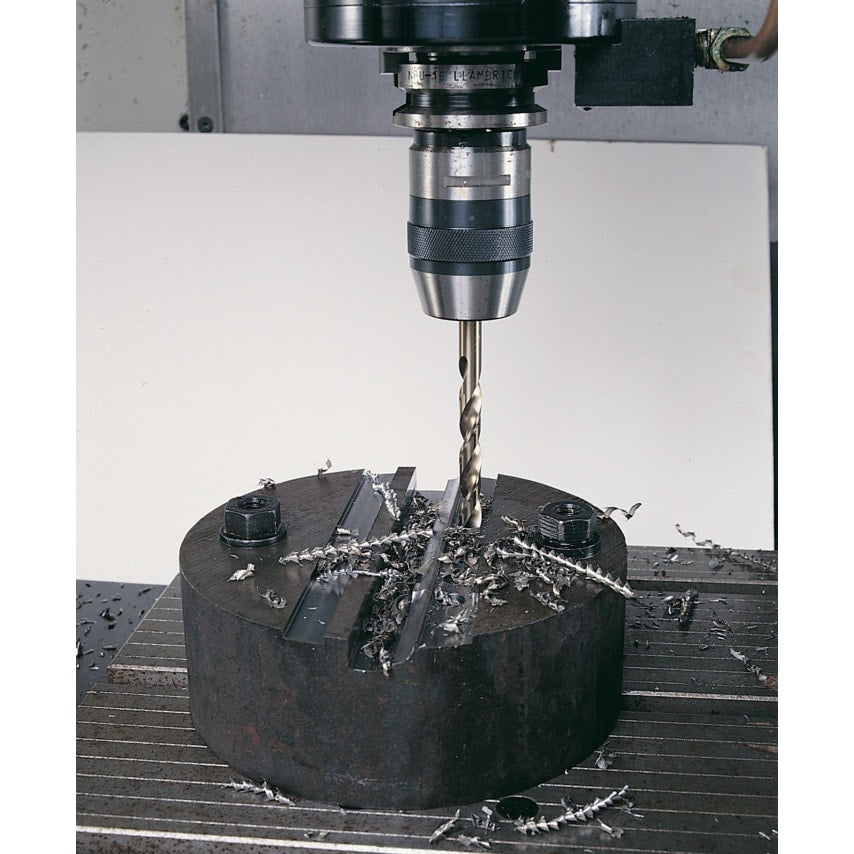

Drilling
Standards
BS 328, DIN 338
| Helix Angle | 38\u00b0 |
| Helix Type | High Helix |
| Point Angle | 130\u00b0 |
| Standards Met | BS 328 | DIN 338 |
| Drill Diameter Metric | 6mm |
| Web Thickness | Strengthened Form S |
| Drill Diameter Tolerance | H8 |
| Number of Flutes | 2 |
| Flute Construction | Ground flutes |
| Overall Length | 93mm |
| Drill Diameter | 6mm |
| Shank Diameter Tolerance | F11 |
| Coolant Delivery | External |
| Flute Length | 57mm |
| Point Type | Split Point |
| Cutting Direction | Right Hand |
| Product Type | Cobalt Drills |
| Material | Cobalt High Speed Steel |
| Flute Type | Parabolic |
| Finish/Coating | Bronze Oxide |
