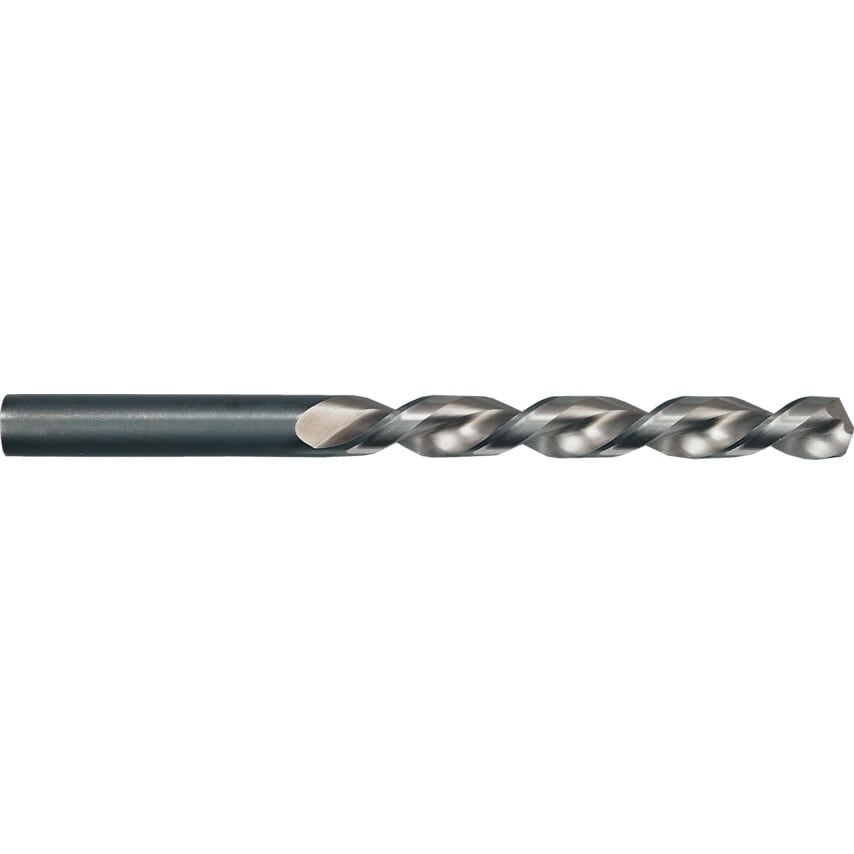

Series 658 HSS-Co High Helix (Parabolic Flute) Straight Shank Jobber Drills
Tin Coated -Inch
High heat resistant drill with wide chip space. Suitable for drilling alloyed and unalloyed steels and castings with a high tensile strength over 800N/mm2. Particularly suitable for drilling hot and cold rolled steels. Manufactured to DIN 338.Type 658
| Drill Diameter | 27/64in |
| Drill Diameter Tolerance | H8 |
| Overall Length | 142mm |
| Material | Cobalt High Speed Steel |
| Point Angle | 130\u00b0 |
| Finish/Coating | TiN |
| Coolant Delivery | External |
| Product Type | Jobber Drills |
| Flute Length | 94mm |
| Flute Type | Parabolic |
| Web Thickness | Form A |
| Number of Flutes | 2 |
| Flute Construction | Ground flutes |
| Standards Met | DIN 338 |
| Series | 658 |
| Shank Type | Straight |
| Cutting Direction | Right Hand |
