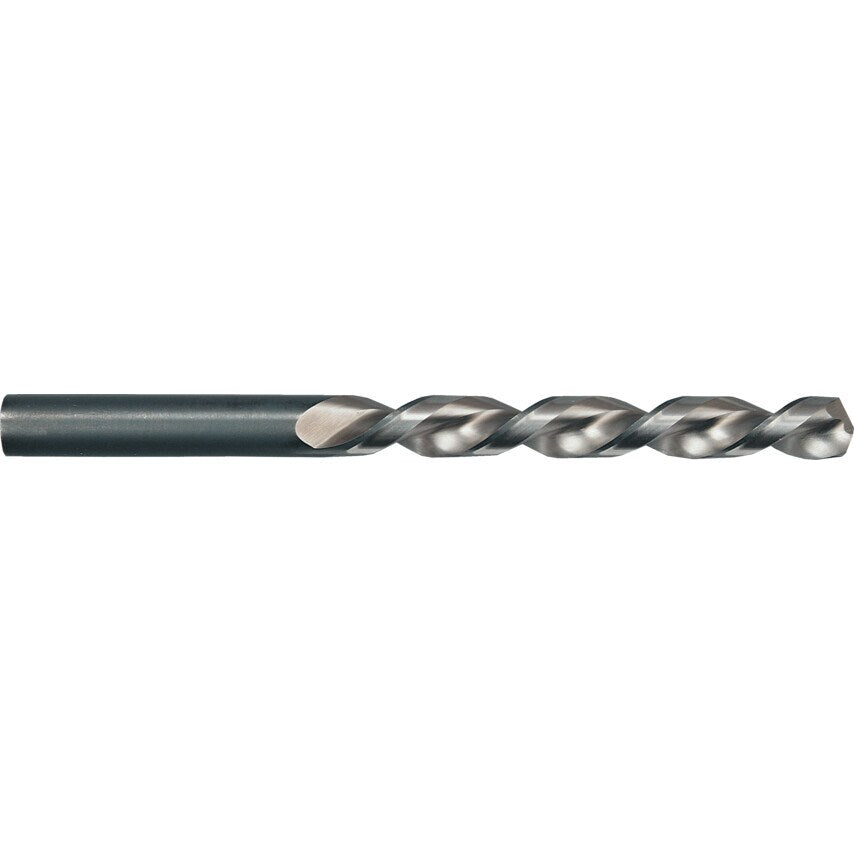

Series 658 HSS-Co High Helix (Parabolic Flute) Straight Shank Jobber Drills
Tin Coated -Inch
High heat resistant drill with wide chip space. Suitable for drilling alloyed and unalloyed steels and castings with a high tensile strength over 800N/mm2. Particularly suitable for drilling hot and cold rolled steels. Manufactured to DIN 338.Type 658
| Material | Cobalt High Speed Steel |
| Helix Type | High Helix |
| Shank Diameter Tolerance | F11 |
| Flute Length | 36mm |
| Product Type | S-Drill |
| Standards Met | DIN 338 |
| Drill Diameter Tolerance | H8 |
| Point Type | Conventional |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Web Thickness | Form A |
| Number of Flutes | 2 |
| Drill Diameter | 1/8in |
| Flute Construction | Ground flutes |
| Coolant Delivery | External |
| MFR Part No. | 00658 003.170 |
| Overall Length | 65mm |
| Point Angle | 130\u00b0 |
| Finish/Coating | TiN |
| Series | 658 |
