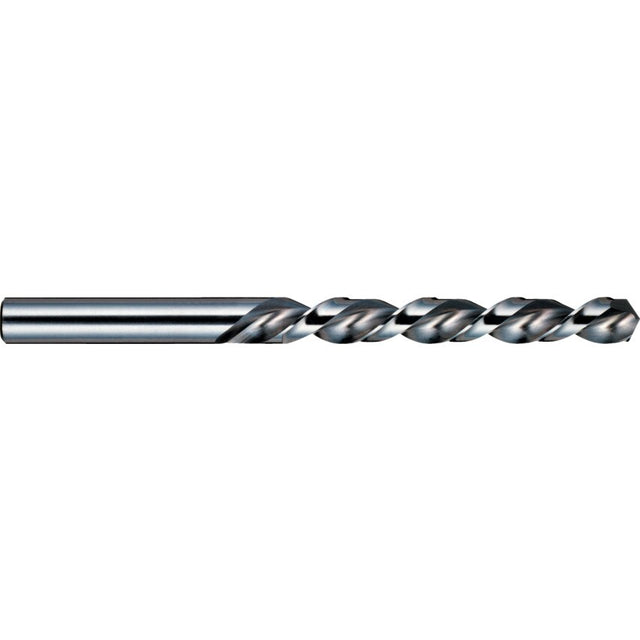

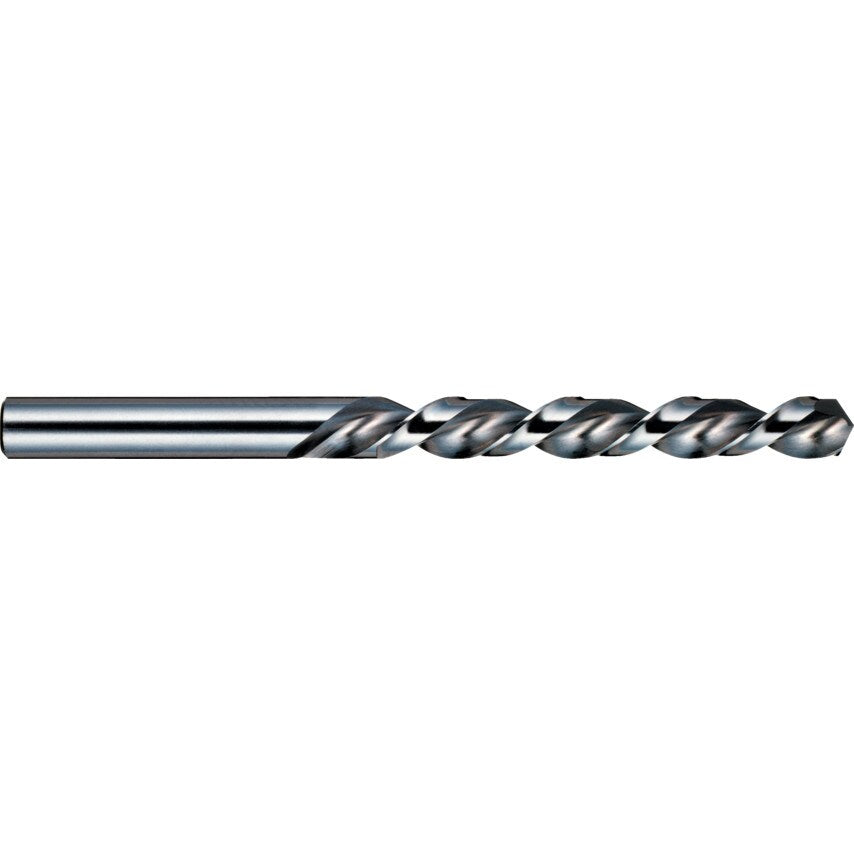

Series A900 HSS-Co Parabolic Flute PFX Straight Shank Jobber Drills - Metric
Metric
High productivity 'one-hit' drilling to 6 X D.
Excellent performance across a wide range of materials.
Parabolic flute design promotes constant chip flow.
Size range: 1.0 - 20.0mm, 3/64" - 25/32"
| Flute Length | 43mm |
| Depth x Diameter Ratio | 6xD |
| Coolant Delivery | External |
| Helix Type | High Helix |
| Finish/Coating | Bright |
| Standards Met | DIN/ANSI |
| Flute Type | Parabolic |
| Drill Diameter Tolerance | H8 |
| Flute Construction | Ground flutes |
| MFR Part No. | A9004.0 |
| Drill Diameter | 4mm |
| Drill Diameter Metric | 4mm |
| Shank Diameter Tolerance | H8 |
| Overall Length | 75mm |
| Size | 4mm |
| Cutting Direction | Right Hand |
| Series | A900 |
| Number of Flutes | 2 |
| Point Angle | 130\u00b0 |
| Material | Cobalt High Speed Steel |
| Point Type | PFX |
| Product Type | Jobber Drills |
