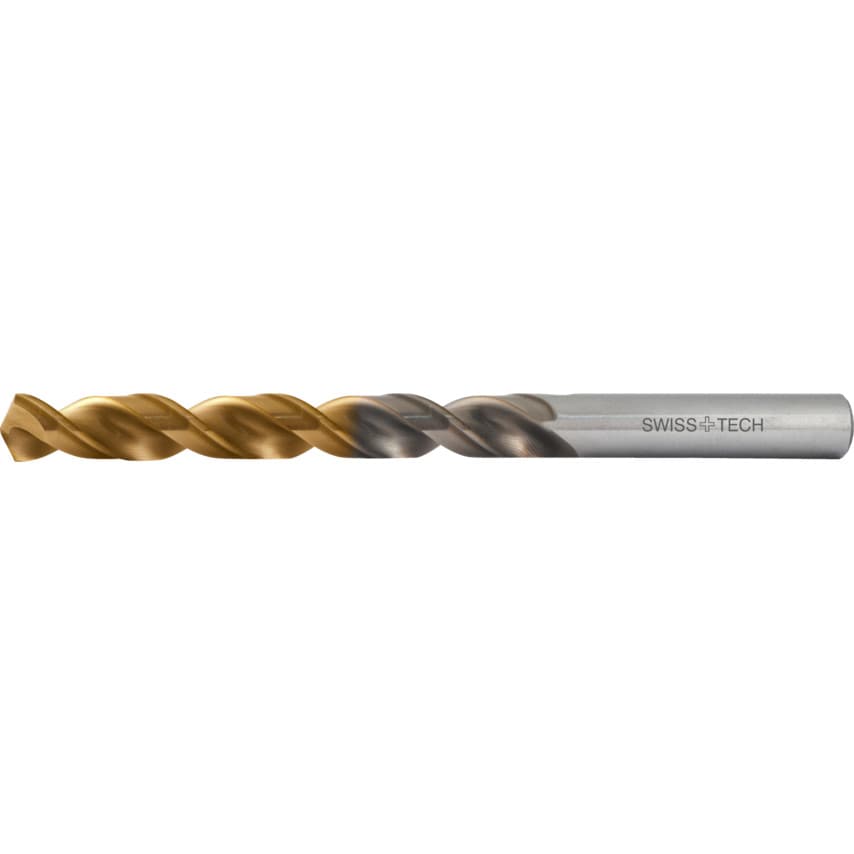

Series 1014 HSS-Co Straight Shank High Helix Jobber Drills
TiN Tipped - Metric
Heavy-duty drill for stainless steel, heat and acid-resistant steels, short chipping and high strength steels. High heat resistance allows drilling in titanium and titanium alloys. TiN coating provides longer tool life. Point angle: 130. Helix angle: High. Web thickness: Strengthened. Relief angle: Normal. Tolerance of diameter: h8. Tolerance of shank: f11. Supply unit. All diameters - 1 pce. Manufactured to DIN338RN.
| Standards Met | BS 328 | DIN 338 | DIN 1412C |
| Drill Diameter Metric | 9mm |
| Cutting Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| Flute Length | 81mm |
| Finish/Coating | TiN Tipped |
| Coolant Delivery | External |
| Helix Type | High Helix |
| Shank Diameter Tolerance | F11 |
| Overall Length | 125mm |
| Flute Construction | Ground flutes |
| Drill Diameter | 9mm |
| Flute Type | Spiral |
| Point Angle | 130\u00b0 |

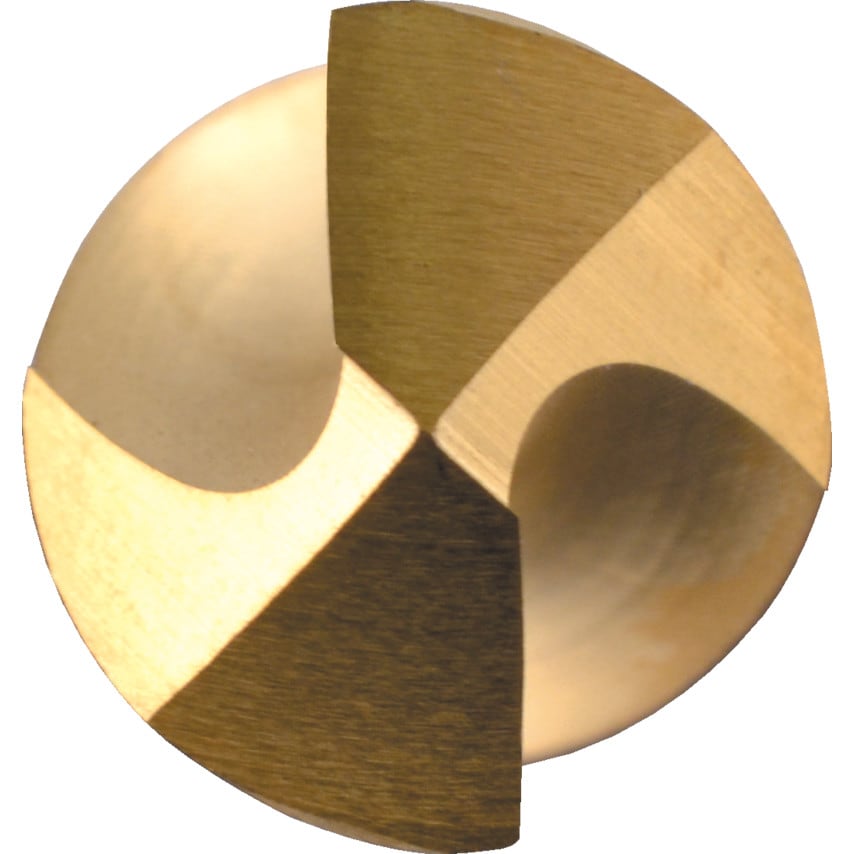

| Point Type | Split Point |
| Drill Diameter Tolerance | H8 |
| Web Thickness | Form C |
| Number of Flutes | 2 |
| Series | 1014 |
