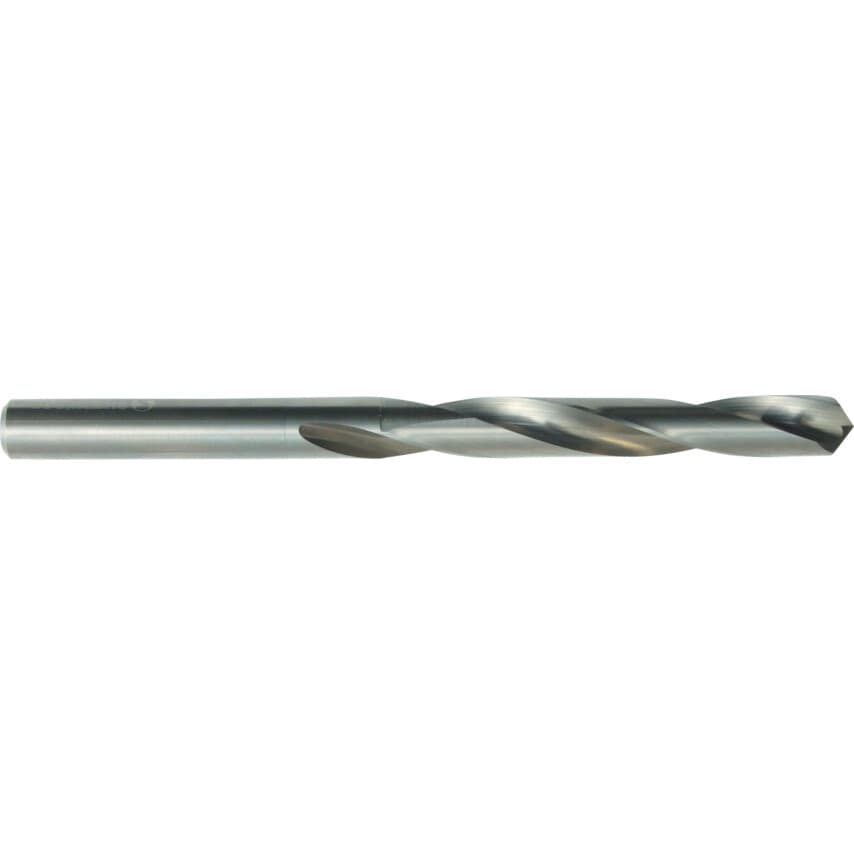

Series J102 are general purpose drills for drilling a wide variety of metallic and non-metallic materials.
Manufactured from solid carbide for increased toughness they conform to BS 328, DIN 338 standards.
Features and Benefits
Solid carbide construction for toughness
Suitable for general purpose use on metallic and non-metallic materials
Standards
Manufacturing Standard: BS 328, DIN 338.
| Flute Length | 81mm |
| Point Type | Four Facet |
| Material Grade | Micrograin |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Overall Length | 125mm |
| Helix Type | Normal Helix |
| Drill Diameter | 9mm |
| Coolant Delivery | External |
| Series | J102 |
| Finish/Coating | Bright |
| Material | Carbide |
| Flute Construction | Ground flutes |
| Point Angle | 118\u00b0 |
| Number of Flutes | 2 |
| Standards Met | BS 328 | DIN 338 |
| Helix Angle | 20\u00b0 |
| Drill Diameter Tolerance | H7 |
