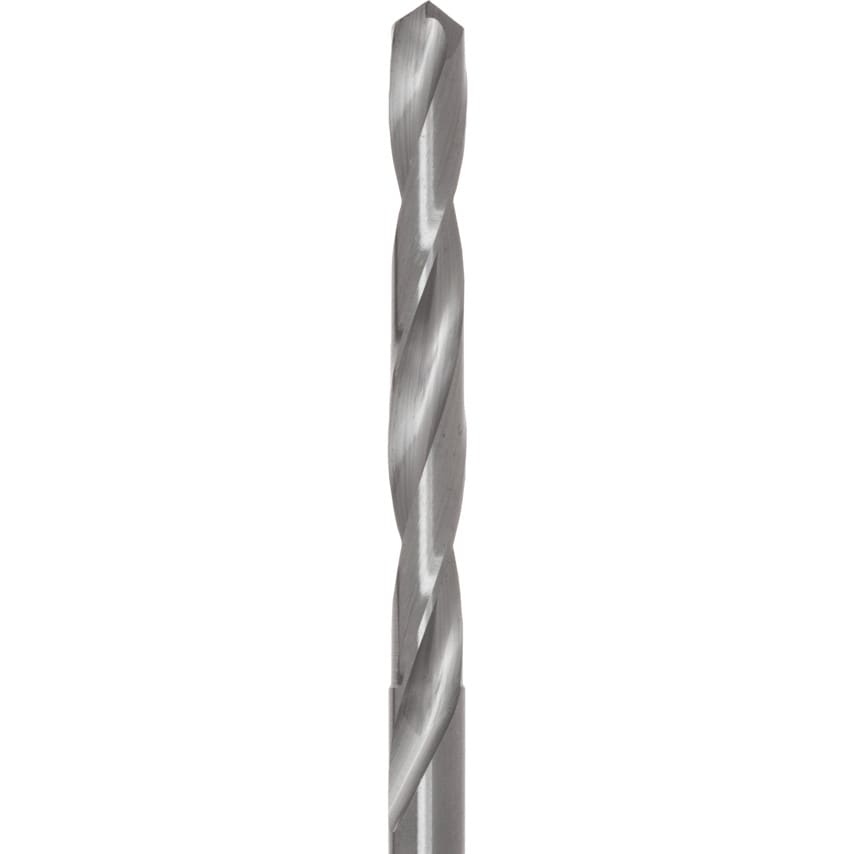

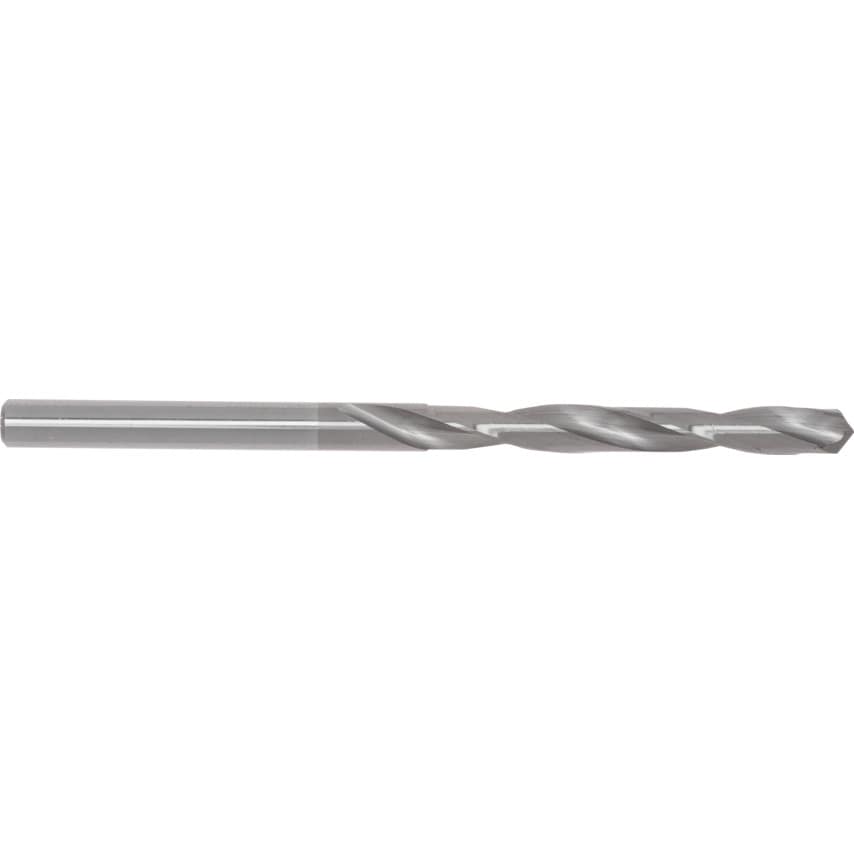

Series J102 are general purpose drills for drilling a wide variety of metallic and non-metallic materials.
Manufactured from solid carbide for increased toughness they conform to BS 328, DIN 338 standards.
Features and Benefits
Solid carbide construction for toughness
Suitable for general purpose use on metallic and non-metallic materials
Standards
Manufacturing Standard: BS 328, DIN 338.
| Standards Met | BS 328 | DIN 338 |
| Drill Diameter | 5mm |
| Drill Diameter Tolerance | H7 |
| Point Type | Four Facet |
| Helix Type | Normal Helix |
| Number of Flutes | 2 |
| Finish/Coating | Bright |
| Point Angle | 118\u00b0 |
| Material | Carbide |
| Overall Length | 86mm |
| Helix Angle | 20\u00b0 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Series | J102 |
| Material Grade | Micrograin |
| Coolant Delivery | External |
| Flute Length | 52mm |
| Flute Construction | Ground flutes |
