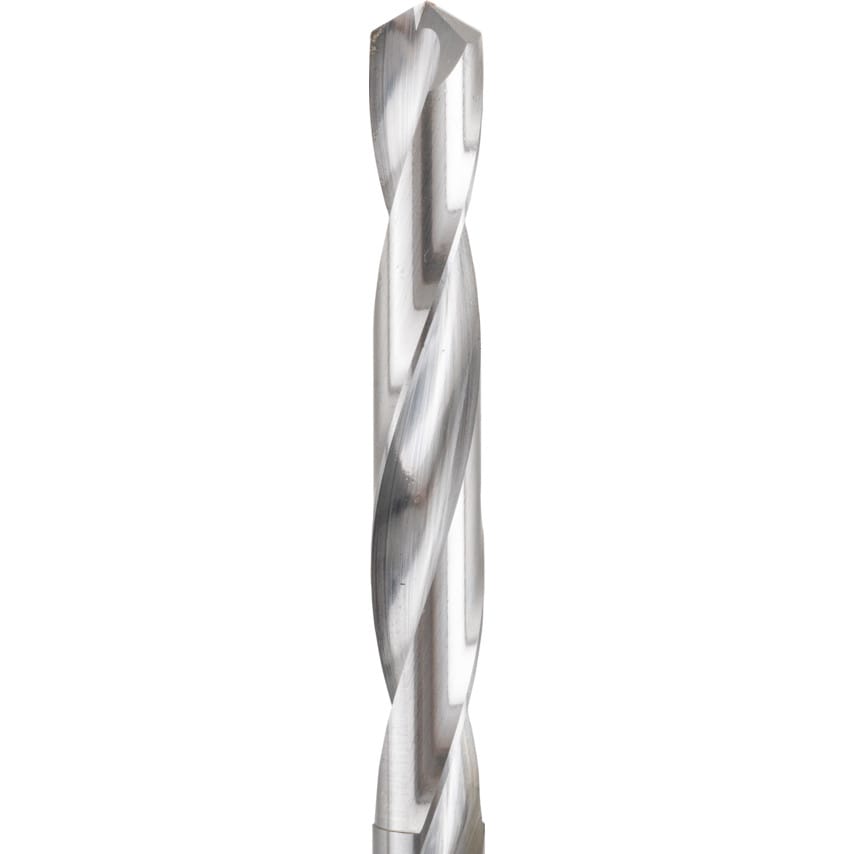

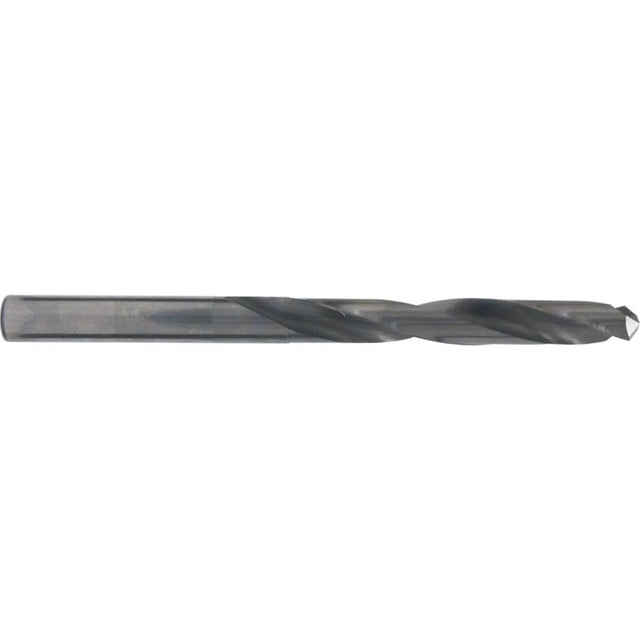

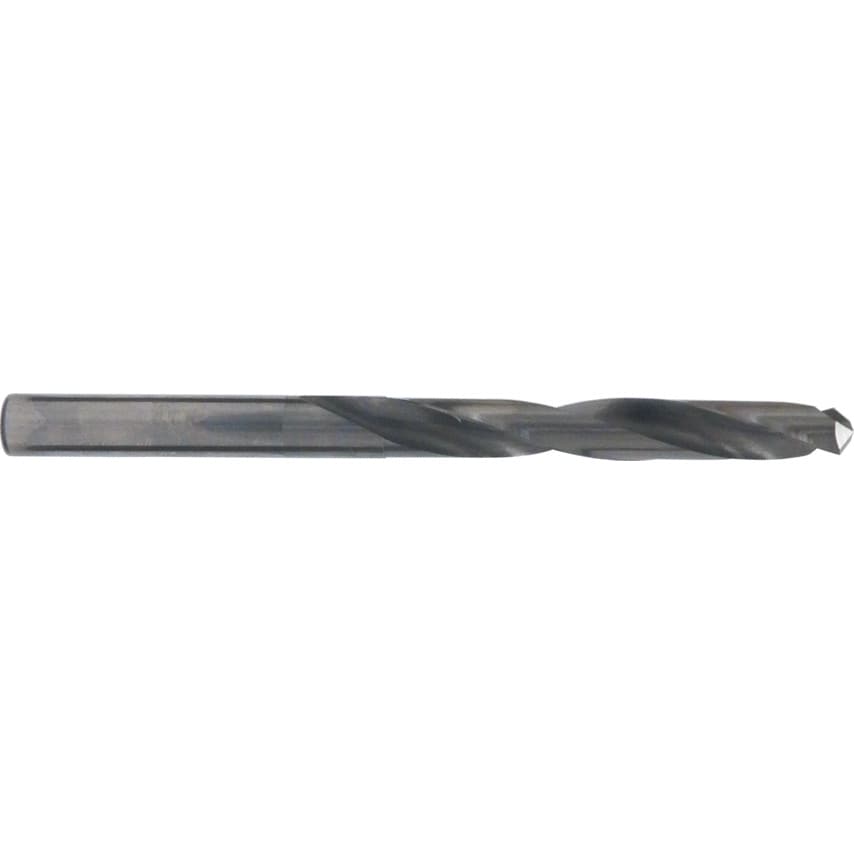

Series J102 are general purpose drills for drilling a wide variety of metallic and non-metallic materials.
Manufactured from solid carbide for increased toughness they conform to BS 328, DIN 338 standards.
Features and Benefits
Solid carbide construction for toughness
Suitable for general purpose use on metallic and non-metallic materials
Standards
Manufacturing Standard: BS 328, DIN 338.
| Flute Type | Spiral |
| Helix Angle | 20\u00b0 |
| Point Angle | 118\u00b0 |
| Number of Flutes | 2 |
| Series | J102 |
| Material Grade | Micrograin |
| Drill Diameter Tolerance | H7 |
| Overall Length | 133mm |
| Material | Carbide |
| Flute Construction | Ground flutes |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Standards Met | BS 328 | DIN 338 |
| Drill Diameter | 10mm |
| Coolant Delivery | External |
| Point Type | Four Facet |
| Flute Length | 87mm |
| Helix Type | Normal Helix |
