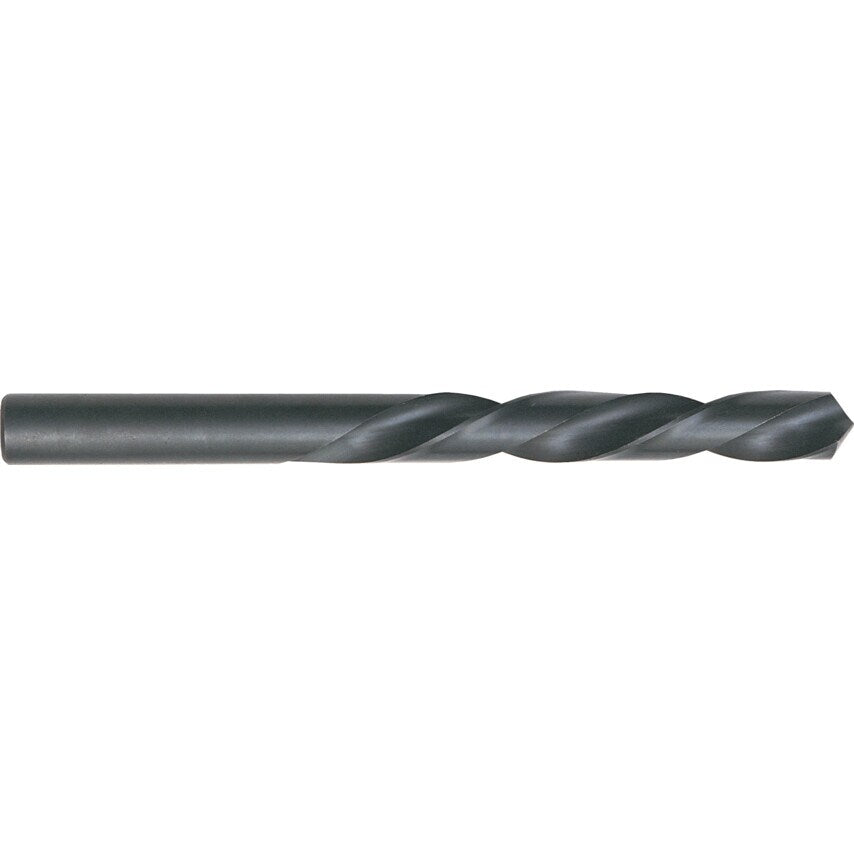

The Series 205 range of jobber drills from Guhring are suitable for drilling steel, cast steel, alloyed and unalloyed, grey cast iron, spheroidal iron, sintered powder metal, German silver and graphite. Featuring a hardy HSS construction and a steam oxide coating for greater wear, heat resistance and chip flow.
Features and Benefits
High-speed steel construction for increased rigidity
Steam (black) oxide coating for increased resistance to heat and wear
Improved chip flow ideal for use with ferrous materials
Standards
Manufactured to BS 328, DIN338RN
Typical Applications
Drilling
Cast iron
Steel
German silver
Graphite
| Material | HSS |
| Drill Diameter Inch | 9/16in |
| Drill Diameter | 9/16in |
| Helix Type | Normal Helix |
| Product Type | Jobber Drills |
| MFR Part No. | 00205 014.290 |
| Standards Met | BS 328 | DIN 338RN |
| Point Angle | 118\u00b0 |
| Coolant Delivery | External |
| Point Type | Standard |
| Number of Flutes | 2 |
| Series | 205 |
| Flute Length | 114mm |
| Flute Type | Spiral |
| Finish/Coating | Steam Oxide |
| Overall Length | 169mm |
| Cutting Direction | Right Hand |
| Flute Construction | Ground flutes |
