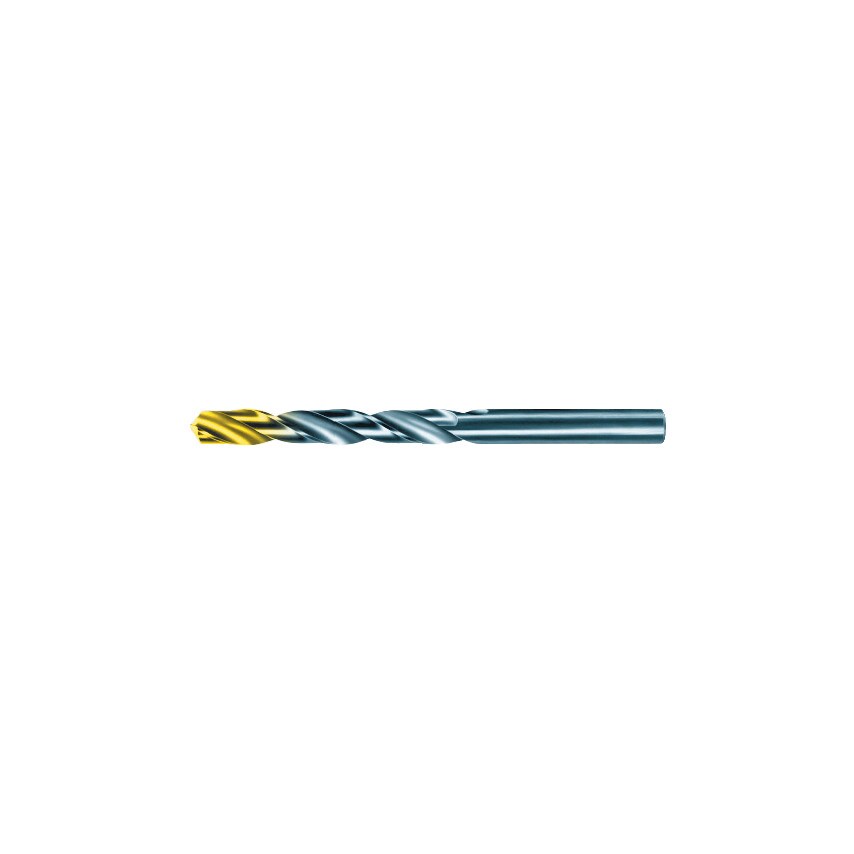

Guhring Series 9651 HSS TiN Tip Drills general purpose drills offer a longer tool life thanks to the TiN coted tip. Especially suitable for the machining of steel and cast steel (alloyed and unalloyed), grey cast iron, malleable cast iron, spheroidal graphite iron, sintered iron and graphite with high concentricity characteristics.
Features and Benefits
High speed steel construction for durability
TiN coated tip for increased tool life and performance
Ideal for drilling a range of materials including cast steel and iron
Standards
Manufactured to BS 328/DIN 338RN
Typical Applications
Steel
Steel alloys
Cast iron
Spheroidal graphite iron
Sintered iron
Graphite
Notes
Available in metric sizes 1.0mm - 16.0mm
| Drill Diameter Metric | 12.3mm |
| Point Type | Conventional |
| Series | 9651 |
| Web Thickness | Similar to Form C |
| Overall Length | 151mm |
| Point Angle | 118\u00b0 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Flute Construction | Ground flutes |
| Standards Met | DIN 338 |
| MFR Part No. | 09651 012.300 |
| Finish/Coating | TiN |
| Flute Length | 101mm |
| Shank Diameter Tolerance | F11 |
| Material | HSS |
| Helix Type | Normal Helix |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | H8 |
| Coolant Delivery | External |
| Drill Diameter | 12.3mm |
