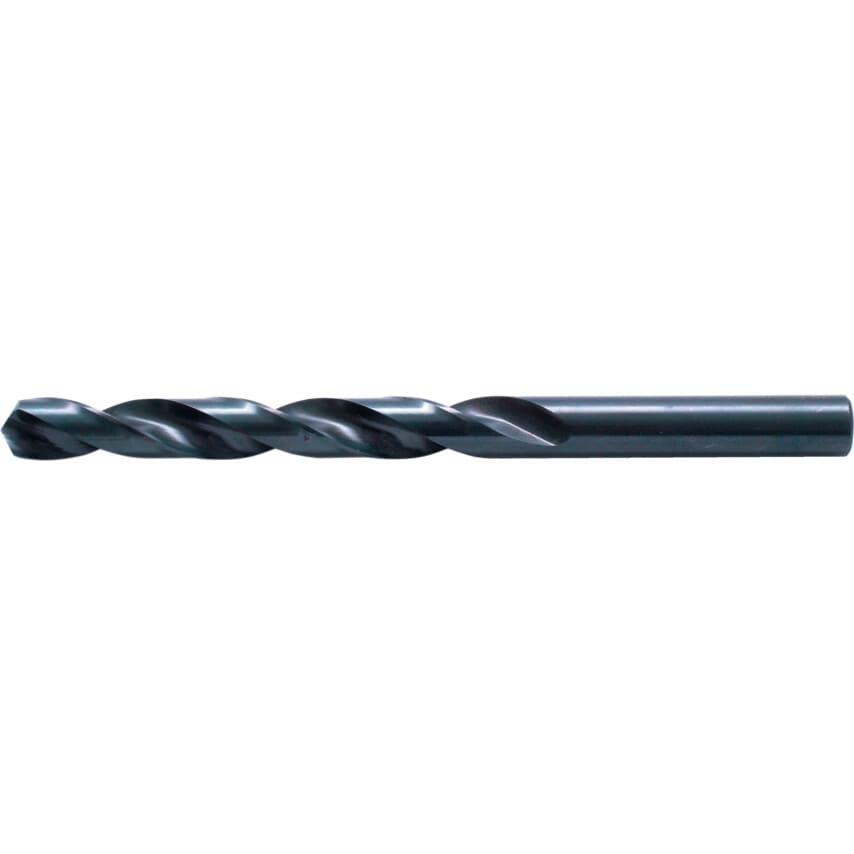

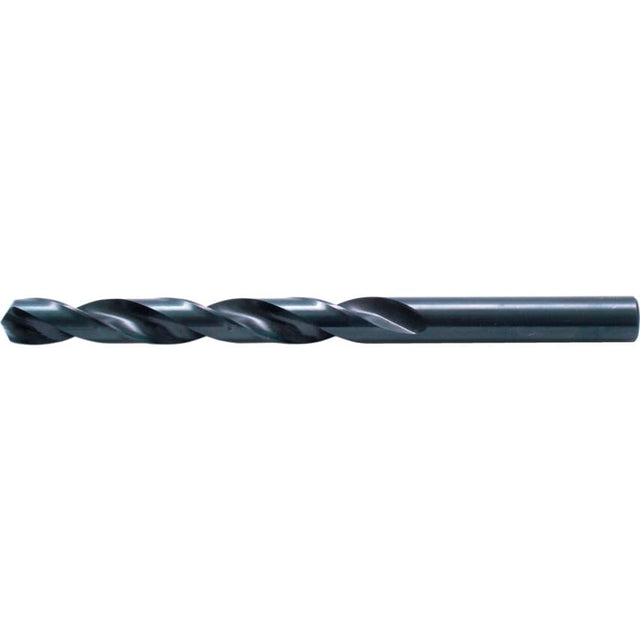

12.80mm HSS S/S Jobber Drill

The J100 Series are general purpose HSS straight shank drills with a black oxide finish. Ideal for applications involving steel (including cast steel) cast iron (including malleable cast iron) as well as nickel, brass aluminium alloys and graphite. Their 118 point allows for precise hole alignment and reliable cutting performance whilst the black oxide coating helps reduce heat by retaining coolant on the tool surface. The coating also helps reduce the risk of the tool staining. Features and Benefits High speed steel construction for increased tool durability Point angle of 118 for precise holemaking and precision cutting Black oxide coating helps aid chip flow, reduce heat and prevent staining Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite Typical Applications Cutting and drilling Ferrous materials Steel Iron Nickel Brass Aluminium alloy Graphite Notes Available in sizes 0.25mm -20.00mm Standards Manufactured to BS 328/DIN338RN

Drill Diameter Tolerance	H8
Web Thickness	Standard
Material Grade	Steel Grade 4241
Flute Length	101mm
Drill Diameter Metric	12.8mm
Coolant Delivery	External
Standards Met	BS 328 | DIN 338RN
Material	HSS
Helix Type	Normal Helix
Overall Length	151mm
Shank Diameter Tolerance	F11
Number of Flutes	2
Flute Type	Spiral
Point Type	Split Point
Cutting Direction	Right Hand
Point Angle	118\u00b0
Flute Construction	Ground flutes
Finish/Coating	Black Oxide
