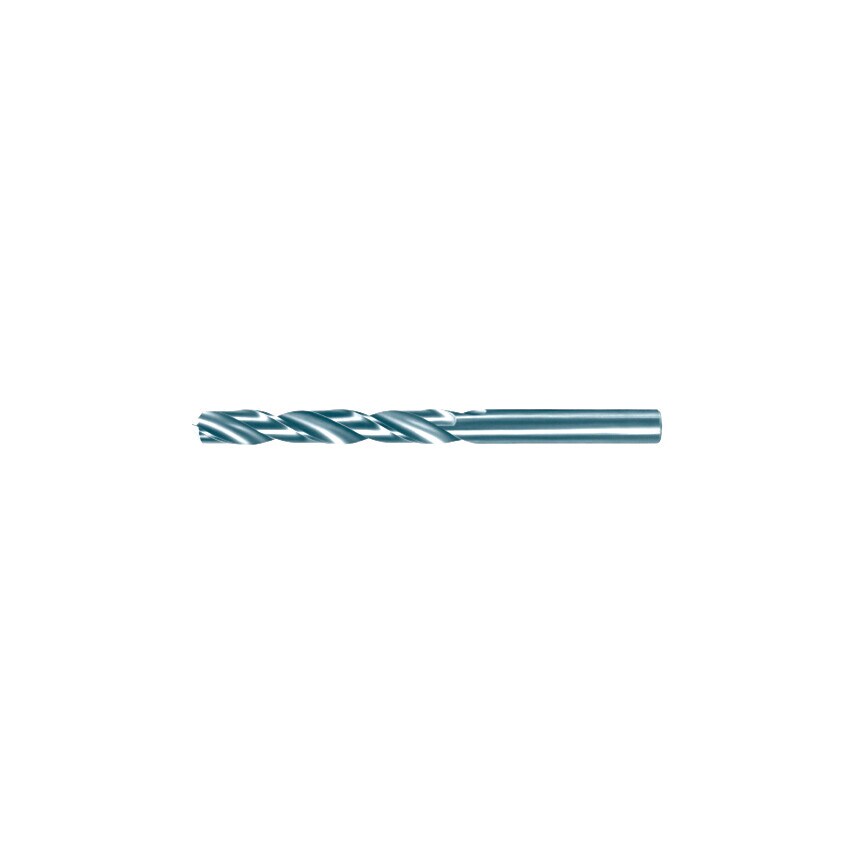

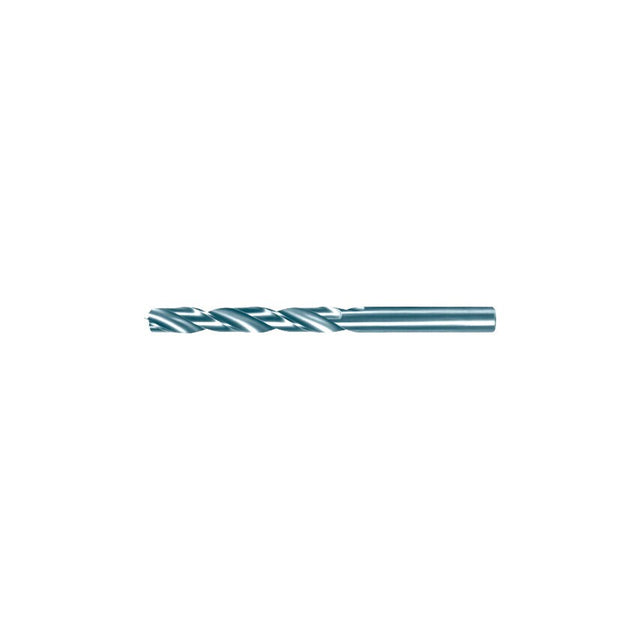

Series 732 Carbide Straight Shank Jobber Drill
Carbide general purpose jobber drill for use on universal steels,general steels & brass,cast iron and aluminium.
Metric
Bright Finish
5xD
118 faceted point
Web thinned >2.00mm
| Drill Diameter Metric | 8mm |
| Flute Construction | Ground flutes |
| Series | 732 |
| Product Type | Jobber Drills |
| Type | Jobber Drills |
| Overall Length | 117mm |
| Size | 8.0mm |
| Shank Type | Straight |
| Drill Diameter | 8.0mm |
| Helix Type | Normal Helix |
| Flute Length | 75mm |
| Point Type | Faceted |
| Coolant Delivery | External |
| Point Angle | 118\u00b0 |
| Flute Type | Spiral |
| Web Thickness | Web-thinned |
| Number of Flutes | 2 |
| Finish/Coating | Bright |
| Drill Diameter Tolerance | H7 |
| MFR Part No. | 00732 008.000 |
| Material | Carbide |
| Cutting Direction | Right Hand |
