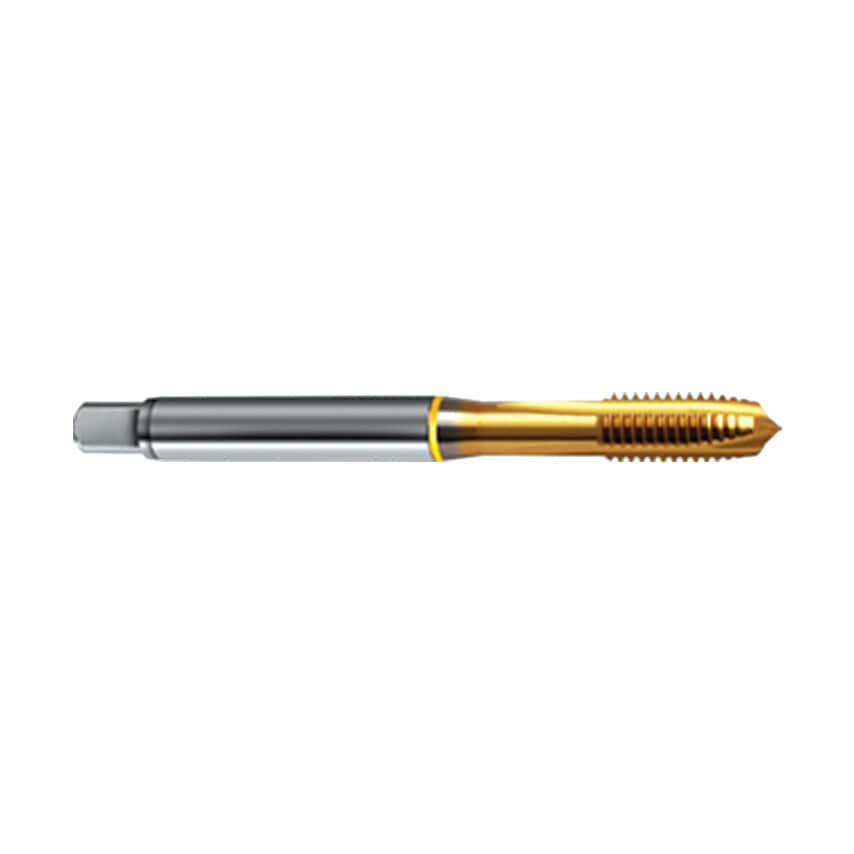

Guhring GoldRing PowerTaps are the universal tap for general purpose steels, tool steels, alloyed steels, stainless steels and aluminium.Features HSS-E TiN Coated Tolerance ISO 2/6H Form B Dimension manufactured to DIN 2184-1 Shank manufactured to DIN 371 For through holes Sizes M2 to M20
| Dimensions Standard | DIN 371 |
| Tap Type | Spiral Point |
| Threading Tap Type | Machine Tap |
| Width | 9mm |
| Overall Length | 110mm |
| Thread Length | 26mm |
| Series | 5736 |
| Shank Diameter | 12mm |
| Thread Standard | Metric Coarse |
| Finish/Coating | TiN |
| Material | Cobalt High Speed Steel |
| Coolant Delivery | External |
| Pitch | 2mm |
| Tapping Depth | 54mm |
| Thread Direction | Right Hnd |
| Number of Flutes | 3 |
| MFR Part No. | 05736 016.000 |
| Thread Size | M16 |
| Class of Fit | 6H |
