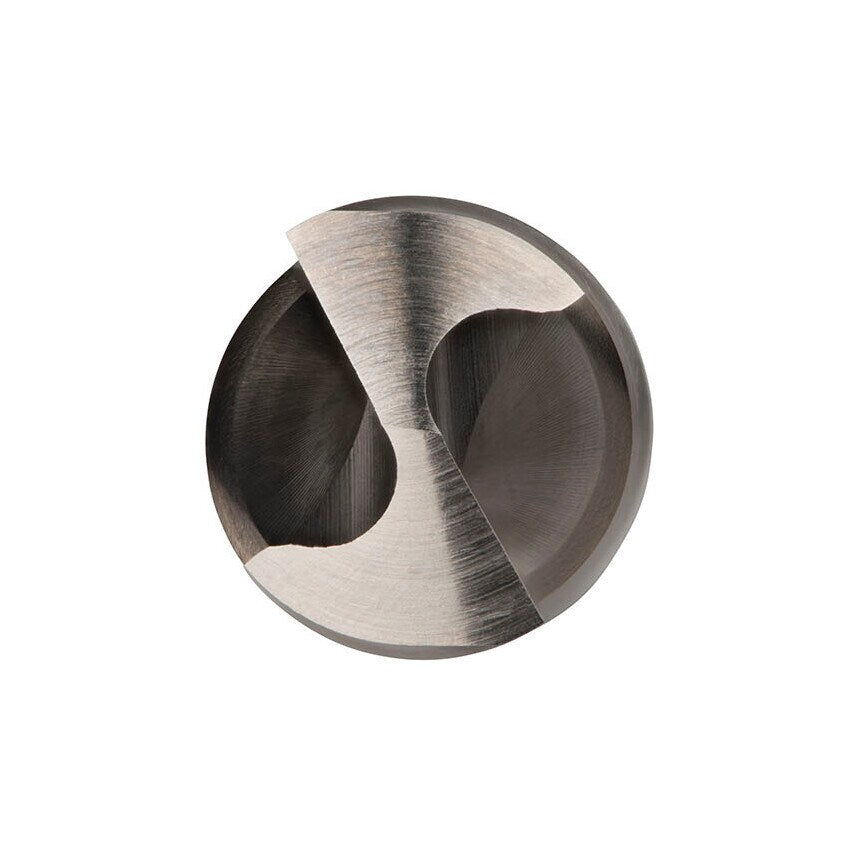

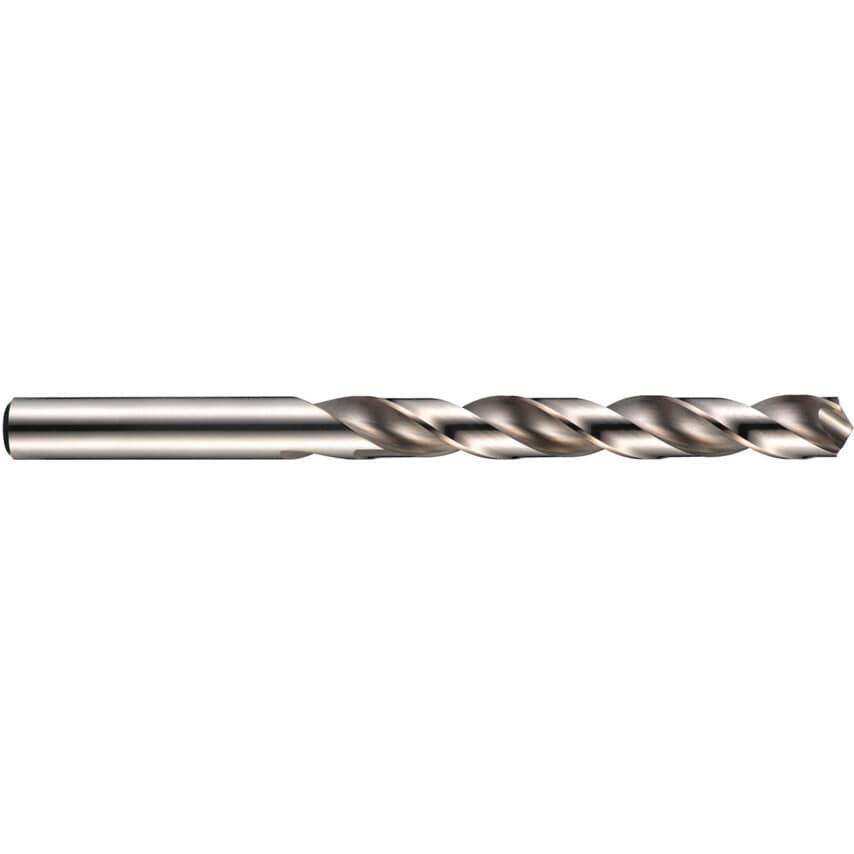

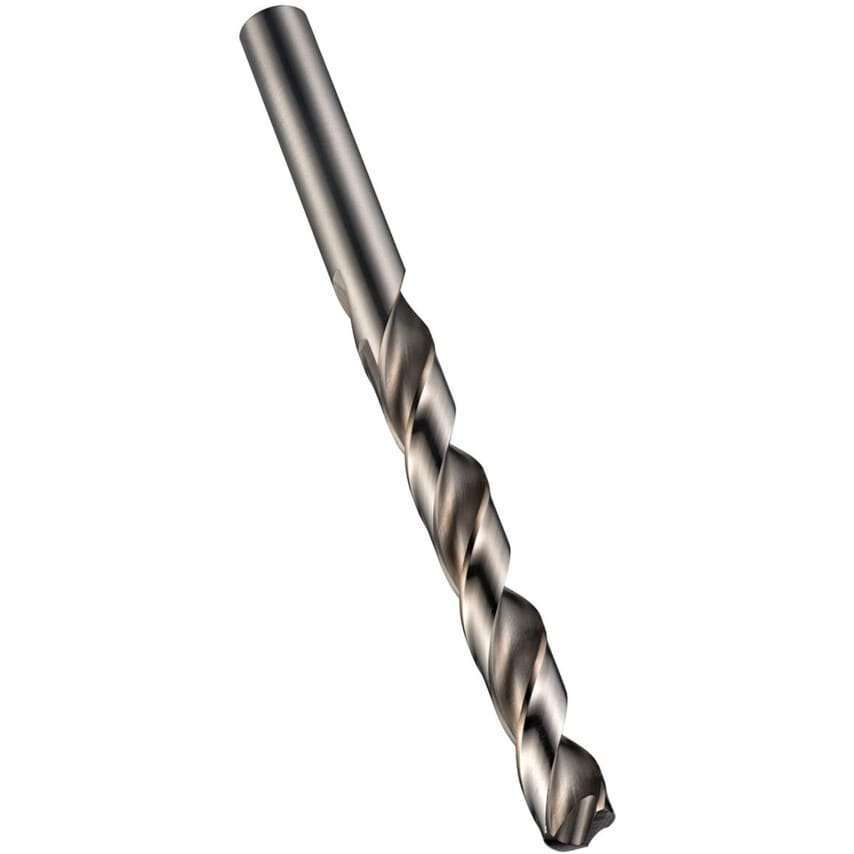

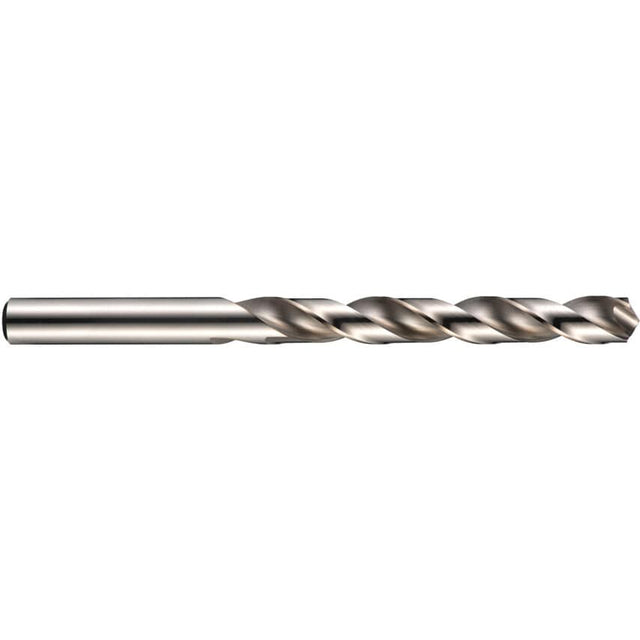

Series A147 HSS-Co straight shank jobber drills are manufactured from high speed steel with cobalt for a harder tool and greater cutting performance.
Features and Benefits
HSS and cobalt construction for greater tool hardness
Point angle: 130 for greater cutting performance
Typical Application
Drilling
Standards
Manufactured to DIN 338
| Series | A147 |
| Point Angle | 130\u00b0 |
| Product Type | Jobber Drills |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Flute Length | 81mm |
| Finish/Coating | Bright |
| Drill Diameter Metric | 9.5mm |
| Standards Met | DIN 338 |
| Drill Diameter Tolerance | H8 |
| Overall Length | 125mm |
| Flute Construction | Ground flutes |
| Material | Cobalt High Speed Steel |
| Flute Type | Spiral |
| MFR Part No. | A1479.5 |
| Size | 9.5mm |
| Helix Type | Normal Helix |
| Shank Type | Straight |
