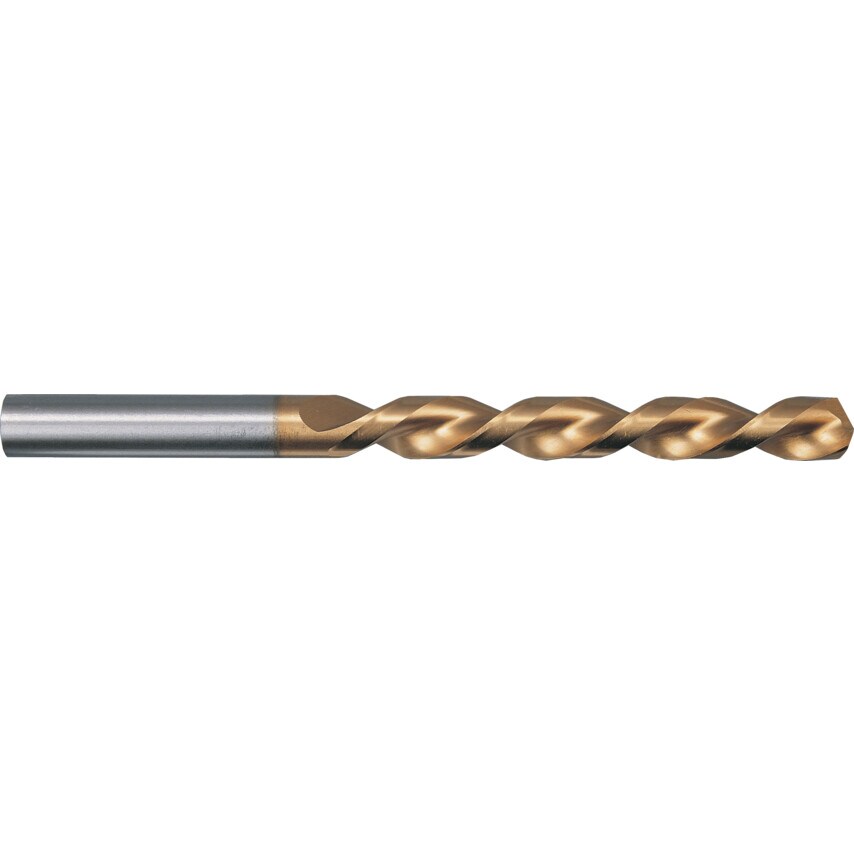

Series 652 HSS High Helix (Parabolic Flute) Straight Shank Jobber Drills
Metric
For drilling in difficult conditions when swarf congestion prevents an adequate flow of coolant. For use in steel and cast iron having a hardness of up to 1000N/mm2. Not recommended for nickel-chrome steels or similar material. Give greater wear resistance and longer tool life than Guhring product number 549 - HSS GT100 right hand jobber drills. Manufactured to DIN388.
| Flute Type | Parabolic |
| Helix Type | High Helix |
| Web Thickness | Form A |
| Coolant Delivery | External |
| Series | 652 |
| Finish/Coating | TiN |
| MFR Part No. | 00652 002.200 |
| Material | HSS |
| Flute Length | 27mm |
| Standards Met | DIN 338 |
| Number of Flutes | 2 |
| Overall Length | 53mm |
| Drill Diameter Tolerance | H8 |
| Cutting Direction | Right Hand |
| Drill Diameter Metric | 2.2mm |
| Flute Construction | Ground flutes |
| Point Angle | 130\u00b0 |
