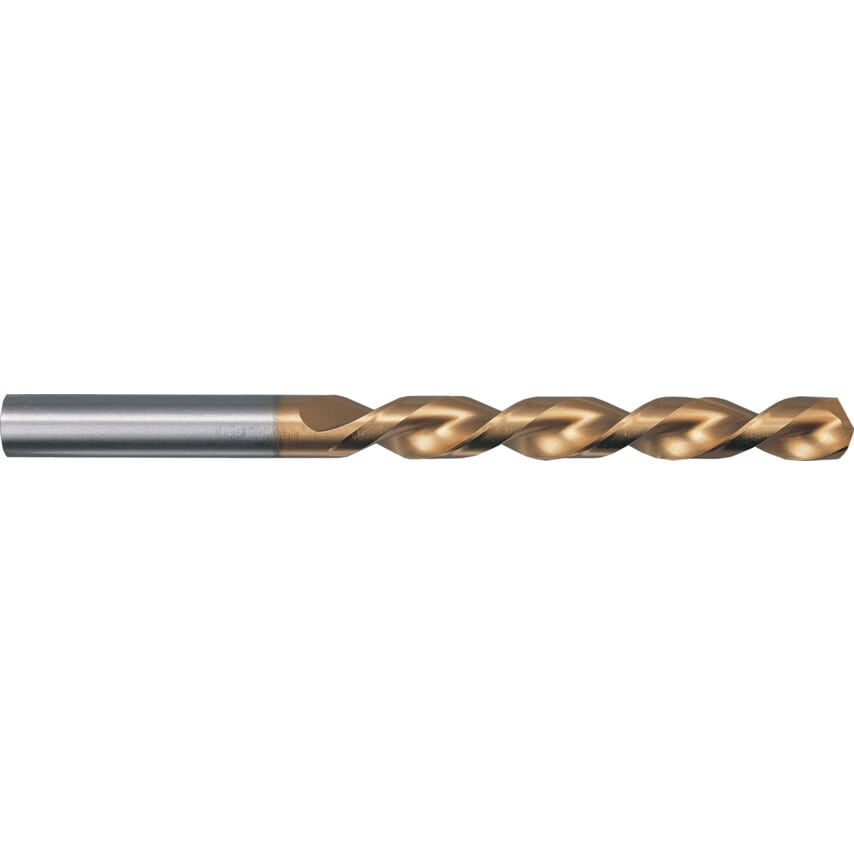

Series 652 HSS High Helix (Parabolic Flute) Straight Shank Jobber Drills
Metric
For drilling in difficult conditions when swarf congestion prevents an adequate flow of coolant. For use in steel and cast iron having a hardness of up to 1000N/mm2. Not recommended for nickel-chrome steels or similar material. Give greater wear resistance and longer tool life than Guhring product number 549 - HSS GT100 right hand jobber drills. Manufactured to DIN388.
| Series | 652 |
| Flute Length | 81mm |
| Standards Met | DIN 338 |
| Drill Diameter Metric | 9.5mm |
| Point Angle | 130\u00b0 |
| Number of Flutes | 2 |
| Helix Type | High Helix |
| Flute Construction | Ground flutes |
| Cutting Direction | Right Hand |
| Finish/Coating | TiN |
| Drill Diameter Tolerance | H8 |
| Material | HSS |
| Web Thickness | Form A |
| Overall Length | 125mm |
| Flute Type | Parabolic |
| MFR Part No. | 00652 009.500 |
| Coolant Delivery | External |
