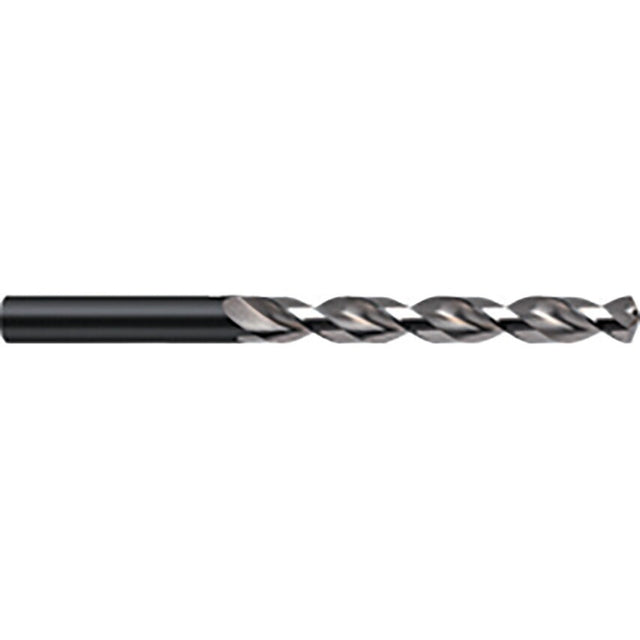

Series 622 HSCo GT100 High Helix (Parabolic Flute) Straight Shank Jobber Drills
Metric
High heat resistant drill with wide chip space. Suitable for drilling alloyed and unalloyed steels and castings with a high tensile strength over 800N/mm2. Particularly suitable for drilling hot and cold rolled steels. Manufactured to BS 328, DIN338RN.
| Flute Type | Parabolic |
| Series | 622 |
| Cutting Direction | Right Hand |
| Helix Type | High Helix |
| MFR Part No. | 00622 005.000 |
| Overall Length | 86mm |
| Shank Diameter Tolerance | H8 |
| Number of Flutes | 2 |
| Material | Cobalt High Speed Steel |
| Drill Diameter Metric | 5mm |
| Drill Diameter Tolerance | H8 |
| Coolant Delivery | External |
| Flute Length | 52mm |
| Standards Met | DIN 338 |
| Flute Construction | Ground flutes |
| Web Thickness | Form A |
| Point Angle | 130\u00b0 |
| Finish/Coating | Bright |
