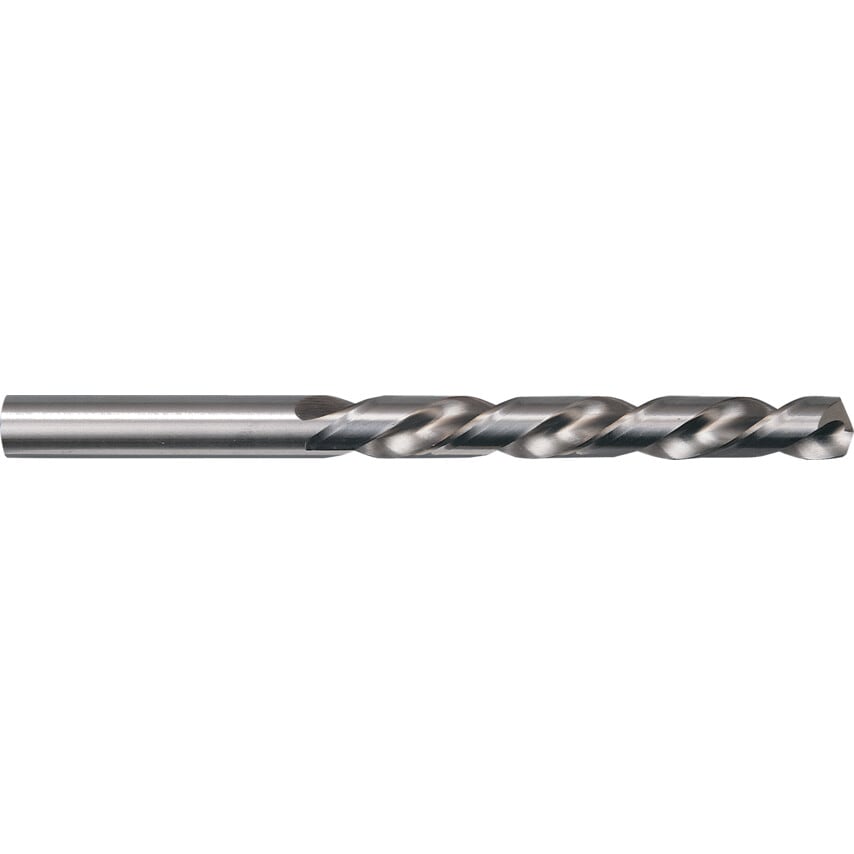

Series 605 HSS-Co Straight Shank Jobber Drills
Bright Finish - Inch
Rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels. Limited suitability for special alloys such as hastaloy, inconel, nimonic etc. Manufactured to DIN338.
Features and Benefits
Rigid HSS and Cobalt construction for strength in challenging applications
High-heat and wear resistance for prolonged tool lifespan
Large helix angle of 35 for greater cutting performance and chip removal
Standards
DIN338
Typical Applications
Titanium
Titanium alloys
Stainless steels
Heat resisting austenitic steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| Drill Diameter | 19/64in |
| Helix Type | High Helix |
| Drill Diameter Tolerance | H8 |
| Number of Flutes | 2 |
| Coolant Delivery | External |
| MFR Part No. | 00605 007.540 |
| Point Angle | 130\u00b0 |
| Flute Construction | Ground flutes |
| Series | 605 |
| Flute Length | 75mm |
| Finish/Coating | Uncoated |
| Point Type | Split Point |
| Material | Cobalt High Speed Steel |
| Overall Length | 117mm |
| Standards Met | DIN 338 |
| Cutting Direction | Right Hand |
